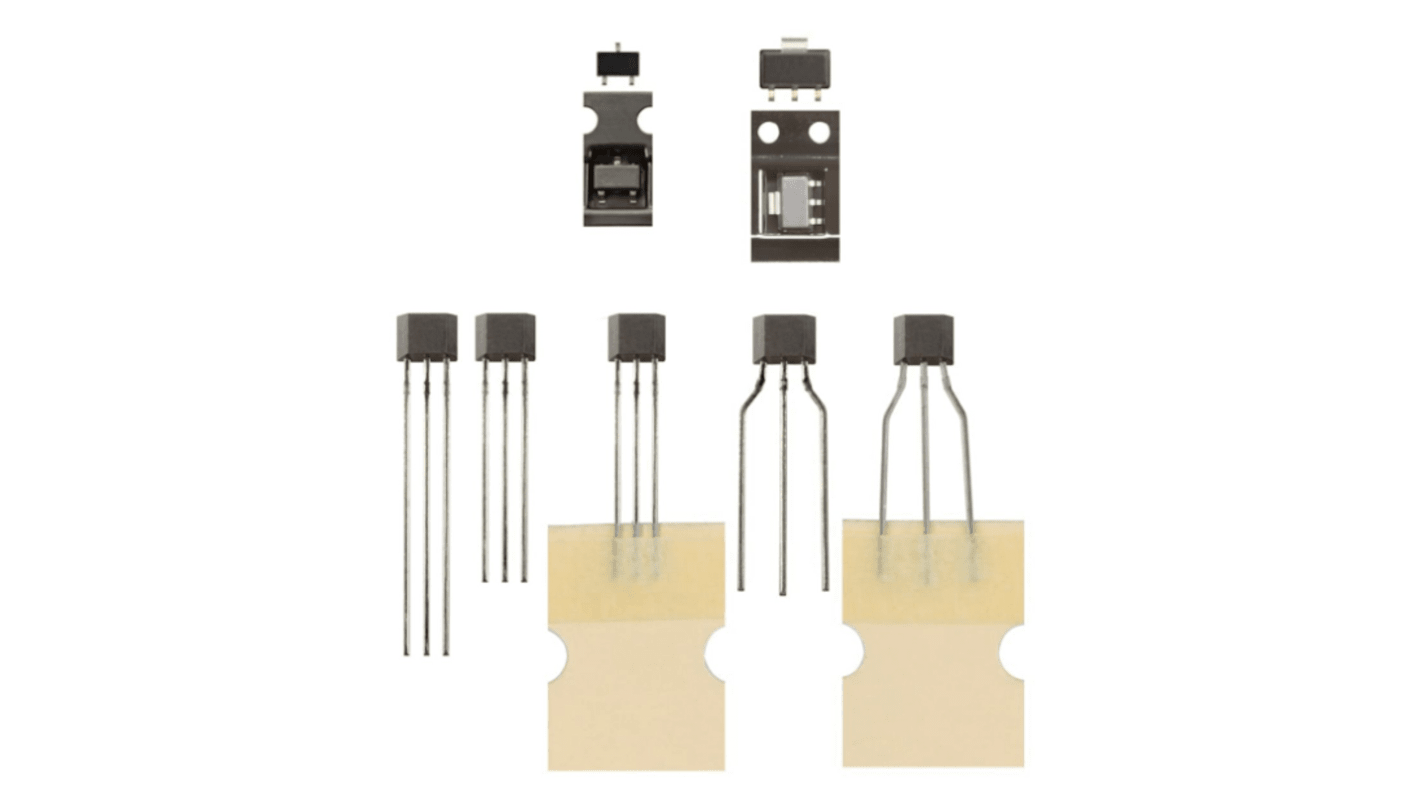

Honeywell Technologies Surface Hall Effect Sensor 2.7 V 6.5V, SOT-23, 3-Pin

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
포장 옵션
RS 제품 번호:
236-2741
제조사 부품 번호:
SS39ET
제조업체:
Honeywell Technologies
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Honeywell Technologies

Product Type

Hall Effect Sensor

Sensor Type

Magnetic

Technology

Hall Effect

Mount Type

Surface

Magnetic Type

Analogue

Minimum Supply Voltage

2.7V

Package Type

SOT-23

Maximum Supply Voltage

6.5V

Minimum Operating Temperature

-40°C

Sensitivity

1.75mV/g

Maximum Operating Temperature

100°C

Pin Count

3

Height

1.4mm

Standards/Approvals

No

Width

2.8mm

Length

2.90mm

Series

SS

Automotive Standard

No

Response Time

3s

Supply Current

10mA

COO (Country of Origin):
CN

Honeywell Series SS Hall Effect Sensor, 1.75mV/g Sensitivity, 2.7 to 6.5V Supply Voltage - SS39ET


This Hall effect sensor is a magnetic analogue detector designed for surface-mounted electronics operating across a moderate temperature span. It measures magnetic fields with sensitivity suited to position or motion sensing while running from a low-voltage supply. The device is intended for Compact assemblies where a three-pin SOT-23 package and low quiescent current are important.

Features and Benefits:


• 1.75mV/g sensitivity delivers fine analogue magnetic resolution
• 2.7 to 6.5V supply range enables flexible voltage sourcing
• 10mA supply current reduces power draw in battery systems
• 3s response time supports steady-state position readings
• Surface-mount SOT-23 3-pin package eases automated PCB assembly

Applications


• Suitable for analogue position sensing in Compact devices
• Ideal for low-power magnetic detection in portable equipment
• Used with small motor controllers for rotor position feedback
• Can be used for proximity detection on space-limited PCBs
• Suitable for magnetic-field monitoring in industrial sensors

What package facilitates automated pick-and-place assembly?


It is supplied in a SOT-23 three-pin surface-mount package suitable for standard automated assembly.

What temperature range can it tolerate during operation?


It operates over a range from -40°C up to 100°C.

How many pins are available for connection and what is the supply current?


The device provides three connection pins and draws 10mA supply current.

What are the physical dimensions relevant for PCB footprint planning?


The component measures 2.90mm length, 2.8mm width and 1.4mm height.

What type of sensing output does it provide and for what purpose is that suited?


It provides an analogue magnetic signal suitable for position and motion sensing.
