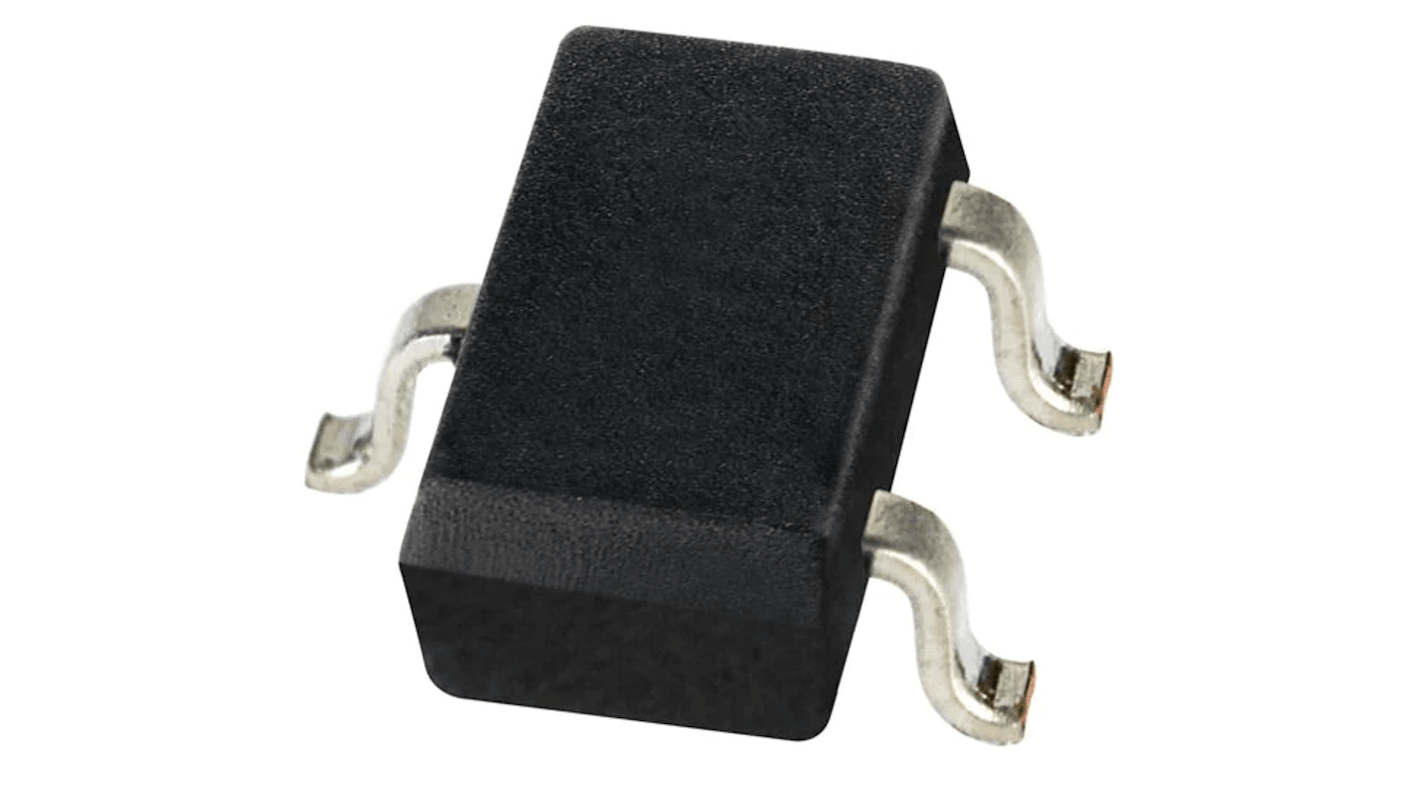

Honeywell Technologies Surface Hall Effect Sensor 3 V 24V, SOT-23, 3-Pin

RS 제품 번호:: 236-2722
제조사 부품 번호:: SM351RT
제조업체:: Honeywell Technologies

Honeywell Technologies Surface Hall Effect Sensor 3 V 24V, SOT-23, 3-Pin

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 받기

50개 더 담고 ₩1,400.00 할인 받기

View bulk pricing options

Subtotal (1 pack of 5 units)*

₩8,900.00

제한된 재고

추가로 2026년 11월 09일 부터 990 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*	절감
5 - 45	₩1,780.00	₩8,900.00	-
50 - 95	₩1,752.00	₩8,760.00	₩1,400.00
100 - 245	₩1,720.00	₩8,600.00	₩6,000.00
250 - 995	₩1,688.00	₩8,440.00	₩23,000.00
1000 +	₩1,636.00	₩8,180.00	₩144,000.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 236-2722
제조사 부품 번호:: SM351RT
제조업체:: Honeywell Technologies

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Honeywell Technologies
	Product Type	Hall Effect Sensor
	Sensor Type	Position Sensor
	Technology	Magneto Resistive
	Mount Type	Surface
	Magnetic Type	Omnipolar
	Minimum Supply Voltage	3V
	Package Type	SOT-23
	Maximum Supply Voltage	24V
	Sensitivity	11Gauss
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Pin Count	3
	Height	1.6mm
	Series	SM
	Standards/Approvals	RoHS-compliant
	Width	2.8mm
	Length	2.9mm
	Supply Current	5mA
	Response Time	10μs
	Automotive Standard	No

	모두 선택
	브랜드 Honeywell Technologies
	Product Type Hall Effect Sensor
	Sensor Type Position Sensor
	Technology Magneto Resistive
	Mount Type Surface
	Magnetic Type Omnipolar
	Minimum Supply Voltage 3V
	Package Type SOT-23
	Maximum Supply Voltage 24V
	Sensitivity 11Gauss
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Pin Count 3
	Height 1.6mm
	Series SM
	Standards/Approvals RoHS-compliant
	Width 2.8mm
	Length 2.9mm
	Supply Current 5mA
	Response Time 10μs
	Automotive Standard No

COO (Country of Origin):: CN

Honeywell Series SM Hall Effect Sensor, 3V Minimum Supply Voltage, 24V Maximum Supply Voltage - SM351RT

This hall effect sensor is a compact, surface-mount position sensor that detects magnetic fields for position sensing in electronic assemblies. It operates across a wide supply range suitable for varied low-voltage systems and is built for continuous use within a specified ambient temperature span. The device uses magnetoresistive technology and is supplied in a SOT-23 package for board-level integration.

Features and Benefits:

• Low supply consumption of 5mA reduces system power draw
• Fast 10μs response enables Rapid position detection
• Omnipolar magnetic sensing allows flexible orientation detection
• High sensitivity of 11 gauss improves detection of weak fields
• RoHS-compliant construction supports lead-free assembly processes

Applications

• Suitable for Compact position feedback in motor controllers
• Ideal for non-contact switch detection in consumer devices
• Used with low-voltage control circuits from 3V to 24V
• Can be used for rotational position sensing in small actuators
• Suitable for space-constrained surface-mount assemblies

What mounting style does it require?

It is intended for surface mounting on PCBs and comes in a SOT-23 package.

What environmental temperatures can it tolerate?

It is rated to operate down to -40°C and up to 85°C.

How many electrical connections are provided?

There are three pins for power, ground and signal output.

What is the device height for enclosure planning?

The vertical profile measures 1.6 mm for clearance calculations.

Does it conform to automotive standards?

It is not specified for automotive-grade standards but is RoHS-compliant.
