Silicon Labs 1-Axis Surface Magnetic Position Sensor 1.71 V 5.5 V, SOT-23, 3-Pin
- RS 제품 번호:
- 196-1375
- 제조사 부품 번호:
- SI7201-B-22-IV
- 제조업체:
- Silicon Labs

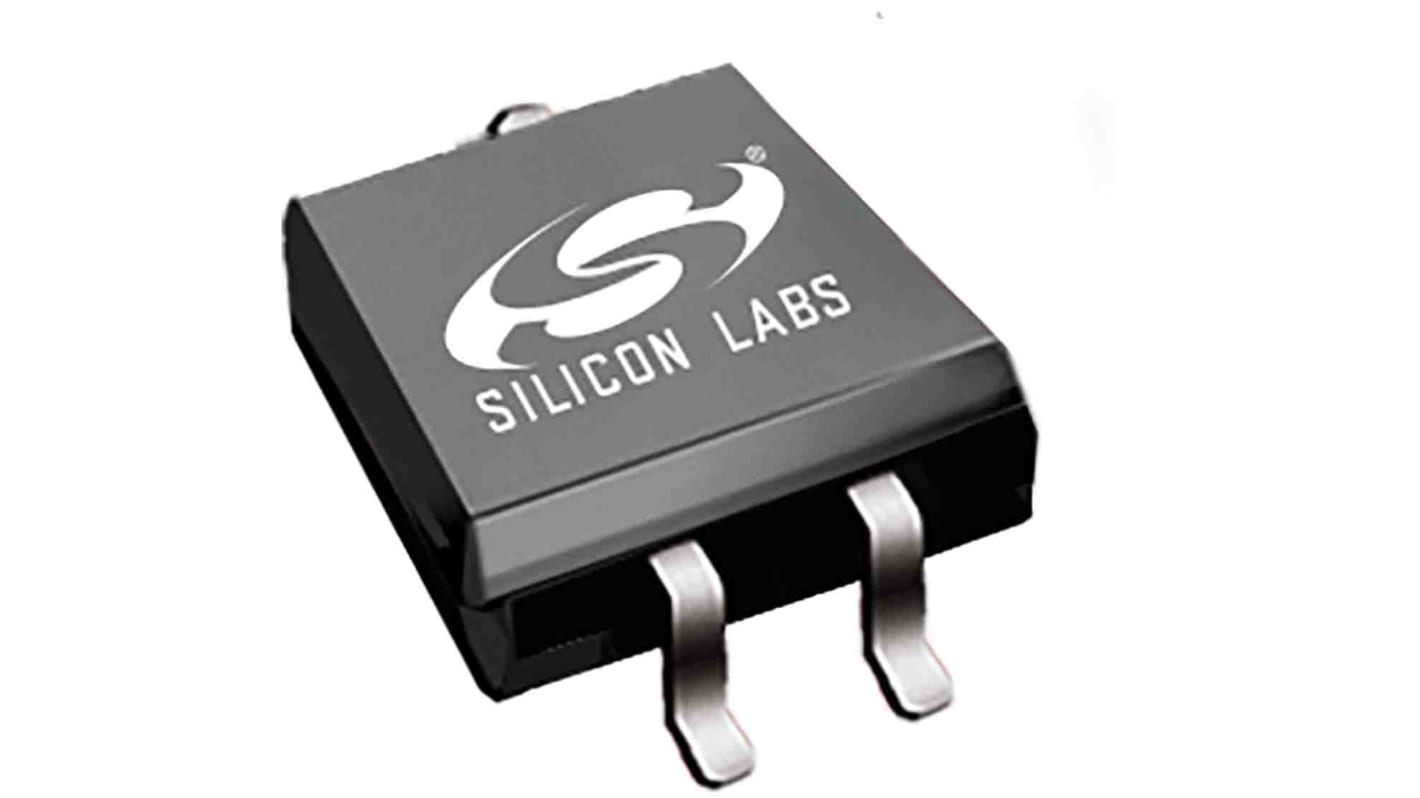

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 25 units)*
₩26,414.00
마지막 RS 재고
- 최종적인 375 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 25 - 50 | ₩1,056.56 | ₩26,395.20 |
| 75 - 125 | ₩1,032.12 | ₩25,812.40 |
| 150 + | ₩1,011.44 | ₩25,267.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 196-1375
- 제조사 부품 번호:
- SI7201-B-22-IV
- 제조업체:
- Silicon Labs
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Silicon Labs | |
| Product Type | Magnetic Position Sensor | |
| Sensor Type | Hall Effect Sensors | |
| Number of Axis | 1 | |
| Technology | CMOS | |
| Mount Type | Surface | |
| Magnetic Type | Latch | |
| Maximum Frequency Response | 113000Hz | |
| Minimum Frequency Response | 5Hz | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | SOT-23 | |
| Minimum Operating Temperature | -40°C | |
| Sensitivity | 1.1mT | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 125°C | |
| Series | Si720X | |
| Width | 1.6 mm | |
| Height | 1.15mm | |
| Length | 2.75mm | |
| Standards/Approvals | No | |
| Response Time | 8.8μs | |
| Supply Current | 0.4μA | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Silicon Labs | ||
Product Type Magnetic Position Sensor | ||
Sensor Type Hall Effect Sensors | ||
Number of Axis 1 | ||
Technology CMOS | ||
Mount Type Surface | ||
Magnetic Type Latch | ||
Maximum Frequency Response 113000Hz | ||
Minimum Frequency Response 5Hz | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 5.5V | ||
Package Type SOT-23 | ||
Minimum Operating Temperature -40°C | ||
Sensitivity 1.1mT | ||
Pin Count 3 | ||
Maximum Operating Temperature 125°C | ||
Series Si720X | ||
Width 1.6 mm | ||
Height 1.15mm | ||
Length 2.75mm | ||
Standards/Approvals No | ||
Response Time 8.8μs | ||
Supply Current 0.4μA | ||
Automotive Standard AEC-Q100 | ||
The Si7201-22-IV , Omnipolar Switch Magnetic Sensor is designed to simplify magnetic switch/latch needs. The low power and high sensitivity of this device make it ideally suited for many applications. The Si7201-22-IV supports a wide temperature range of -40 to +125 °C.
Applications:
Replacement of reed switches in consumer, and security applications
Position sensing of HVAC knob, door locks, windows, and other mechanical devices
BLDC motor control
Camera image stabilization, zoom, and autofocus
Fluid level sensing
Control knobs and selector switches
General-purpose mechanical position sensing
