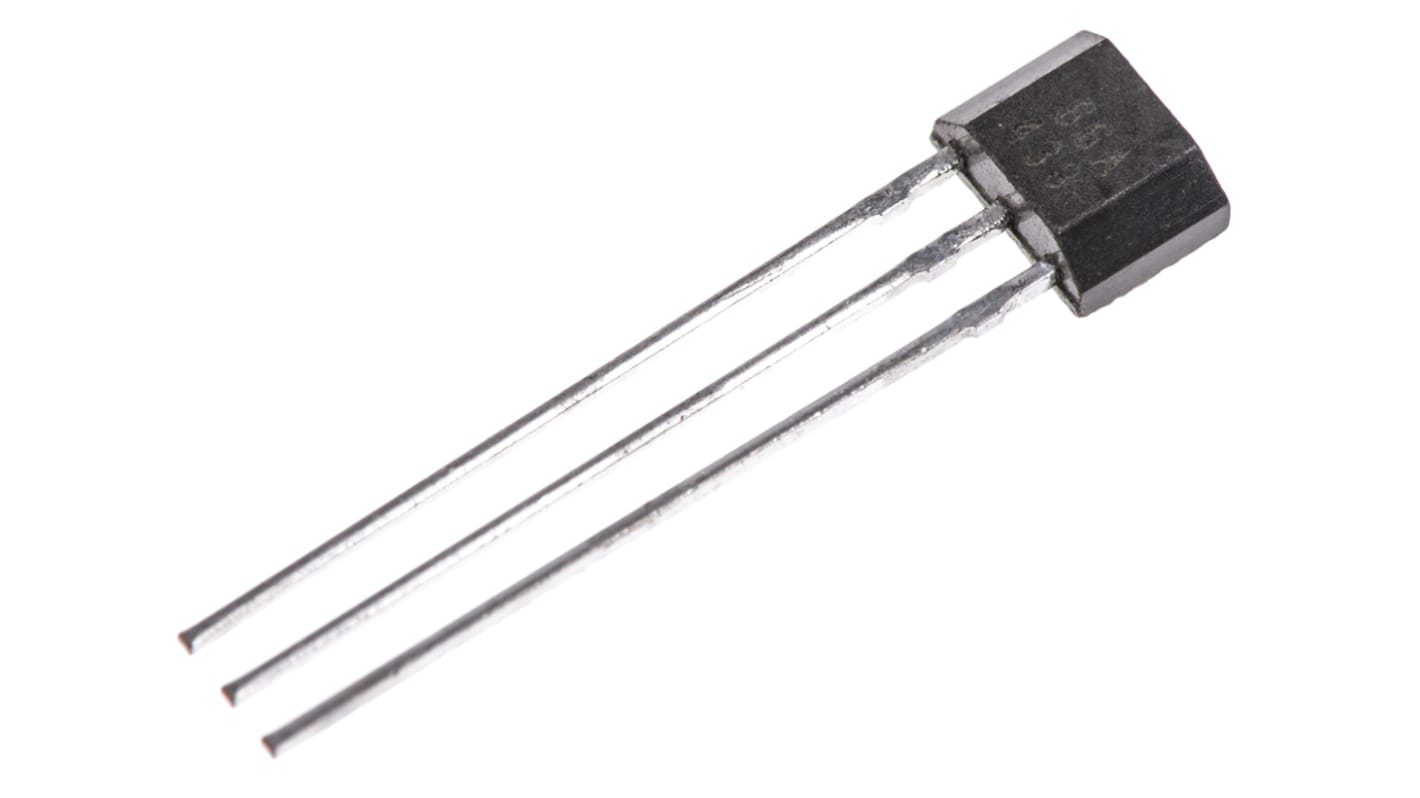

Honeywell Through Hole Digital Position Sensor 3.8 V 30V, IC, TO-92, 3-Pin

RS 제품 번호:: 181-1457
제조사 부품 번호:: SS466A
제조업체:: Honeywell

Honeywell Through Hole Digital Position Sensor 3.8 V 30V, IC, TO-92, 3-Pin

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩6,903.00

3 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 1249	₩6,903.00
1250 - 2499	₩6,766.50
2500 +	₩6,571.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 181-1457
제조사 부품 번호:: SS466A
제조업체:: Honeywell

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Honeywell
	Sensor Type	Hall Effect Sensors
	Product Type	Digital Position Sensor
	Technology	Digital
	Mount Type	Through Hole
	Magnetic Type	Latch
	Interface Type	IC
	Minimum Supply Voltage	3.8V
	Package Type	TO-92
	Maximum Supply Voltage	30V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Pin Count	3
	Standards/Approvals	No
	Height	3mm
	Length	4.06mm
	Series	SS400
	Width	1.57mm
	Supply Current	10mA
	Automotive Standard	No

	모두 선택
	브랜드 Honeywell
	Sensor Type Hall Effect Sensors
	Product Type Digital Position Sensor
	Technology Digital
	Mount Type Through Hole
	Magnetic Type Latch
	Interface Type IC
	Minimum Supply Voltage 3.8V
	Package Type TO-92
	Maximum Supply Voltage 30V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Pin Count 3
	Standards/Approvals No
	Height 3mm
	Length 4.06mm
	Series SS400
	Width 1.57mm
	Supply Current 10mA
	Automotive Standard No

Honeywell SS400 Series Digital Position Sensor, 150°C Maximum Operating Temperature, 3.8V Minimum Supply Voltage - SS466A

This digital position sensor provides contactless magnetic detection for position sensing in electronic and electromechanical systems. It operates as a digital Hall-effect latch device compatible with common low-voltage control circuits and is presented in a Compact TO-92 package for surface-mounted applications on assemblies requiring discrete three-pin sensors.

Features and Benefits:

• Operates from 3.8V-30V supply enabling wide-voltage compatibility • Latch magnetic operation offers stable binary position output • Supply current 20mA minimises drive requirements in control loops • Rated to 150°C maximum temperature for high-temperature environments • Surface-mount TO-92 package ensures straightforward PCB placement

Applications

• Suitable for end-of-travel detection in industrial actuators • Ideal for position feedback in motor-control assemblies • Used for proximity switching in automation equipment • Can be used for magnetic sensing in instrumentation panels

What type of output behaviour does it provide when exposed to a magnetic field?

It uses a latch-style Hall-effect mechanism, switching its digital output state when the magnetic threshold is crossed and maintaining that state until an opposing magnetic field resets it.

What mounting approach is required on a printed circuit board?

The device is supplied in a TO-92 package with three pins designed for surface mounting, requiring a footprint accommodating through-hole-style lead spacing on a PCB adapted for surface placement.

What environmental temperature range can it tolerate during operation?

The sensor is specified to operate down to -40°C and up to 150°C, allowing deployment in both low-temperature and elevated-temperature industrial settings.

How many electrical connections are necessary and what Interface does it use?

It requires three electrical pins and communicates as a digital Interface compatible with IC-level logic.
