Silicon Labs 1-Axis Surface Hall Effect Sensor 2.25 V 5.5 V, PWM, Analogue, SENT, SOT-23, 3-Pin
- RS 제품 번호:
- 144-6546
- 제조사 부품 번호:
- Si7211-B-00-IVR
- 제조업체:
- Silicon Labs

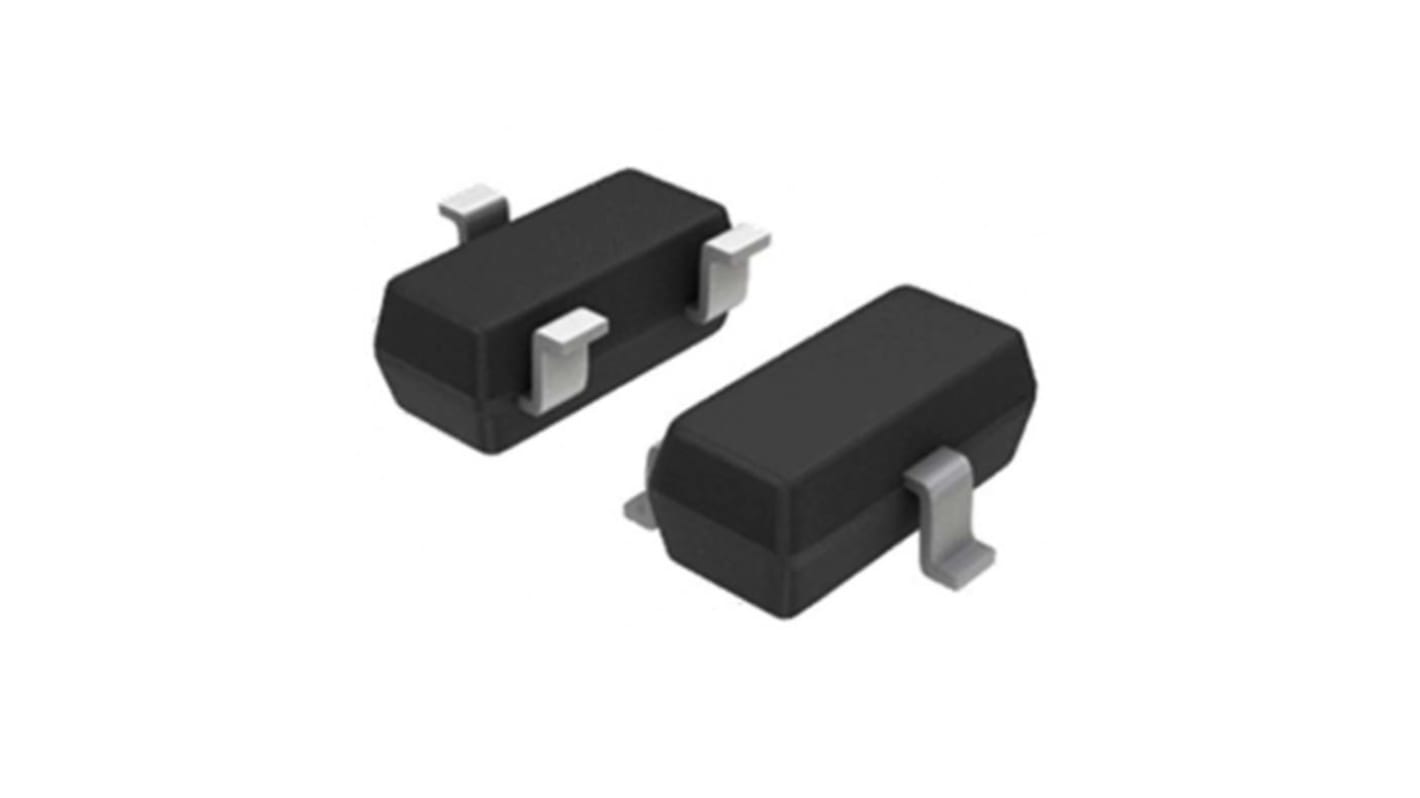

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩9,381.20
재고있음
- 25 개 단위 배송 준비 완료
- 추가로 2026년 1월 05일 부터 1,920 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 745 | ₩1,876.24 | ₩9,381.20 |
| 750 - 1495 | ₩1,831.12 | ₩9,155.60 |
| 1500 + | ₩1,782.24 | ₩8,911.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 144-6546
- 제조사 부품 번호:
- Si7211-B-00-IVR
- 제조업체:
- Silicon Labs
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Silicon Labs | |
| Product Type | Hall Effect Sensor | |
| Sensor Type | Hall Effect | |
| Number of Axis | 1 | |
| Technology | CMOS | |
| Mount Type | Surface | |
| Interface Type | PWM, Analogue, SENT | |
| Magnetic Type | Analogue | |
| Maximum Frequency Response | 7kHz | |
| Minimum Frequency Response | 10Hz | |
| Minimum Supply Voltage | 2.25V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | SOT-23 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Pin Count | 3 | |
| Height | 1.15mm | |
| Standards/Approvals | AEC-Q100 | |
| Series | Si721X | |
| Width | 1.6 mm | |
| Length | 2.9mm | |
| Response Time | 8.8μs | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 9mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Silicon Labs | ||
Product Type Hall Effect Sensor | ||
Sensor Type Hall Effect | ||
Number of Axis 1 | ||
Technology CMOS | ||
Mount Type Surface | ||
Interface Type PWM, Analogue, SENT | ||
Magnetic Type Analogue | ||
Maximum Frequency Response 7kHz | ||
Minimum Frequency Response 10Hz | ||
Minimum Supply Voltage 2.25V | ||
Maximum Supply Voltage 5.5V | ||
Package Type SOT-23 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Pin Count 3 | ||
Height 1.15mm | ||
Standards/Approvals AEC-Q100 | ||
Series Si721X | ||
Width 1.6 mm | ||
Length 2.9mm | ||
Response Time 8.8μs | ||
Automotive Standard AEC-Q100 | ||
Supply Current 9mA | ||
Si721x Series Hall Effect Field Output Sensors
A range of Hall-effect magnetic sensors from Silicon Labs featuring chopper-stabilized Hall elements, low-noise amplifiers and 13-bit ADCs which provide a linear outputs proportional to magnetic field strength. The Si721x series are available with analogue, PWM or SENT (Single Edge Nibble Transmission) outputs. Typical applications include mechanical position sensing in consumer, industrial and automotive applications, Camera image stabilization, zoom, and autofocus functions, sensing of control knobs and selector switches.
• Industry-leading sensitivity allows use with larger Air gaps and smaller magnets
• Precise compensation for temperature and offset drift.
• Low power consumption to improve operating life in battery powered applications
• Low voltage (1.7-5.5V) and High voltage (3.3-26.5V) versions
• Compact 3 or 5-pin SOT23 package
• AEC-Q100 Qualified for automotive applications
Hall Effect Sensors, Silicon Labs
