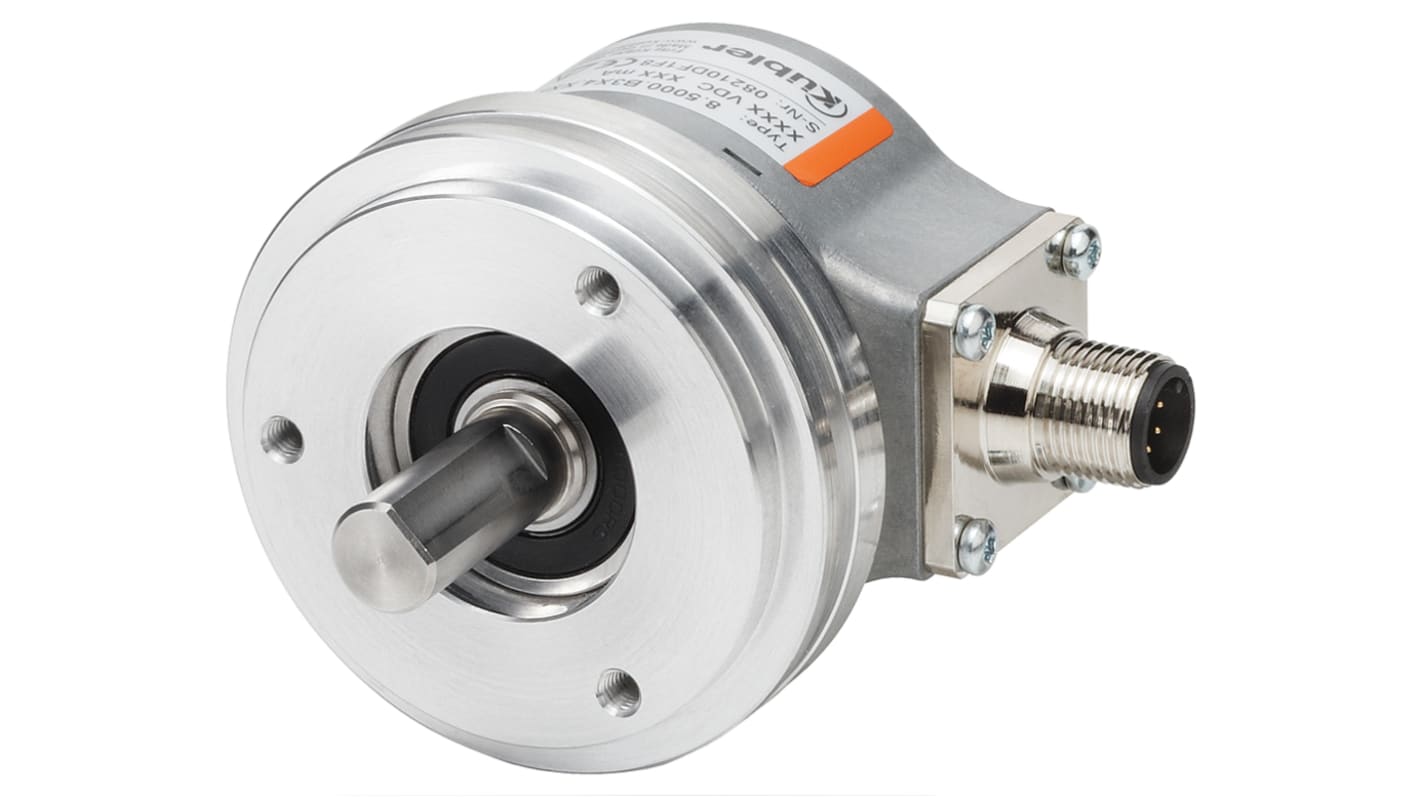

Kübler Incremental Incremental Encoder, 1024 ppr, Push Pull Signal, Solid Type, 6mm Shaft
- RS 제품 번호:
- 860-2720
- 제조사 부품 번호:
- 8.5000.B157.1024
- 제조업체:
- Kübler
3 <재고있음> 5-9영업일내 홍콩 발송
단가 개당
₩491,746.566
수량 | 한팩당 |
|---|---|
| 1 + | ₩491,746.566 |
- RS 제품 번호:
- 860-2720
- 제조사 부품 번호:
- 8.5000.B157.1024
- 제조업체:
- Kübler
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
Sendix 5000 / 5020 (Shaft / Hollow Shaft)
Sendix 5000 and 5020 offer high resistance against vibration and installation errors. The rugged housing, high protection level of up to IP67, and a wide temperature range, make this encoder suitable for all applications.
Safety-Lock™ Design
High rotational speed
Shaft and hollow shaft versions
High shaft load capacity
Shock and vibration resistant
Magnetic field proof
Short-circuit proof
Optical sensor
Reverse polarity protection
High rotational speed
Shaft and hollow shaft versions
High shaft load capacity
Shock and vibration resistant
Magnetic field proof
Short-circuit proof
Optical sensor
Reverse polarity protection
Kubler
Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation
Short circuit protection
Age and temperature compensation
사양
속성 | 값 |
|---|---|
| Encoder Technology | Incremental |
| Pulses Per Revolution | 1024 |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | Push Pull |
| Shaft Type | Solid |
| Supply Voltage | 10 → 30 V dc |
| Shaft Diameter | 6mm |
| IP Rating | IP65 |
| Overall Height | 71.4mm |
| Overall Width | 50.8mm |
| Overall Depth | 64mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Switching Frequency | 300 kHz |
