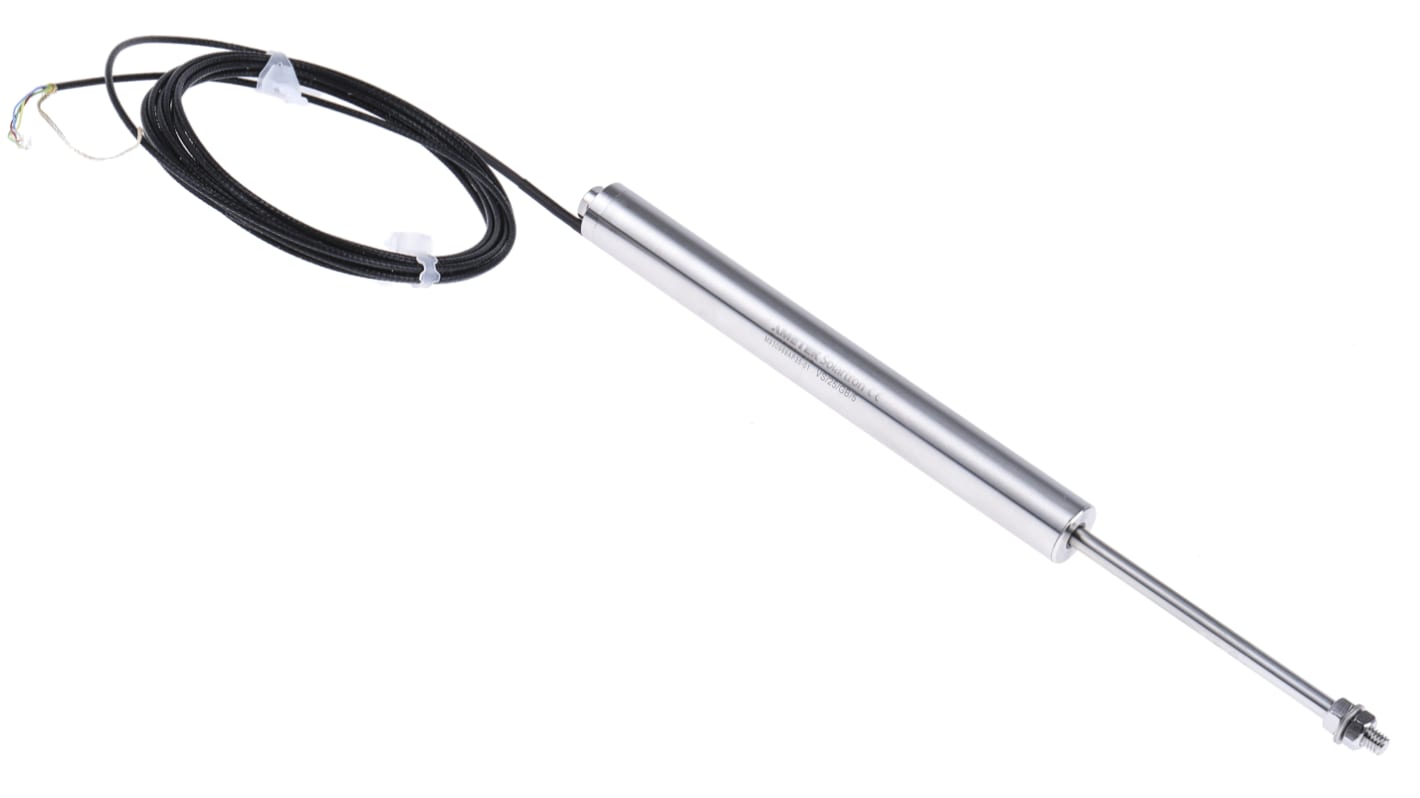

Solartron S Series Displacement Transducers

Solartron S Series displacement sensors feature a stainless steel body and IP67

sealing coupled with polymer bearings and 6 mm diameter carriers. The transducers keep working accurately and reliably even in wet and corrosive environments.

Features and Benefits

<0.2% Linearity

Analogue, DC and 4-20mA versions

19 mm diameter stainless steel body

IP67 rated

Excellent measuring range for the body length

Multiple output options with integrated electronics

Large bore to core clearance for ease of installation

Excellent magnetic shielding

Absolute Positioning

Note

RS stock number 7271329 is AC and stock number 7271341 is a DC version

Linear Variable Differential Transformers (LVDT)

These devices comprise a movable nickel iron core and three coils - one for energisation and two for pick-up. They need to be driven by a sine wave to produce an output amplitude and phase directly proportional to the position of the core with respect to the pick-up coils. A phase sensitive detector is required to demodulate the output signal. The main advantages of LVDTs are;

No wear problems as with potentiometers
Infinite resolution, high accuracy and linearity
No friction introduced into the measured system
Available in ranges from ±1mm to ±50mm

Note

RS LVDT's datasheet Stock No. 232-4049 is available on request.

수량	한팩당
1 - 5	₩1,113,636.80
6 +	₩1,047,028.40

모두 선택	제품 정보	값
	브랜드	Solartron Metrology
	Stroke	±25mm
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+65°C

	모두 선택
	브랜드 Solartron Metrology
	Stroke ±25mm
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature +65°C
