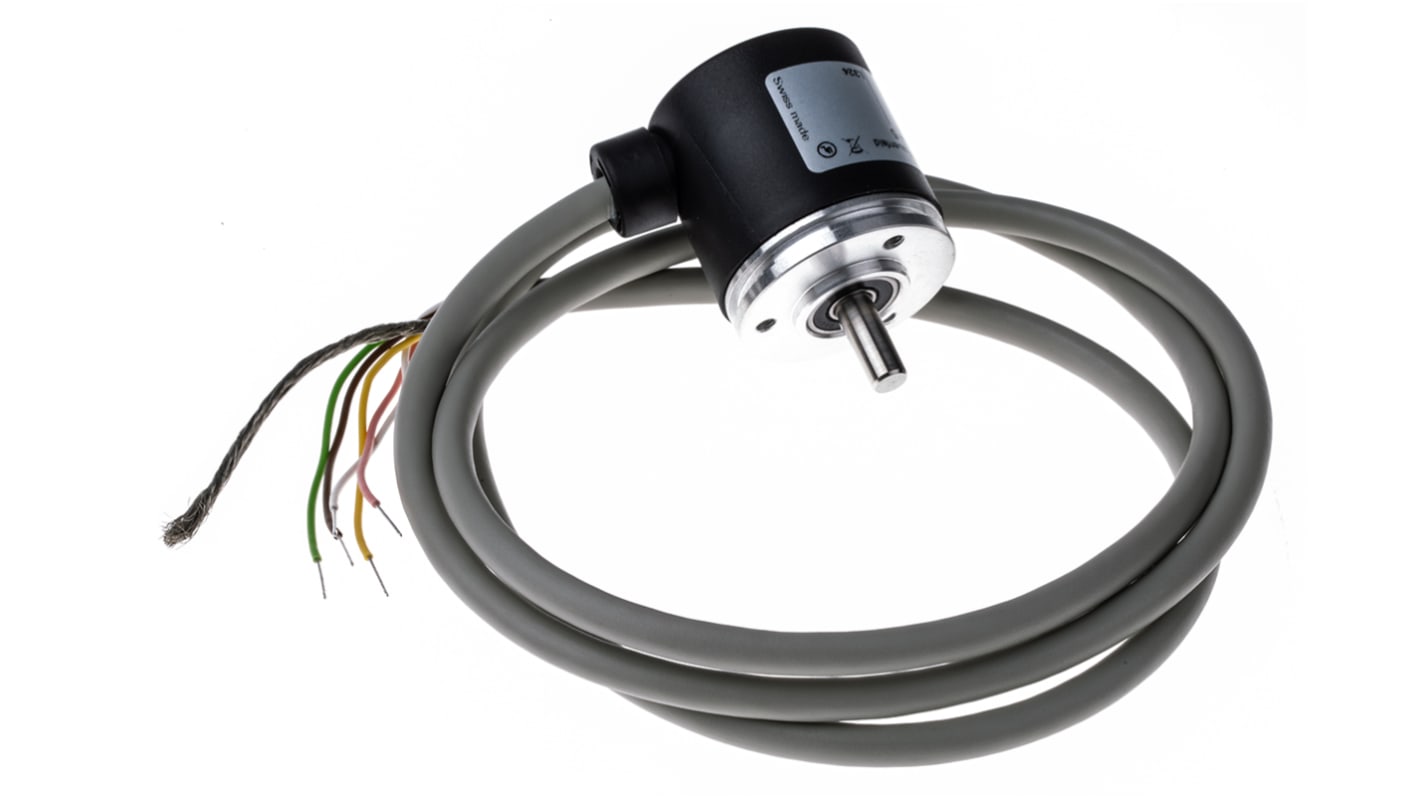

Baumer BDK Series Optical Incremental Encoder 30V dc, 100 ppr ppr, HTL/Push Pull Signal, Solid Type, 5 mm Shaft
- RS 제품 번호:
- 498-1802
- Distrelec 제품 번호:
- 304-00-768
- 제조사 부품 번호:
- BDK 16.24K100-L5-5
- 제조업체:
- Baumer
Subtotal (1 unit)*
₩650,880.00
재고있음
- 추가로 2026년 9월 08일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩650,880.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 498-1802
- Distrelec 제품 번호:
- 304-00-768
- 제조사 부품 번호:
- BDK 16.24K100-L5-5
- 제조업체:
- Baumer
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Baumer | |
| Product Type | Incremental Encoder | |
| Encoder Technology | Optical | |
| Pulses Per Revolution | 100ppr | |
| Series | BDK | |
| Maximum Revolutions | 6000rpm | |
| Output Signal Type | HTL/Push Pull | |
| Shaft Type | Solid | |
| Shaft Diameter | 5mm | |
| Interface Type | TTL | |
| IP Rating | IP64 | |
| Terminal Type | 1 m Cable | |
| Maximum Supply Voltage | 30V dc | |
| Minimum Operating Temperature | -20°C | |
| Overall Depth | 34mm | |
| Overall Width | 30mm | |
| Standards/Approvals | UL | |
| Maximum Operating Temperature | 85°C | |
| Mount Type | Synchro Flange Mount | |
| Switching Frequency | 100kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Baumer | ||
Product Type Incremental Encoder | ||
Encoder Technology Optical | ||
Pulses Per Revolution 100ppr | ||
Series BDK | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type HTL/Push Pull | ||
Shaft Type Solid | ||
Shaft Diameter 5mm | ||
Interface Type TTL | ||
IP Rating IP64 | ||
Terminal Type 1 m Cable | ||
Maximum Supply Voltage 30V dc | ||
Minimum Operating Temperature -20°C | ||
Overall Depth 34mm | ||
Overall Width 30mm | ||
Standards/Approvals UL | ||
Maximum Operating Temperature 85°C | ||
Mount Type Synchro Flange Mount | ||
Switching Frequency 100kHz | ||
- COO (Country of Origin):
- CH
BDK series mini encoders
Range of economic miniature encoders with radial cable connector, 1 m.
Additional versions output circuit, sine, TTL and push-pull.
Plastic housing with aluminium flange.
Centring shoulder.
Low-profile mount.
Cable output.
Kubler
Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation
