Gefran Linear Measuring Linear Transducer
- RS 제품 번호:
- 390-8064
- 제조사 부품 번호:
- PZ-34-A-050 0000X000X00
- 제조업체:
- Gefran
3 <재고있음> 5-9영업일내 홍콩 발송
31 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩403,207.449
| 수량 | 한팩당 |
| 1 - 9 | ₩403,207.449 |
| 10 - 49 | ₩387,079.634 |
| 50 + | ₩370,950.094 |
- RS 제품 번호:
- 390-8064
- 제조사 부품 번호:
- PZ-34-A-050 0000X000X00
- 제조업체:
- Gefran
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- IT
제품 세부 사항

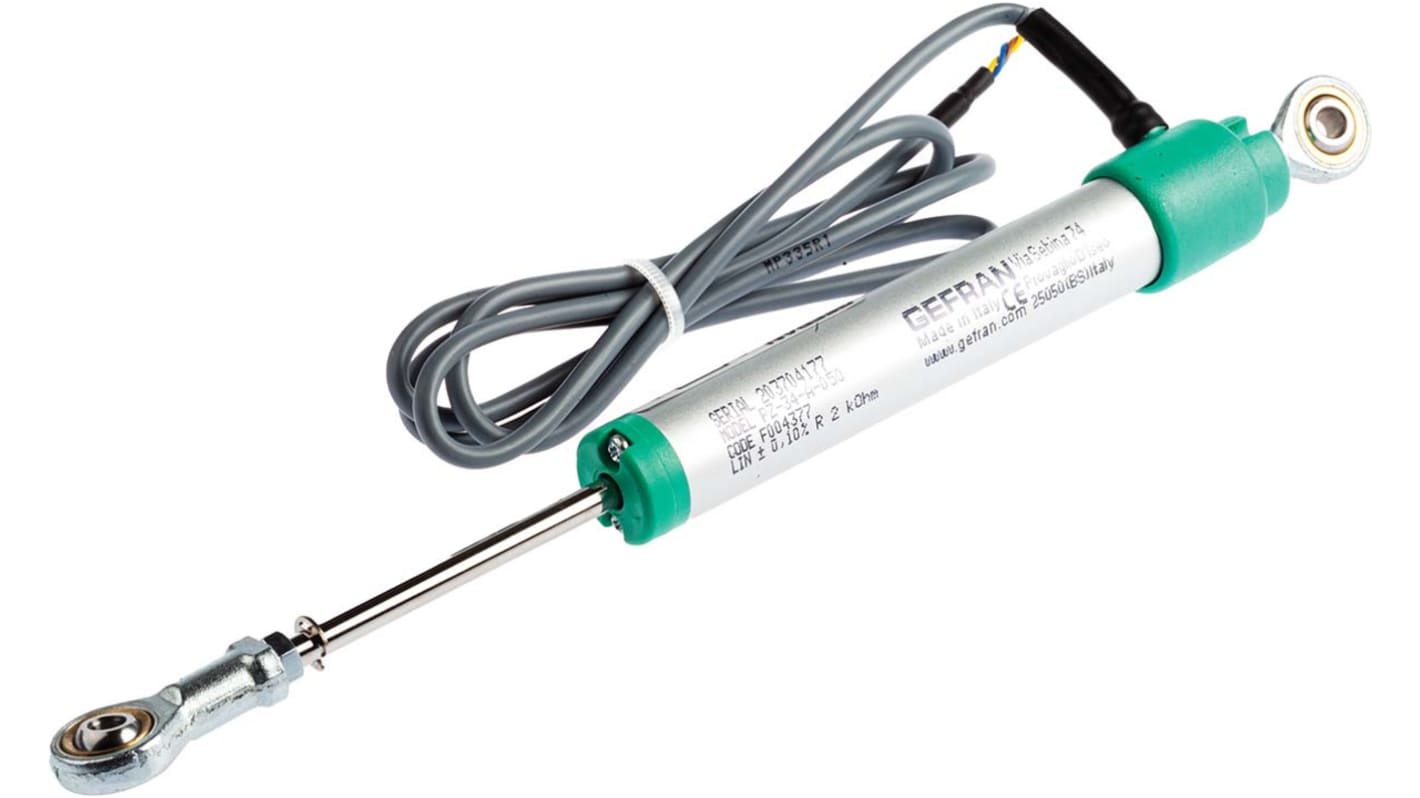

PZ34 — Linear Travel Sensor with Cylindrical Housing
Linear travel sensor in potentiometric technology for industrial use
Improved service life of resistance track by doubled mounting of the slider
Mechanical support with terminal blocks, self-aligning ball joints
No change to the electrical signal outside of the theoretical electrical use area
Output terminal via 3-pin shielded cable, length 1 m
Improved service life of resistance track by doubled mounting of the slider
Mechanical support with terminal blocks, self-aligning ball joints
No change to the electrical signal outside of the theoretical electrical use area
Output terminal via 3-pin shielded cable, length 1 m
사양
속성 | 값 |
|---|---|
| Encoder Technology | Linear Measuring |
| Stroke | 50mm |
| Supply Voltage | 40 V |
| IP Rating | IP60 |
| Overall Width | 243mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +100°C |
