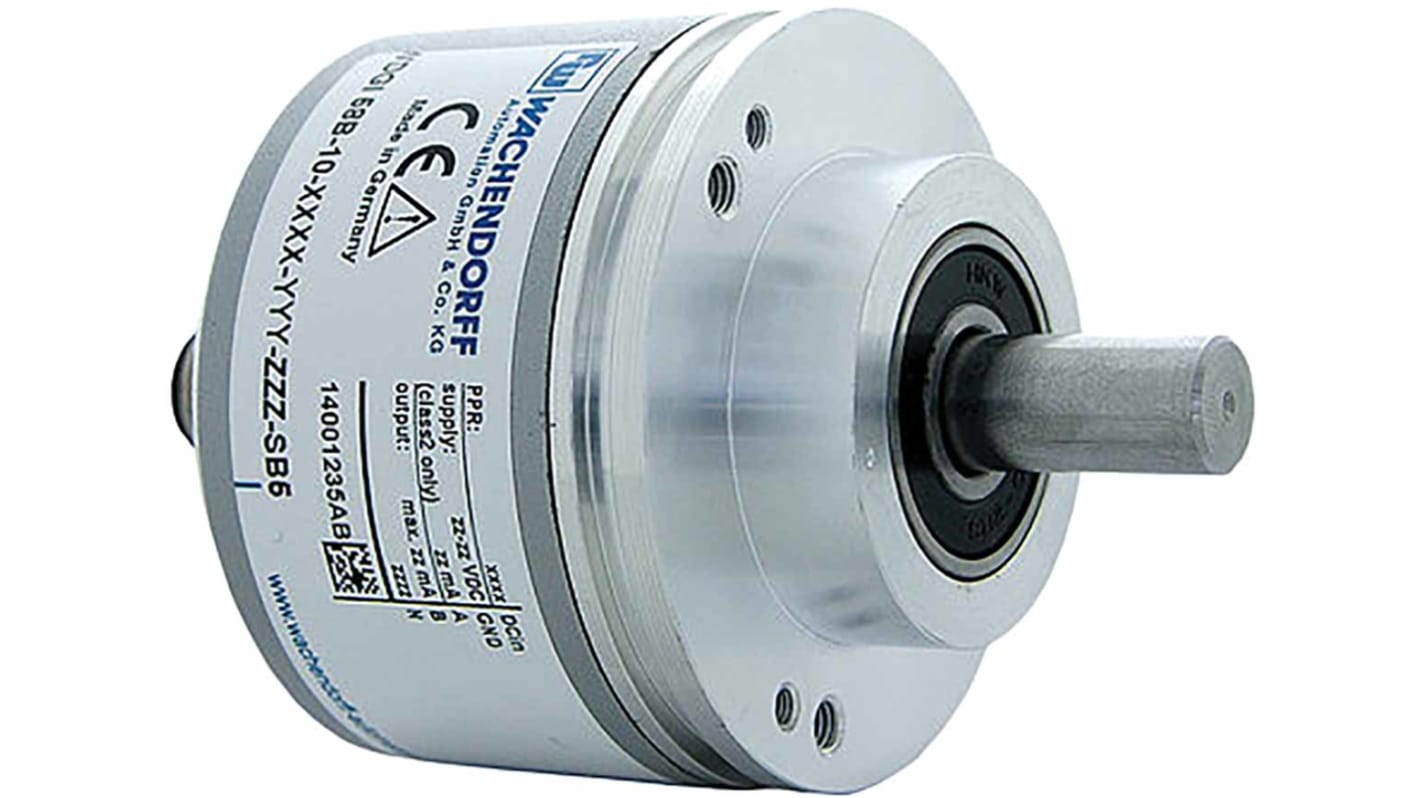

Wachendorff Incremental Incremental Encoder, 2500 ppr, RS422, TTL inverted Signal
- RS Stock No.:
- 388-5646
- Mfr. Part No.:
- WDG58B-2500-ABN-I05-K3
- Brand:
- Wachendorff
Subtotal (1 unit)*
₩508,446.00
재고있음
- 추가로 2025년 12월 15일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit |
|---|---|
| 1 + | ₩508,446.00 |
*price indicative
- RS Stock No.:
- 388-5646
- Mfr. Part No.:
- WDG58B-2500-ABN-I05-K3
- Brand:
- Wachendorff
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | Wachendorff | |
| Encoder Technology | Incremental | |
| Pulses Per Revolution | 2500 | |
| Maximum Revolutions | 8000rpm | |
| Output Signal Type | RS422, TTL inverted | |
| Supply Voltage | 4.75 → 5.5 V dc | |
| IP Rating | IP65, IP67 | |
| Overall Height | 83mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
| Mounting Type | Clamping Flange | |
| Switching Frequency | 200 kHz | |
| Select all | ||
|---|---|---|
브랜드 Wachendorff | ||
Encoder Technology Incremental | ||
Pulses Per Revolution 2500 | ||
Maximum Revolutions 8000rpm | ||
Output Signal Type RS422, TTL inverted | ||
Supply Voltage 4.75 → 5.5 V dc | ||
IP Rating IP65, IP67 | ||
Overall Height 83mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Mounting Type Clamping Flange | ||
Switching Frequency 200 kHz | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Rotary transducer WDG58B, incremental, shaft, 58 mm
Recording of rpm, position, distance or speed
Sturdy industrial aluminium housing with clamping flange
High protection class according to DIN 40 050: IP65 (shaft), IP67 (cover)
Very high axial and radial loads
Early warning output
Highly precise chip analysis
Standards: DIN VDE 0160
Sturdy industrial aluminium housing with clamping flange
High protection class according to DIN 40 050: IP65 (shaft), IP67 (cover)
Very high axial and radial loads
Early warning output
Highly precise chip analysis
Standards: DIN VDE 0160
