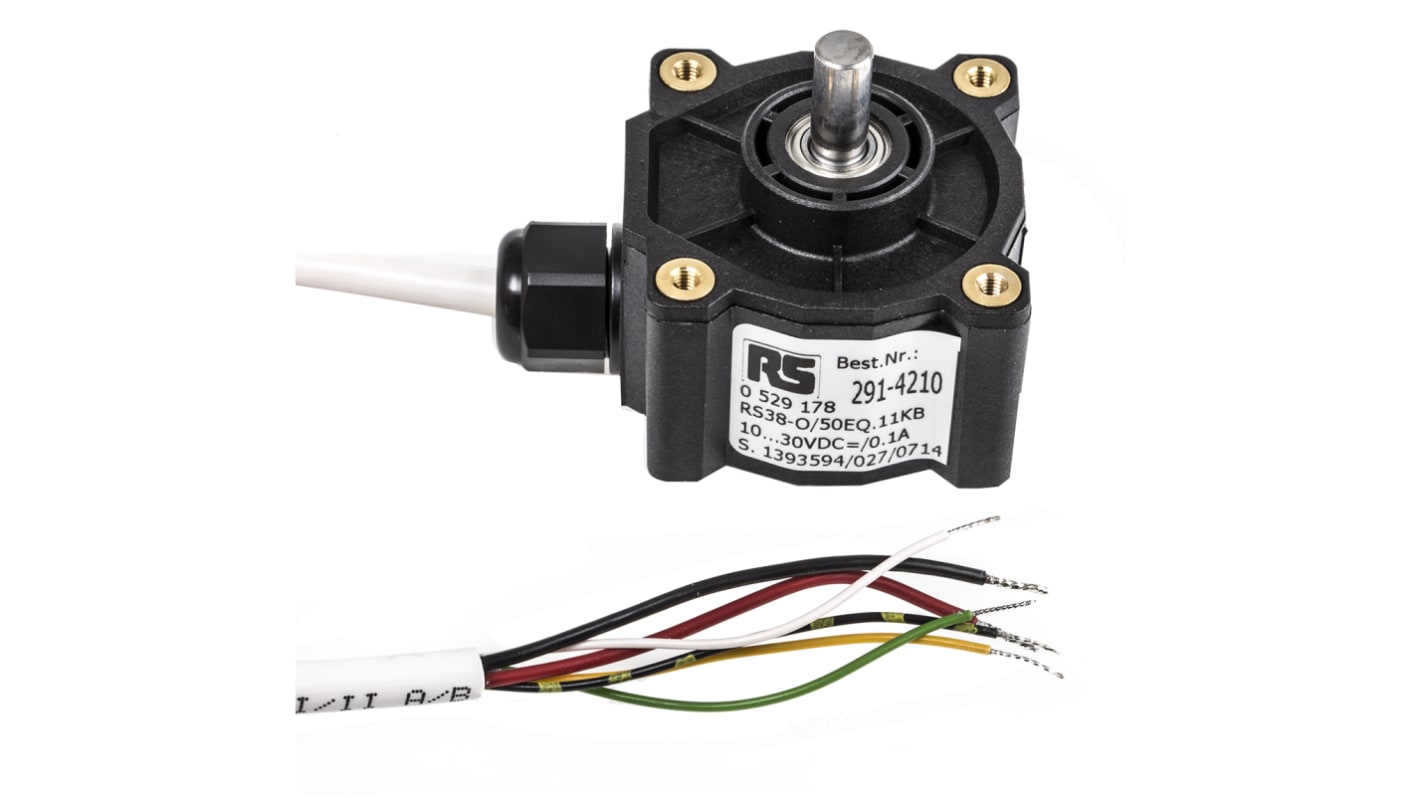

Hengstler RI38 Series Incremental Incremental Encoder, 50 ppr, Push Pull Signal
- RS Stock No.:
- 291-4210
- Mfr. Part No.:
- RS0-529-178
- Brand:
- Hengstler
Subtotal (1 unit)*
₩376,789.60
일시적 품절
- 2026년 1월 12일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit |
|---|---|
| 1 + | ₩376,789.60 |
*price indicative
- RS Stock No.:
- 291-4210
- Mfr. Part No.:
- RS0-529-178
- Brand:
- Hengstler
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | Hengstler | |
| Encoder Technology | Incremental | |
| Series | RI38 | |
| Pulses Per Revolution | 50 | |
| Maximum Revolutions | 10000rpm | |
| Output Signal Type | Push Pull | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP40, IP50 | |
| Overall Height | 44.7mm | |
| Overall Width | 39mm | |
| Overall Depth | 39mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +60°C | |
| Select all | ||
|---|---|---|
브랜드 Hengstler | ||
Encoder Technology Incremental | ||
Series RI38 | ||
Pulses Per Revolution 50 | ||
Maximum Revolutions 10000rpm | ||
Output Signal Type Push Pull | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP40, IP50 | ||
Overall Height 44.7mm | ||
Overall Width 39mm | ||
Overall Depth 39mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
RI38 Universal Mounting
Low torque/High efficiency with ball bearings
Hengstler
Radial cable termination
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
Alarm, A, B, N output
Encoders: OptoAsic technology for greater reliability
Pulse shape: Square wave, 1:1 duty cycle
