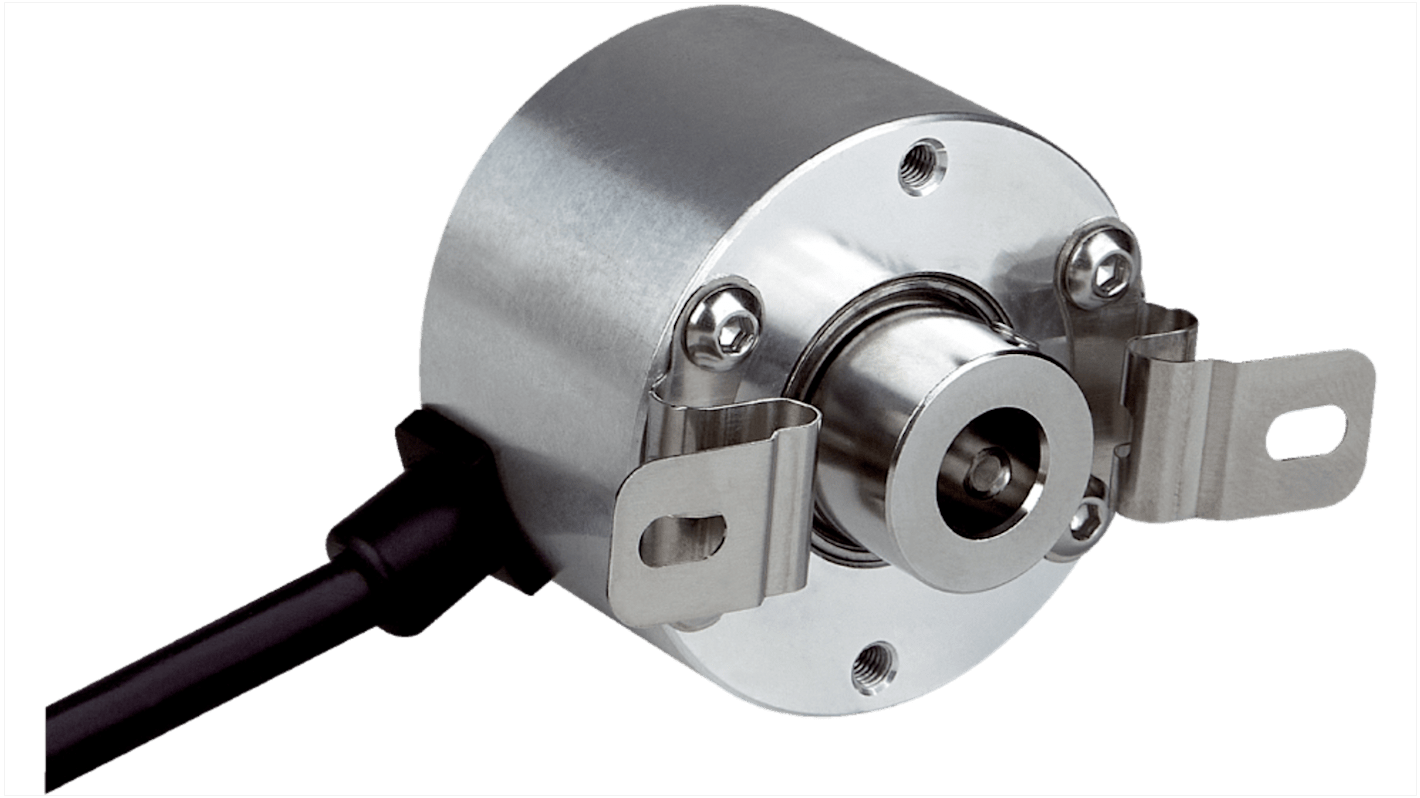

SICK DLS40E Series Incremental Incremental Encoder 27V, 100 ppr ppr, HTL/Push Pull Signal, Hollow Shaft Type, 10 mm
- RS 제품 번호:
- 285-9417
- 제조사 부품 번호:
- DLS40E-BDGV00100 / 1132514
- 제조업체:
- SICK
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 285-9417
- 제조사 부품 번호:
- DLS40E-BDGV00100 / 1132514
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Encoder Technology | Incremental | |
| Product Type | Incremental Encoder | |
| Pulses Per Revolution | 100ppr | |
| Series | DLS40E | |
| Maximum Revolutions | 8000rpm | |
| Output Signal Type | HTL/Push Pull | |
| Shaft Type | Hollow Shaft | |
| Shaft Diameter | 10mm | |
| Interface Type | Incremental | |
| Terminal Type | Cable | |
| Maximum Supply Voltage | 27V | |
| Minimum Operating Temperature | -10°C | |
| Standards/Approvals | CE, EU declaration of conformity, CHINA-RoHS, UK declaration of conformity, ACMA declaration of conformity | |
| Mount Type | Shaft | |
| Maximum Operating Temperature | 70°C | |
| Switching Frequency | 150kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Encoder Technology Incremental | ||
Product Type Incremental Encoder | ||
Pulses Per Revolution 100ppr | ||
Series DLS40E | ||
Maximum Revolutions 8000rpm | ||
Output Signal Type HTL/Push Pull | ||
Shaft Type Hollow Shaft | ||
Shaft Diameter 10mm | ||
Interface Type Incremental | ||
Terminal Type Cable | ||
Maximum Supply Voltage 27V | ||
Minimum Operating Temperature -10°C | ||
Standards/Approvals CE, EU declaration of conformity, CHINA-RoHS, UK declaration of conformity, ACMA declaration of conformity | ||
Mount Type Shaft | ||
Maximum Operating Temperature 70°C | ||
Switching Frequency 150kHz | ||
- COO (Country of Origin):
- MY
Overview
The DLS40 incremental encoder is a reliable solution for measuring rotation speed and position. With various unique features, it is fundamentally redefining the operating principle of encoders. The housing integrated in the flange enables a low-cost, slim
In addition, the encoder is equipped with an easily-accessible laser-marked QR code which enables direct access to the operating instructions.
At a glance
Pulses per revolution: Up to 1,024
Housing diameter: 40 mm
Solid shaft and blind hollow shaft
Enclosure rating: IP50 (Solid shaft)
Communication interfaces: TTL/RS-422, HTL/Push Pull, Open Collector
Connection type: cable
Slim, compact design
Your Benefit
The compact design facilitates the integration of the encoder even where installation space is limited and helps reduce machine size
The flange with integrated housing enables a very compact and cost-efficient design
A wide variety of output signal option
Applications
A large range of applications for the measurement of speed and position, e.g. in
Printing and packaging
Paper processing
Processing, forming and cutting of metal, wood and glass
Automated guided vehicle systems (AGV systems)
Manufacture and filling of bo
