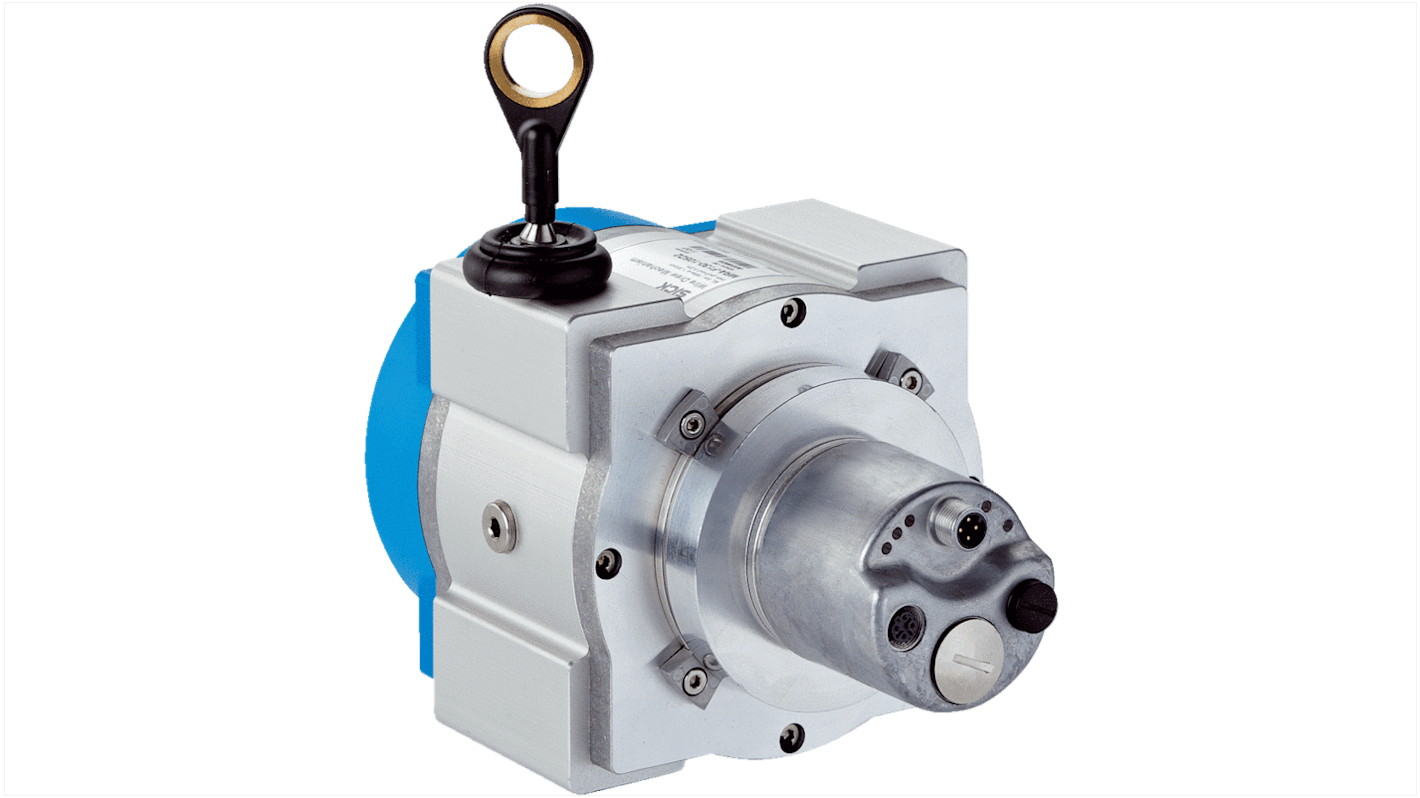

SICK BTF13 Series Absolute Draw Wire Encoder 30V dc, Ethernet IP Signal, 6 mm Shaft
- RS 제품 번호:
- 285-0945
- 제조사 부품 번호:
- BTF13-I1BM0599 / 1060987
- 제조업체:
- SICK
Subtotal (1 unit)*
₩4,249,947.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩4,249,947.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-0945
- 제조사 부품 번호:
- BTF13-I1BM0599 / 1060987
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Encoder Technology | Absolute | |
| Product Type | Draw Wire Encoder | |
| Series | BTF13 | |
| Output Signal Type | Ethernet IP | |
| Stroke | 5000 mm | |
| Shaft Diameter | 6mm | |
| Interface Type | Ethernet/IP | |
| Terminal Type | Screw | |
| IP Rating | IP67, IP64 | |
| Maximum Supply Voltage | 30V dc | |
| Minimum Operating Temperature | -30°C | |
| Overall Depth | 203mm | |
| Overall Height | 130mm | |
| Overall Width | 130mm | |
| Standards/Approvals | EU declaration of conformity, MAR Declaration of Conformity, UK declaration of conformity, ACMA declaration of conformity, CE, CHINA-RoHS | |
| Mount Type | Flange | |
| Maximum Operating Temperature | 70°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Encoder Technology Absolute | ||
Product Type Draw Wire Encoder | ||
Series BTF13 | ||
Output Signal Type Ethernet IP | ||
Stroke 5000 mm | ||
Shaft Diameter 6mm | ||
Interface Type Ethernet/IP | ||
Terminal Type Screw | ||
IP Rating IP67, IP64 | ||
Maximum Supply Voltage 30V dc | ||
Minimum Operating Temperature -30°C | ||
Overall Depth 203mm | ||
Overall Height 130mm | ||
Overall Width 130mm | ||
Standards/Approvals EU declaration of conformity, MAR Declaration of Conformity, UK declaration of conformity, ACMA declaration of conformity, CE, CHINA-RoHS | ||
Mount Type Flange | ||
Maximum Operating Temperature 70°C | ||
Overview
With wire draw lengths from 2 to 60 m, the HighLine series of wire draw encoders have enormous range. Thanks to guide rollers, the HighLine series enables flexible measurement paths - even around obstacles.
Their rugged housing and dirt-resistant brush assemblies allow the encoder to be used in the toughest of environments, including dust, shock and vibration, which ensure a long service lifetime.
At a glance
Measuring lengths: 2 m ... 60 m
Modular measuring system with a wide selection of interfaces/measuring lengths
Very rugged system (dirt scraper, integrated brushes)
High-quality winding mechanism and wire input
High enclosure rating
High shock and vibration resistance
Extremely high resolution possible
Expandable using external accessories
Your Benefit
Reliable solution for use in harsh ambient conditions
Long service life due to rugged industrial housing
Quick and easy installation without the need for precise linear guidance
Low integration and maintenance costs
Customization option reduces storage costs
Analog interface speeds up commissioning and cost effective interface card can be used
Applications
Fields of applications
Positioning of rack operation equipment
Positioning grippers and trolleys with cranes
Automated guided systems
Elevators
Lifting platforms
Presses
