SICK BKS09 Series Absolute Draw Wire Encoder 30V, SSI Signal
- RS 제품 번호:
- 266-7268
- 제조사 부품 번호:
- BKS09-ATBM0220 / 1035240
- 제조업체:
- SICK
Subtotal (1 unit)*
₩2,790,820.00
제조사가 재고 비축중
- 2026년 12월 28일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,790,820.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 266-7268
- 제조사 부품 번호:
- BKS09-ATBM0220 / 1035240
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Draw Wire Encoder | |
| Encoder Technology | Absolute | |
| Series | BKS09 | |
| Output Signal Type | SSI | |
| Stroke | 2000 mm | |
| Interface Type | SSI | |
| IP Rating | IP52 | |
| Terminal Type | Male Connector | |
| Maximum Supply Voltage | 30V | |
| Minimum Operating Temperature | -10°C | |
| Overall Depth | 90mm | |
| Standards/Approvals | CE | |
| Overall Height | 90mm | |
| Overall Width | 90mm | |
| Maximum Operating Temperature | 70°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Draw Wire Encoder | ||
Encoder Technology Absolute | ||
Series BKS09 | ||
Output Signal Type SSI | ||
Stroke 2000 mm | ||
Interface Type SSI | ||
IP Rating IP52 | ||
Terminal Type Male Connector | ||
Maximum Supply Voltage 30V | ||
Minimum Operating Temperature -10°C | ||
Overall Depth 90mm | ||
Standards/Approvals CE | ||
Overall Height 90mm | ||
Overall Width 90mm | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- DE

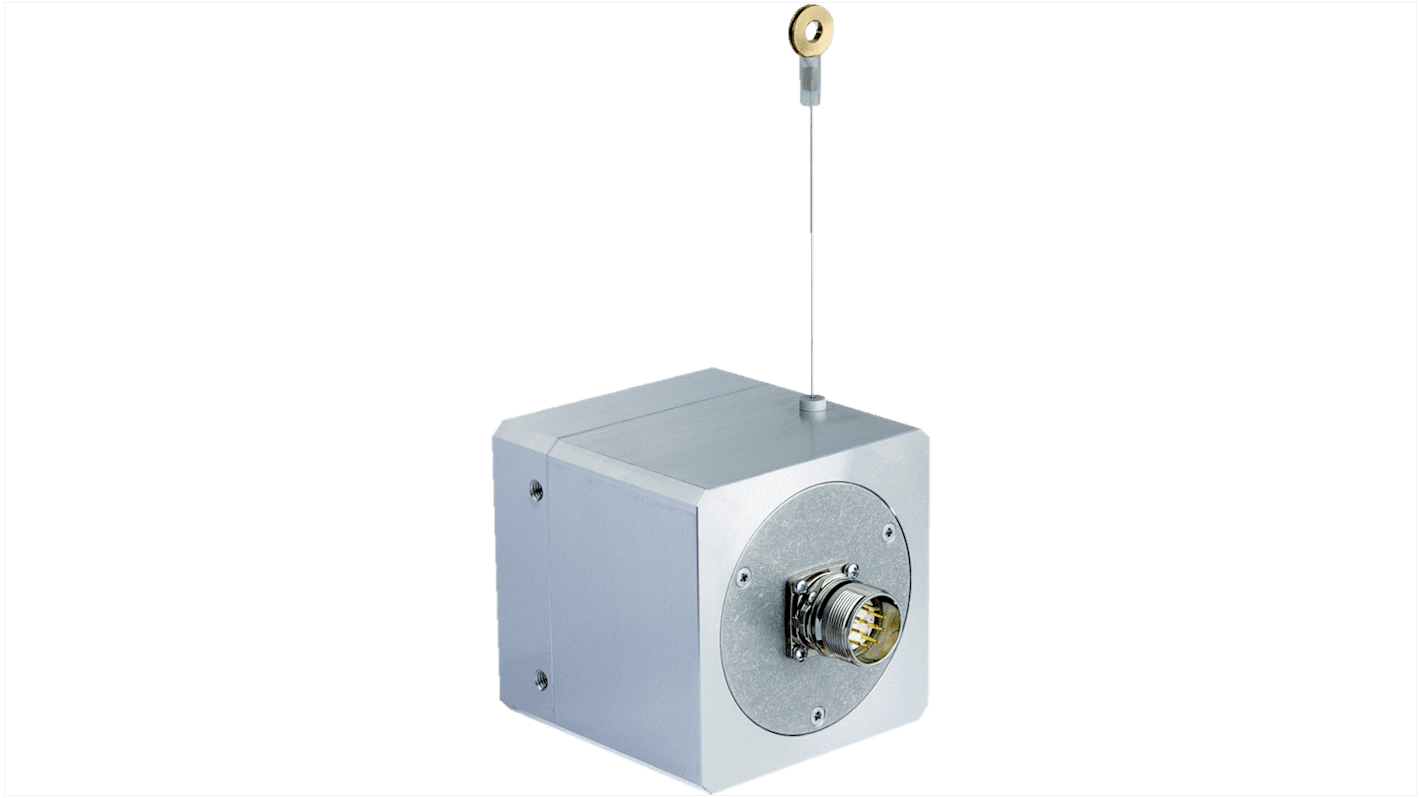

SICK BKS09 Series Draw Wire Encoder, IP52, 30V Maximum Supply Voltage - BKS09-ATBM0220 / 1035240
This draw wire encoder is a Compact absolute position sensor designed to convert linear cable movement into precise digital position information for industrial automation systems. It is suited to applications that require a sealed measurement device with an SSI Interface and a confined installation envelope, offering a straightforward way to monitor linear travel in machinery and equipment.
Features & Benefits
• SSI communication for robust digital position output
• Measurement range up to 2m for extended linear monitoring
• Repeatability less than or equal to 0.15mm for tight position control
• Linearity within ±0.7mm for accurate measurement across range
• Operating temperature up to 70°C for elevated-temperature environments
• IP52 protection rating for dust and splash resistance
• Measurement range up to 2m for extended linear monitoring
• Repeatability less than or equal to 0.15mm for tight position control
• Linearity within ±0.7mm for accurate measurement across range
• Operating temperature up to 70°C for elevated-temperature environments
• IP52 protection rating for dust and splash resistance
**Applications**
• Suitable for automated material-handling position feedback
• Ideal for cable-actuated travel measurement on gantries
• Used for stroke monitoring in test rigs and fixtures
• Can be used for length measurement in winding machinery
• Suitable for retrofitting existing systems with absolute position feedback
• Ideal for cable-actuated travel measurement on gantries
• Used for stroke monitoring in test rigs and fixtures
• Can be used for length measurement in winding machinery
• Suitable for retrofitting existing systems with absolute position feedback
What type of electrical connection does it require?
It uses a 12-pin male M23 connector in a radial orientation for power and SSI signalling.
How is the measuring element constructed for durability?
The measuring wire comprises a stranded steel core with a PA12 sheath to combine flexibility and abrasion resistance under repeated cycles.
What operational speed and dynamics can it handle?
The unit supports operating speeds up to 3.5m/s and tolerates accelerations up to 20m/s² for dynamic applications.
What is the expected service life of the retraction mechanism?
Typical life is around 800,000 wire extension/retraction cycles, subject to load, environment and installation conditions.
