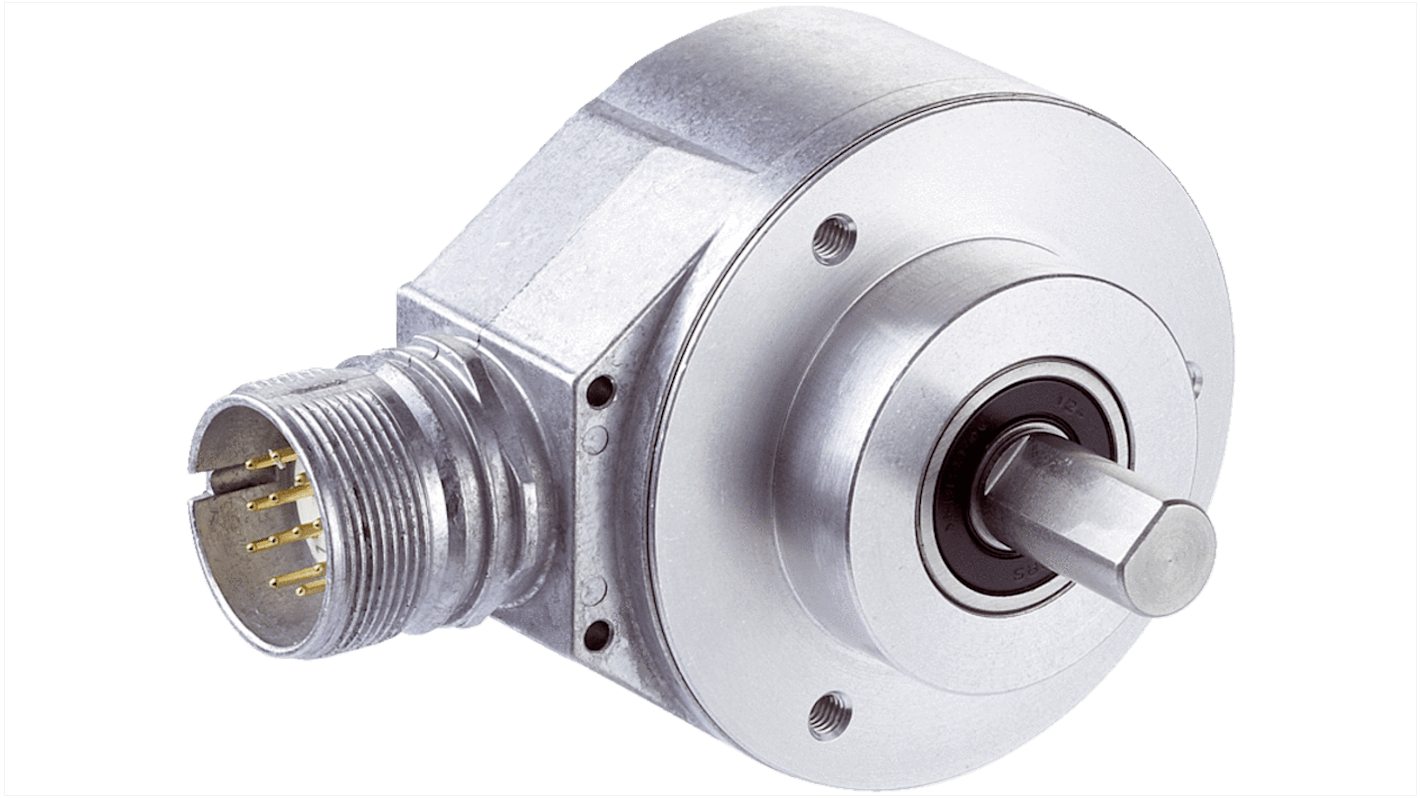

SICK AFM60 Series Absolute Absolute Encoder 32V, SSI Signal, Solid Type, 10 mm Shaft

Subtotal (1 unit)*

₩1,342,660.00

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2027년 1월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,342,660.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
266-7169
제조사 부품 번호:
AFM60B-S4AA004096 / 1037777
제조업체:
SICK
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

SICK

Product Type

Absolute Encoder

Encoder Technology

Absolute

Series

AFM60

Maximum Revolutions

9000rpm

Output Signal Type

SSI

Shaft Type

Solid

Shaft Diameter

10mm

Interface Type

SSI

Terminal Type

Male Connector

IP Rating

IP65, IP67

Maximum Supply Voltage

32V

Minimum Operating Temperature

-40°C

Overall Depth

50.1mm

Standards/Approvals

CE

Overall Height

60mm

Overall Width

60mm

Mount Type

Flange

Maximum Operating Temperature

100°C

COO (Country of Origin):
DE

SICK AFM60 Series Absolute Encoder, 10mm Shaft Diameter, SSI Output Signal Type - AFM60B-S4AA004096 / 1037777


This absolute encoder provides precise angular position feedback for industrial control and motion systems, delivering single-turn absolute measurements via a serial synchronous interface. Designed for flange mounting, it integrates into automation and electrical systems where non-volatile positional data and robust signal output are required.

Features and Benefits:


• SSI output delivers deterministic position data for control loops
• Solid 10mm shaft enables direct coupling to rotary components
• Rated to 100°C for high-temperature process environments
• Operates up to 9,000 r/min to support fast rotary applications
• Accepts up to 32V supply for varied plant power configurations
• IP65 and IP67 protection preserves operation in harsh conditions

Applications


• Suitable for closed-loop motor control in conveyor systems
• Ideal for positioning feedback on gearboxes and reducers
• Used with robotic joints requiring absolute position retention
• Can be used for shaft monitoring in packaging machinery
• Suitable for valve position feedback in process plants

What electrical connection does it use for integrating into control cabinets?


A male connector provides the electrical Interface for power and SSI comms, simplifying wiring to PLCs or motion controllers.

How is positional information maintained after power loss?


The encoder provides absolute positional output so the last shaft angle is available immediately on power-up via the SSI link.

Which mounting arrangement suits tight panel layouts?


The device is designed for flange mounting with a Compact 60x60mm footprint to fit constrained installation envelopes.

What environmental sealing allows washdown or outdoor use?


The enclosure meets IP65 and IP67 ratings, preventing dust ingress and withstanding temporary immersion or high-pressure cleaning.
