제조사부품번호

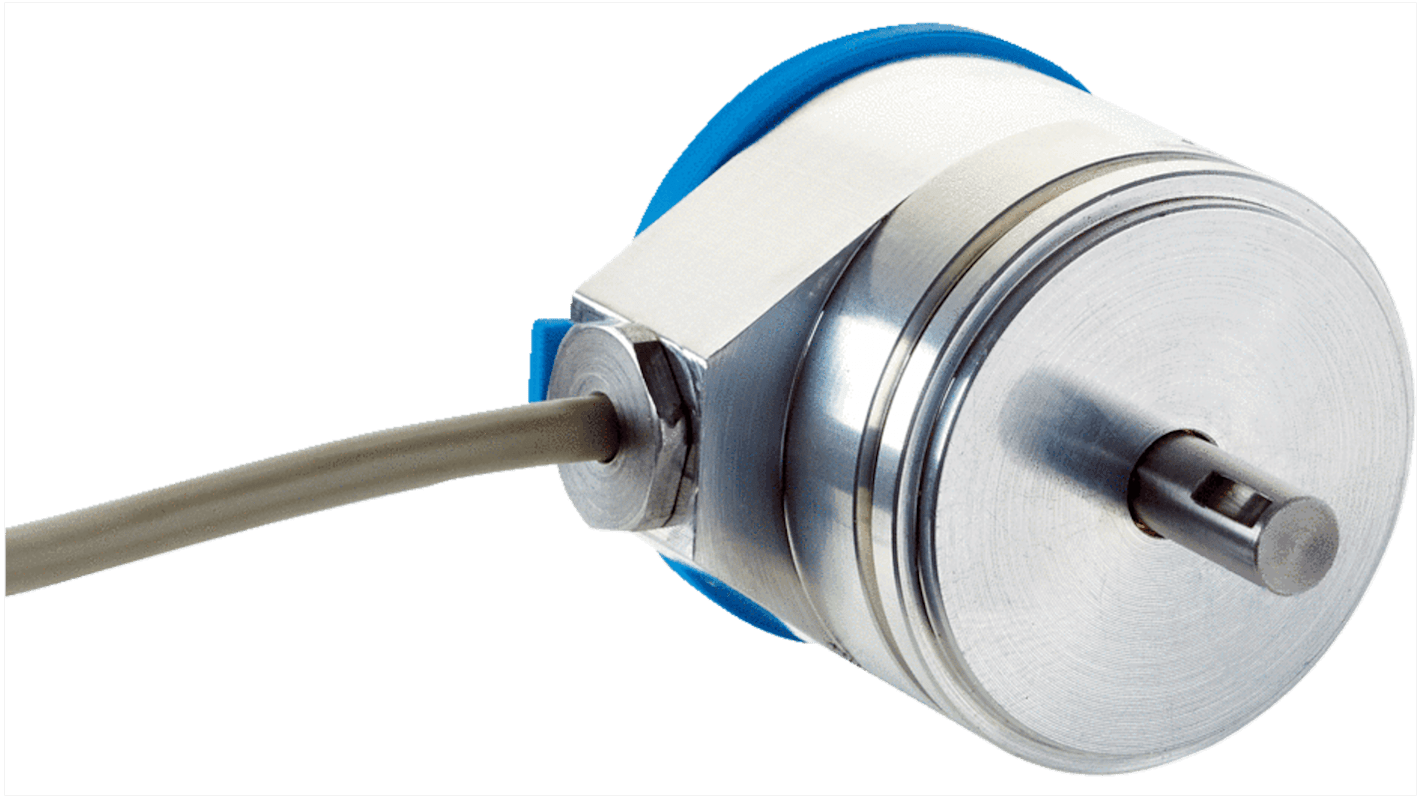

SICK ACS/ACM36 Series Absolute Absolute Encoder 33V dc, Analogue Signal, Solid Type, 6 mm Shaft

RS 제품 번호:: 266-7129
제조사 부품 번호:: ACM36-K1K0-K01 / 6039751
제조업체:: SICK

Subtotal (1 unit)*

₩907,020.00

추가로 2026년 9월 21일 부터 8 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩907,020.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 266-7129
제조사 부품 번호:: ACM36-K1K0-K01 / 6039751
제조업체:: SICK

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SICK
	Product Type	Absolute Encoder
	Encoder Technology	Absolute
	Series	ACS/ACM36
	Maximum Revolutions	10000rpm
	Output Signal Type	Analogue
	Shaft Type	Solid
	Shaft Diameter	6mm
	Interface Type	Analogue
	Terminal Type	Cable
	IP Rating	IP65
	Maximum Supply Voltage	33V dc
	Minimum Operating Temperature	-30°C
	Overall Depth	36.5mm
	Overall Width	36.5mm
	Overall Height	54mm
	Standards/Approvals	CE
	Maximum Operating Temperature	80°C
	Mount Type	Flange

	모두 선택
	브랜드 SICK
	Product Type Absolute Encoder
	Encoder Technology Absolute
	Series ACS/ACM36
	Maximum Revolutions 10000rpm
	Output Signal Type Analogue
	Shaft Type Solid
	Shaft Diameter 6mm
	Interface Type Analogue
	Terminal Type Cable
	IP Rating IP65
	Maximum Supply Voltage 33V dc
	Minimum Operating Temperature -30°C
	Overall Depth 36.5mm
	Overall Width 36.5mm
	Overall Height 54mm
	Standards/Approvals CE
	Maximum Operating Temperature 80°C
	Mount Type Flange

COO (Country of Origin):: DE

SICK ACS/ACM36 Series Absolute Encoder, 10000 rpm Maximum Revolutions, 6mm Shaft Diameter - ACM36-K1K0-K01 / 6039751

This absolute encoder is a Compact and precise instrument designed for accurate rotational measurement. With a solid shaft diameter of 6mm, it supports a maximum speed of 10,000 rpm, offering reliable data transmission for automation applications. The unit operates within a supply voltage range of 19 to 33 V DC, making it suitable for various industrial environments.

Features & Benefits

• Provides an analogue output for seamless integration
• Compact design with flange mount for easy installation
• High resolution with 2979 steps per revolution for precise measurements
• Maintains a current rating between 4 to 20 mA for stable performance

Applications

• Used with robotic automation for real-time position feedback
• Suitable for industrial control systems requiring precise movement
• Ideal for machinery requiring reliable rotational data
• Utilised in conveyor systems for accurate positioning
• Effective in packaging equipment for operational consistency

How does the design support installation in tight spaces?

The flange mount design allows for secure and adaptable fixing, enabling installation in various configurations without requiring extensive space. This makes it particularly useful in Compact settings where traditional mounting may not fit.

What type of environments can it operate in?

This encoder is built to function effectively in both low and high-temperature conditions, from -30°C to +80°C, ensuring reliable performance in a wide range of industrial settings.

What kind of maintenance does it require?

The IP65 rating indicates that it is resistant to dust and moisture ingress, minimising the need for frequent maintenance, though regular checks are advisable to ensure optimal performance and longevity.

How is the resolution beneficial for users?

With a resolution of 2979 steps per revolution, it provides highly accurate position feedback, Crucial for applications where precision is vital, such as in robotics and automation systems.
