Kubler M3668 Series Absolute Encoder IO-Link 18V

RS 제품 번호:: 230-6147
제조사 부품 번호:: 8.M3668.4344.4122
제조업체:: Kubler

Kubler M3668 Series Absolute Encoder IO-Link 18V

Subtotal (1 unit)*

₩860,420.00

일시적 품절

2026년 12월 03일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩860,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 230-6147
제조사 부품 번호:: 8.M3668.4344.4122
제조업체:: Kubler

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Kubler
	Product Type	Absolute Encoder
	Series	M3668
	Housing Material	Die Cast Zinc
	Interface Type	IO-Link
	IP Rating	IP65
	Maximum Supply Voltage	18V
	Overall Depth	39.4mm
	Overall Height	57.4mm
	Standards/Approvals	cULus, CE, UL
	Overall Width	80.75mm
	Maximum Operating Temperature	85°C

	모두 선택
	브랜드 Kubler
	Product Type Absolute Encoder
	Series M3668
	Housing Material Die Cast Zinc
	Interface Type IO-Link
	IP Rating IP65
	Maximum Supply Voltage 18V
	Overall Depth 39.4mm
	Overall Height 57.4mm
	Standards/Approvals cULus, CE, UL
	Overall Width 80.75mm
	Maximum Operating Temperature 85°C

Datasheet - 8.M3668.4344.4122

COO (Country of Origin):: DE

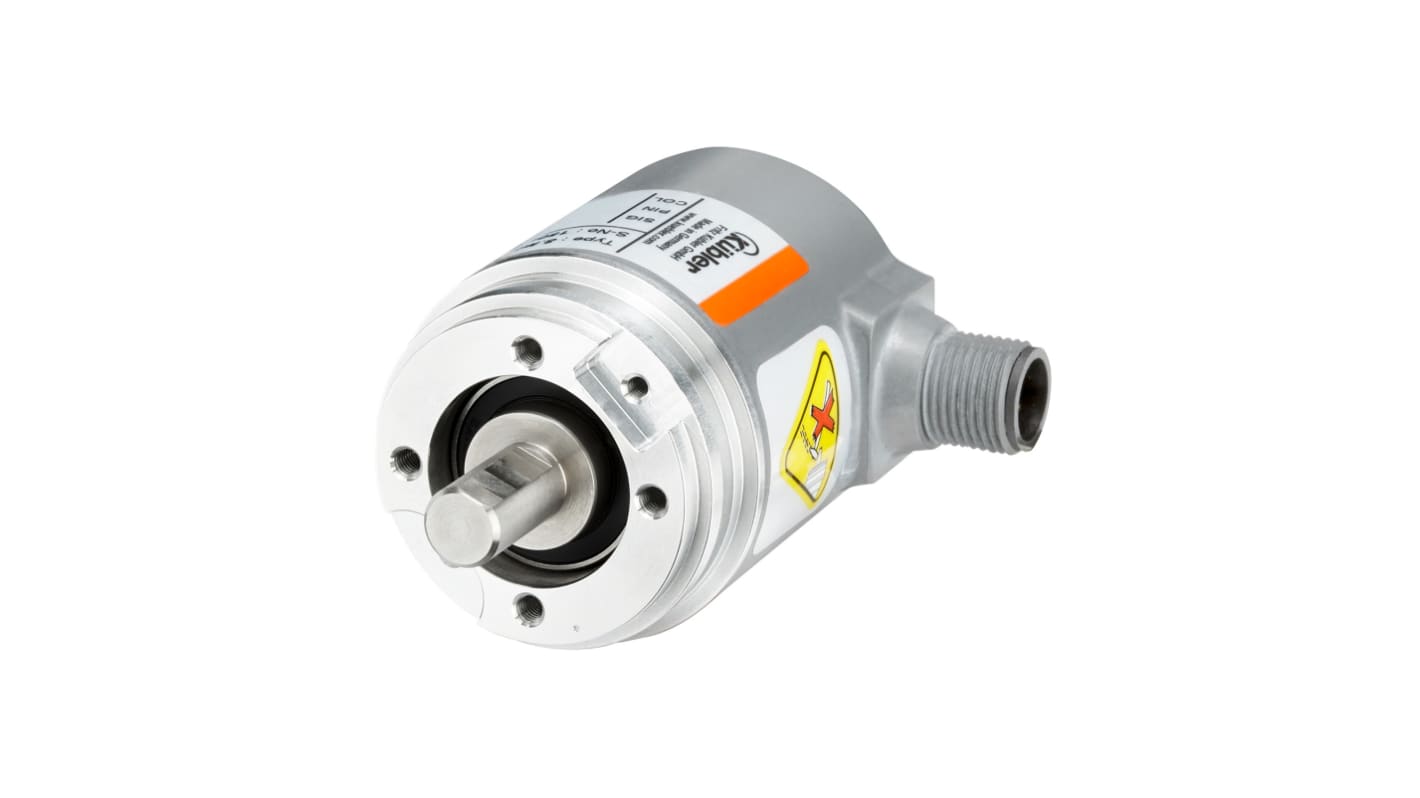

The Kuebler sendix M36 with energy harvesting technology is an electronic multiturn encoder in compact design, without gear and without battery. It is characterized by robustness, reliability and cost-efficiency. With Smart Sensor Profile for easy and fast integration into the application.

Sturdy bearing construction in safety-lock design for resistance against vibration and installation errors

Reduced number of components ensures magnetic insensitivity

Wide temperature range from 40°C to +85°C

Without gear and without battery

Operation possible with any IO-Link master

Point-to-point communication in automation networks

Use of cost-effective unshielded cables possible

Automatic saving of device parameters

Firmware update via IO-Link.

Kubler M3668 Series Absolute Encoder IO-Link 18V
