Gefran PY3 Series Linear Transducer Cable 25V
- RS 제품 번호:
- 226-8987
- 제조사 부품 번호:
- F044494/ PY-3-F-010-S05M 0000X000X00
- 제조업체:
- Gefran
Subtotal (1 unit)*
₩418,320.00
제조사가 재고 비축중
- 2026년 10월 28일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩418,320.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 226-8987
- 제조사 부품 번호:
- F044494/ PY-3-F-010-S05M 0000X000X00
- 제조업체:
- Gefran
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Gefran | |
| Product Type | Linear Transducer | |
| Series | PY3 | |
| Resistance | 1kΩ | |
| Housing Material | Anodised Aluminium, Polyamide 66 | |
| Interface Type | Cable | |
| IP Rating | IP40 | |
| Maximum Supply Voltage | 25V | |
| Overall Height | 119mm | |
| Overall Width | 45mm | |
| Standards/Approvals | CE, RoHS | |
| Resistance Tolerance | ±20 % | |
| Maximum Operating Temperature | 100°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Gefran | ||
Product Type Linear Transducer | ||
Series PY3 | ||
Resistance 1kΩ | ||
Housing Material Anodised Aluminium, Polyamide 66 | ||
Interface Type Cable | ||
IP Rating IP40 | ||
Maximum Supply Voltage 25V | ||
Overall Height 119mm | ||
Overall Width 45mm | ||
Standards/Approvals CE, RoHS | ||
Resistance Tolerance ±20 % | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- IT

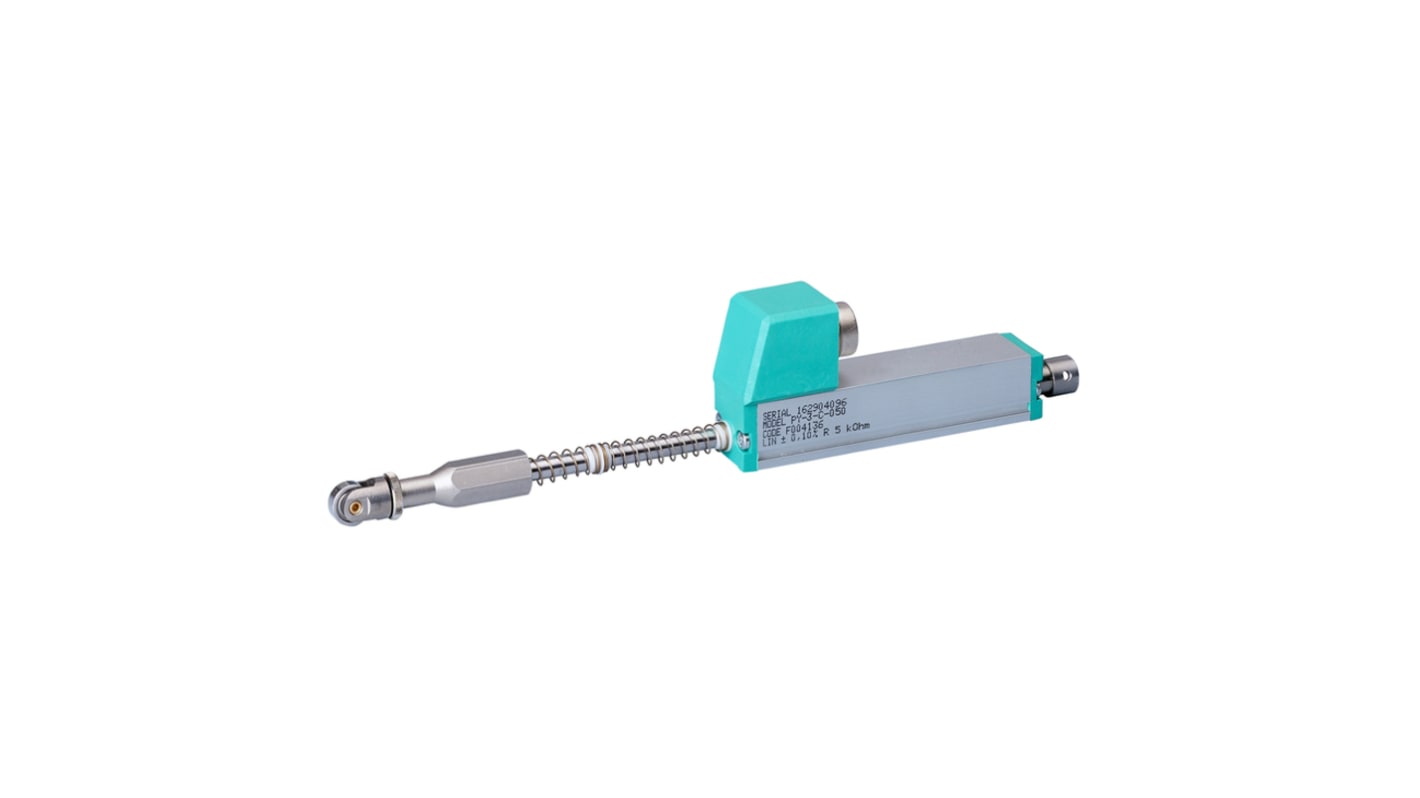

The Gefran PY-3 series Rectilinear Displacement Transducer with roller bearing tip is suitable for applications where the object to be measured may be subject to shifts transverse to the transducer axle (shaft is prevented from rotating). The side connection creates a through-rod structure with double rod support, guaranteeing greater overall strength of the transducer.
Stroke length 10mm
Independent linearity up to ± 0.1%
Infinite resolution
Displacement speed up to 10 m/s
Working temperature -30 to +100°C
