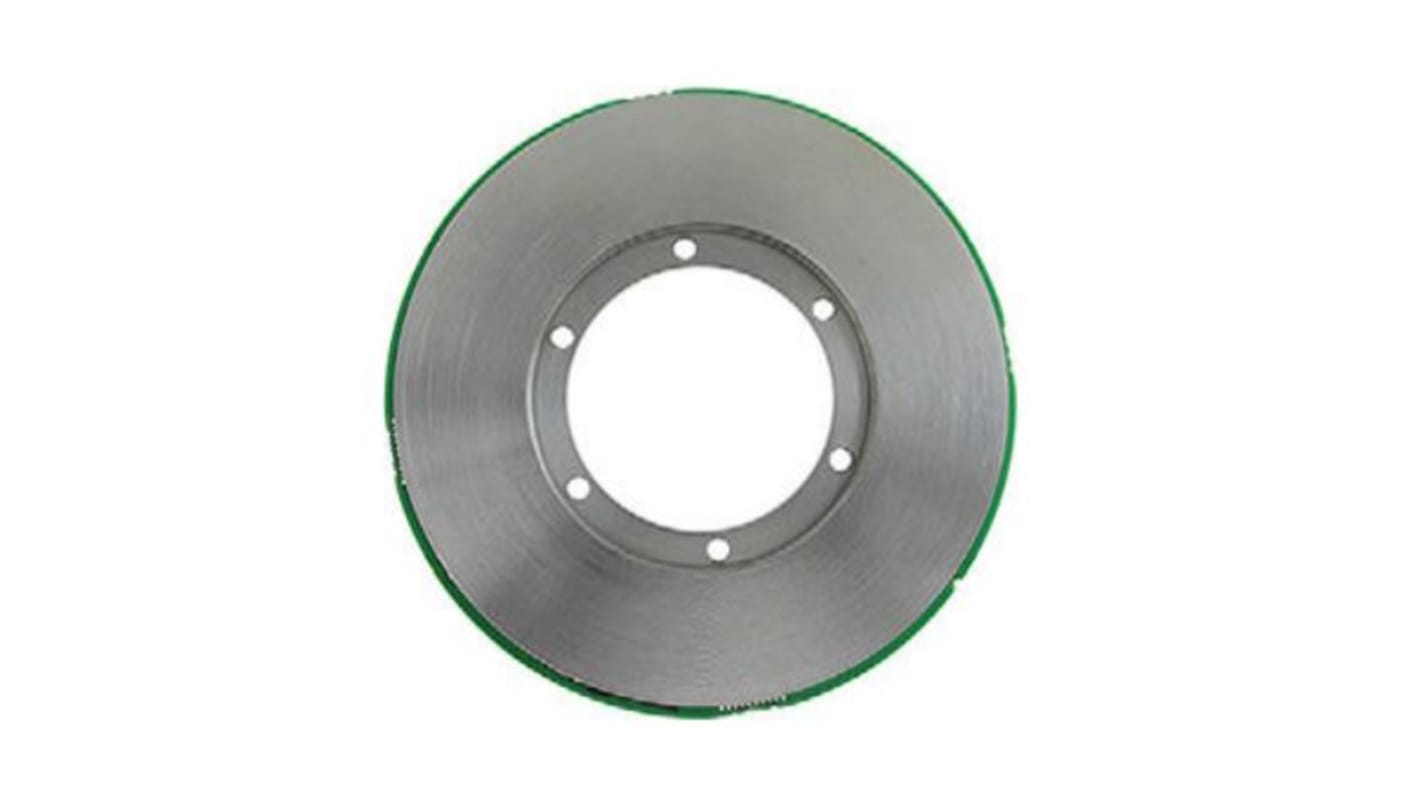

Vishay RAMK060 Series Absolute Rotary Encoder 5V, SSI Signal, Hollow Type, 25 mm Shaft
- RS 제품 번호:
- 209-8719
- 제조사 부품 번호:
- RAMK060M11319JB663
- 제조업체:
- Vishay
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 209-8719
- 제조사 부품 번호:
- RAMK060M11319JB663
- 제조업체:
- Vishay
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Vishay | |
| Product Type | Rotary Encoder | |
| Encoder Technology | Absolute | |
| Series | RAMK060 | |
| Maximum Revolutions | 10000rpm | |
| Output Signal Type | SSI | |
| Shaft Type | Hollow | |
| Shaft Diameter | 25mm | |
| Interface Type | SSI, SPI | |
| Terminal Type | Connector | |
| Maximum Supply Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 85°C | |
| Switching Frequency | 10kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Vishay | ||
Product Type Rotary Encoder | ||
Encoder Technology Absolute | ||
Series RAMK060 | ||
Maximum Revolutions 10000rpm | ||
Output Signal Type SSI | ||
Shaft Type Hollow | ||
Shaft Diameter 25mm | ||
Interface Type SSI, SPI | ||
Terminal Type Connector | ||
Maximum Supply Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals No | ||
Maximum Operating Temperature 85°C | ||
Switching Frequency 10kHz | ||
- COO (Country of Origin):
- FR
The Vishay Rotational Absolute Magnetic Kit Encoder Version 60 mm HP Position Sensor Version 2.1.
Especially dedicated to robotics applications
High precision, high repeatability, high resolution, single or multi-turns variant
Plug and play or self-calibration
Memorization of last position before power off
Not sensitive to external magnetic fields and temperature
Not sensitive to moisture and pollution
