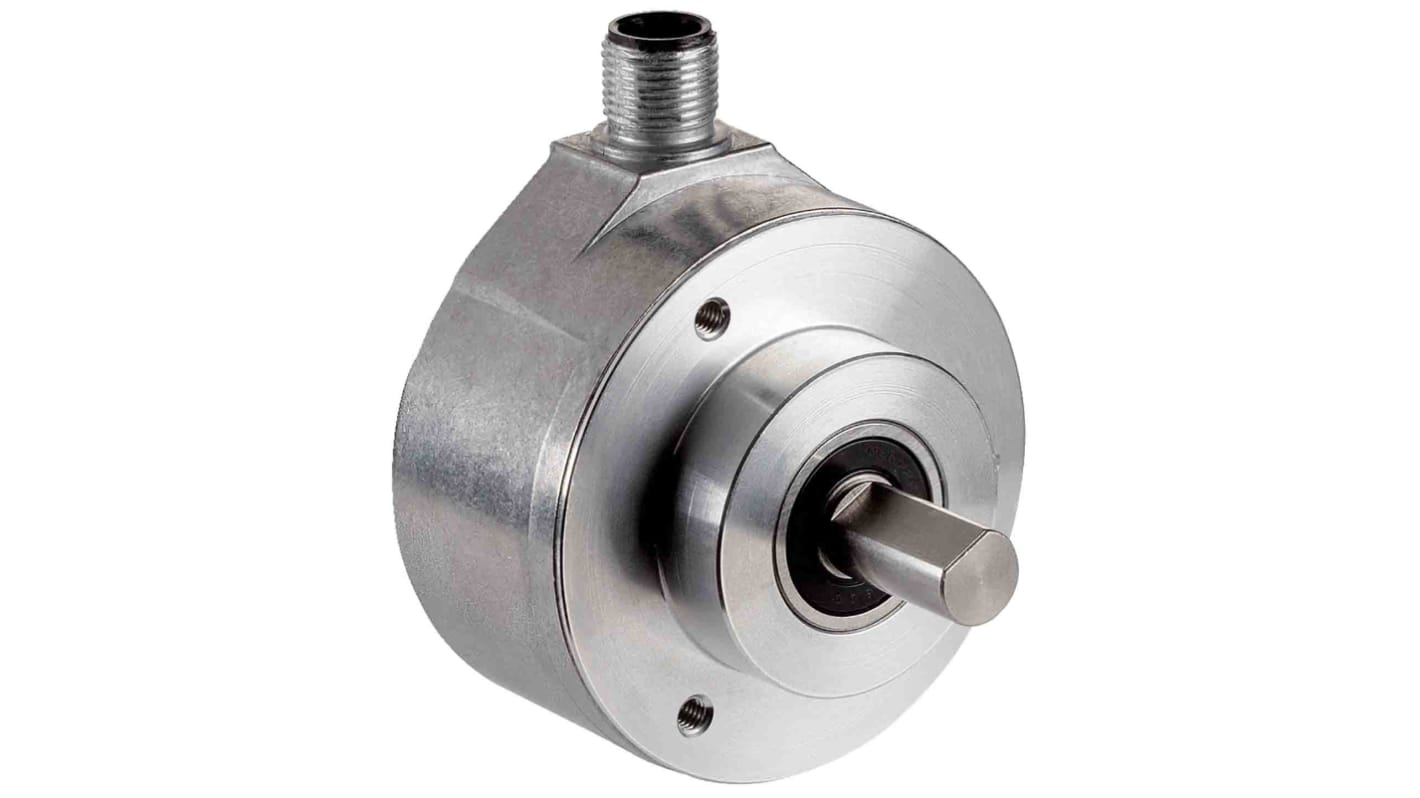

SICK DFS60 Series Incremental Incremental Encoder 32V, 10000 ppr ppr, TTL Signal, Solid Type, 10 mm Shaft

RS 제품 번호:: 201-7897
Distrelec 제품 번호:: 303-96-987
제조사 부품 번호:: DFS60B-S4PC10000 / 1036721
제조업체:: SICK

Subtotal (1 unit)*

₩665,980.00

7 개 단위 배송 준비 완료
추가로 2026년 9월 29일 부터 3 개 단위 배송
추가로 2026년 10월 13일 부터 21 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩665,980.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 201-7897
Distrelec 제품 번호:: 303-96-987
제조사 부품 번호:: DFS60B-S4PC10000 / 1036721
제조업체:: SICK

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SICK
	Encoder Technology	Incremental
	Product Type	Incremental Encoder
	Series	DFS60
	Pulses Per Revolution	10000ppr
	Maximum Revolutions	9000rpm
	Output Signal Type	TTL
	Shaft Type	Solid
	Shaft Diameter	10mm
	Interface Type	Incremental
	IP Rating	IP67, IP65
	Maximum Supply Voltage	32V
	Minimum Operating Temperature	-40°C
	Overall Depth	60mm
	Overall Width	60mm
	Standards/Approvals	EN 61000-6-2 and EN 61000-6-3
	Overall Height	43.1mm
	Mount Type	Flange
	Maximum Operating Temperature	100°C
	Switching Frequency	600kHz

	모두 선택
	브랜드 SICK
	Encoder Technology Incremental
	Product Type Incremental Encoder
	Series DFS60
	Pulses Per Revolution 10000ppr
	Maximum Revolutions 9000rpm
	Output Signal Type TTL
	Shaft Type Solid
	Shaft Diameter 10mm
	Interface Type Incremental
	IP Rating IP67, IP65
	Maximum Supply Voltage 32V
	Minimum Operating Temperature -40°C
	Overall Depth 60mm
	Overall Width 60mm
	Standards/Approvals EN 61000-6-2 and EN 61000-6-3
	Overall Height 43.1mm
	Mount Type Flange
	Maximum Operating Temperature 100°C
	Switching Frequency 600kHz

COO (Country of Origin):: DE

SICK DFS60
Series Incremental Encoder, 9000 rpm Maximum Revolutions, 10000 Pulses Per Revolution - DFS60B-S4PC10000

This incremental encoder is designed for precision motion control in various industrial applications. Featuring a solid shaft and flange mounting, it ensures reliable operation in environments with stringent demands. The encoder operates at a supply voltage range of 4.5 to 32 V, with a maximum rotational speed of 9000 rpm, making it versatile for numerous automation needs.

Features & Benefits

• High-resolution output of 1 to 10000 pulses per revolution enhances measurement accuracy
• TTL output signal ensures compatibility with various control systems
• Available in a solid shaft configuration for robust installation
• Easy connection via male connector simplifies integration into existing systems

Applications

• Utilised in automation systems for precise position feedback
• Effective in CNC machinery for enhanced operational efficiency
• Suitable for robotics requiring accurate movement control
• Integrated into conveyors for reliable speed monitoring and control
• Used in medical equipment where EXACT position tracking is essential

What environments can this encoder operate in?

The encoder is designed to function effectively in harsh environments thanks to its IP65 and IP67 ratings, providing resistance against dust and moisture ingress.

How does the Pulse count affect the encoder's performance?

A higher Pulse count allows for finer granularity in positional feedback, making the encoder Ideal for applications that require precise control and accurate measurements.

What temperature range can this encoder withstand?

It can function safely within a temperature range of -30°C to +100°C, making it suitable for diverse industrial applications where temperature fluctuations are common.

Can this encoder be easily integrated into existing systems?

Yes, the encoder features a male connector, facilitating straightforward integration into various control systems without complex modifications.
