DiodesZetex Type N-Channel MOSFET, 49.1 A, 40 V Enhancement, 8-Pin PowerDI3333-8

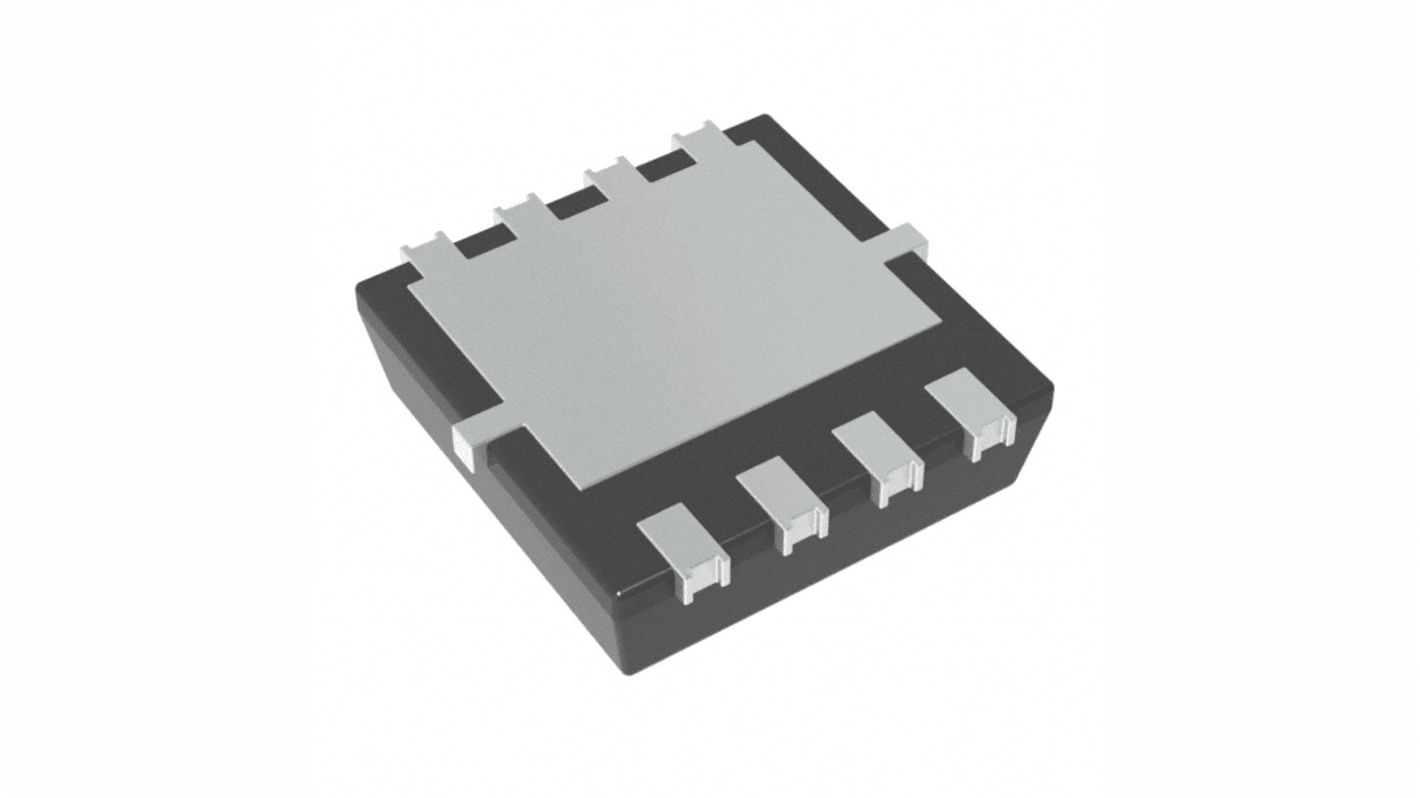

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 MOSFETs 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 제품 번호:
246-6883
제조사 부품 번호:
DMT47M2SFVWQ-13
제조업체:
DiodesZetex
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

DiodesZetex

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

49.1A

Maximum Drain Source Voltage Vds

40V

Package Type

PowerDI3333-8

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

0.0074Ω

Channel Mode

Enhancement

Maximum Power Dissipation Pd

1.73W

Forward Voltage Vf

1.2V

Maximum Gate Source Voltage Vgs

8 V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Standards/Approvals

No

Height

0.8mm

Length

3.3mm

Width

3.3 mm

Automotive Standard

AEC-Q101

The DiodesZetex makes a P-channel enhancement mode MOSFET, designed to meet the stringent requirements of automotive applications. It is a green device and, totally Lead, halogen and Antimony free. This MOSFET comes in powerDI3333-8 packaging. It offers fast switching and high efficiency. It has working temperature range of -55°C to +150°C.

Maximum drain to source voltage is 40 V and maximum gate to source voltage is ±20 V It offers low on-resistance It offers low input capacitance
