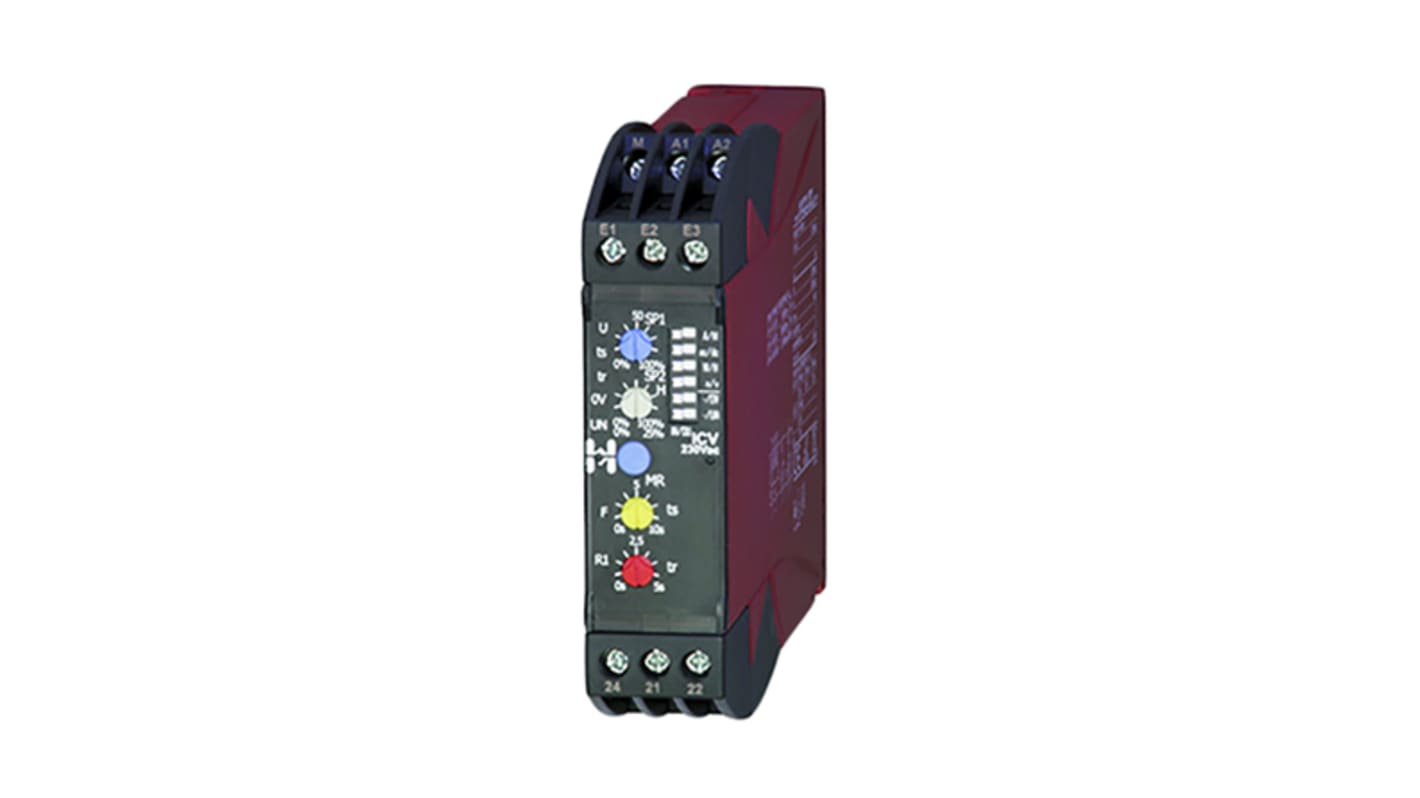

Hiquel Monitoring Relay, 1 Phase, 0/450 V Monitor Range, DPDT, DIN Rail, 115V ac, 230 V ac, 24 V ac, 400 V ac
- RS 제품 번호:
- 914-4654
- 제조사 부품 번호:
- ICV.230AC
- 제조업체:
- Hiquel
Subtotal (1 unit)*
₩224,415.75
재고있음
- 추가로 2026년 4월 27일 부터 5 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩224,415.75 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 914-4654
- 제조사 부품 번호:
- ICV.230AC
- 제조업체:
- Hiquel
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Hiquel | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Function | Undervoltage Monitoring | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Power Consumption | 2.5VA | |
| Switching Voltage | 230V | |
| Terminal Type | Screw | |
| Monitoring Voltage Range | 0/450 V | |
| Supply AC Voltage | 115, 230, 24, 400V ac | |
| Minimum Operating Temperature | -20°C | |
| Contact Current | 6A | |
| Maximum Operating Temperature | 60°C | |
| Series | ICV | |
| Width | 22.5mm | |
| Height | 110mm | |
| Standards/Approvals | EN 60947-5-1, VDE 0435 | |
| Length | 93.5mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Hiquel | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Function Undervoltage Monitoring | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Power Consumption 2.5VA | ||
Switching Voltage 230V | ||
Terminal Type Screw | ||
Monitoring Voltage Range 0/450 V | ||
Supply AC Voltage 115, 230, 24, 400V ac | ||
Minimum Operating Temperature -20°C | ||
Contact Current 6A | ||
Maximum Operating Temperature 60°C | ||
Series ICV | ||
Width 22.5mm | ||
Height 110mm | ||
Standards/Approvals EN 60947-5-1, VDE 0435 | ||
Length 93.5mm | ||
- COO (Country of Origin):
- AT
ICV Series Voltage Control Monitor
Hiquel ICV series monitors a single phase voltage signal. It is suitable for use with alternate and direct voltage signals. Three different voltage ranges available to improve the measuring precision. Thresholds for alarm functions, alarm reaction time and start delay time can be easily adjusted using the rotary switches on the front plate.
AC or DC voltage monitor
3 different voltage ranges
2 selectable measuring functions
Automatic or manual reset selectable
Alarm memory function
Output relay contact invertable
DPCO alarm relay
LED indicator
22.5 mm DIN rail mount housing
Hiquel in-Case Series Monitoring Relays
HIQUEL in-Case series, an integrated range of industrial monitoring and timing relays in a compact 22.5 mm DIN Rail case. Designed with emphasis on flexibility and incorporating a new micro-controller, just four monitoring relays offer a complete range. Featuring single phase current and voltage, 3 phase voltage, and thermistor monitoring. With all popular functions, combinations and options selected by switches.
