Phoenix Contact Monitoring Relay, 1 Phase, DPDT, DIN Rail, 0A, 240 V dc, 240V ac
- RS 제품 번호:
- 801-6218
- 제조사 부품 번호:
- 2866022
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩464,314.50
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩464,314.50 |
| 5 - 9 | ₩445,750.50 |
| 10 + | ₩427,167.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 801-6218
- 제조사 부품 번호:
- 2866022
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Minimum Current Sensed | 0A | |
| Power Consumption | 1.5W | |
| Switching Voltage | 250V | |
| Current Sensitivity | Undercurrent, Overcurrent | |
| Terminal Type | Screw | |
| IP Rating | IP20, IP40 | |
| Time Delay | 0.1 to 10 s | |
| Supply DC Voltage | 240 V dc | |
| Supply AC Voltage | 240V ac | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL 508, CE | |
| Height | 90mm | |
| Series | EMD | |
| Length | 113mm | |
| Width | 22.5mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Minimum Current Sensed 0A | ||
Power Consumption 1.5W | ||
Switching Voltage 250V | ||
Current Sensitivity Undercurrent, Overcurrent | ||
Terminal Type Screw | ||
IP Rating IP20, IP40 | ||
Time Delay 0.1 to 10 s | ||
Supply DC Voltage 240 V dc | ||
Supply AC Voltage 240V ac | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL 508, CE | ||
Height 90mm | ||
Series EMD | ||
Length 113mm | ||
Width 22.5mm | ||
- COO (Country of Origin):
- AT

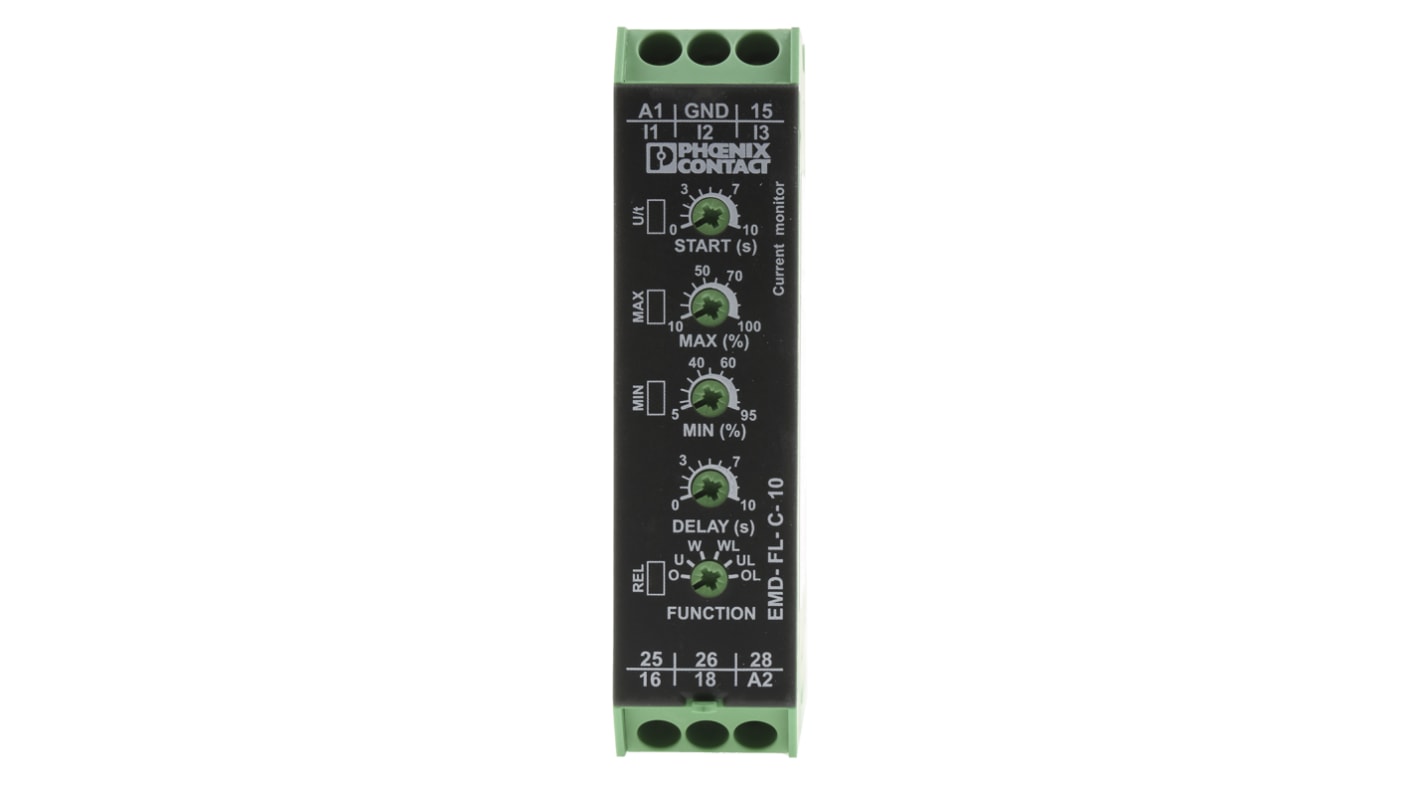

Phoenix Contact Monitoring Relay, 90mm Height, Screw Connection - EMD-FL-C-10 - 2866022
Use this monitoring relay from Phoenix Contact to safeguard your equipment from damage caused by overcurrents and undercurrents. It's designed for single-phase circuits and has an input current range of 0 to 10A, making it an ideal choice for low-power systems. The potentiometer on the front makes it easy to adjust according to the needs of your setup. For simple troubleshooting, you can easily monitor the status of your system thanks to the LED indicators.
The unit's housing has an IP40 rating, meaning it's protected against tools and wires larger than 1mm in size. There are screw connections, so wiring is simple and secure. For ease of installation, the relay's designed for mounting on a DIN rail in applications from electrical engineering to manufacturing.
Features & Benefits
• Wide operating temperature range between -25°C and +55°C for use in harsh environments
• Fast recovery time of 500ms to ensure continuous monitoring
• Compact dimensions of 90 (H) x 22.5 (W) x 113mm (D) for installation in areas with limited space
• Long mechanical service life of 20 million cycles for long-lasting performance
