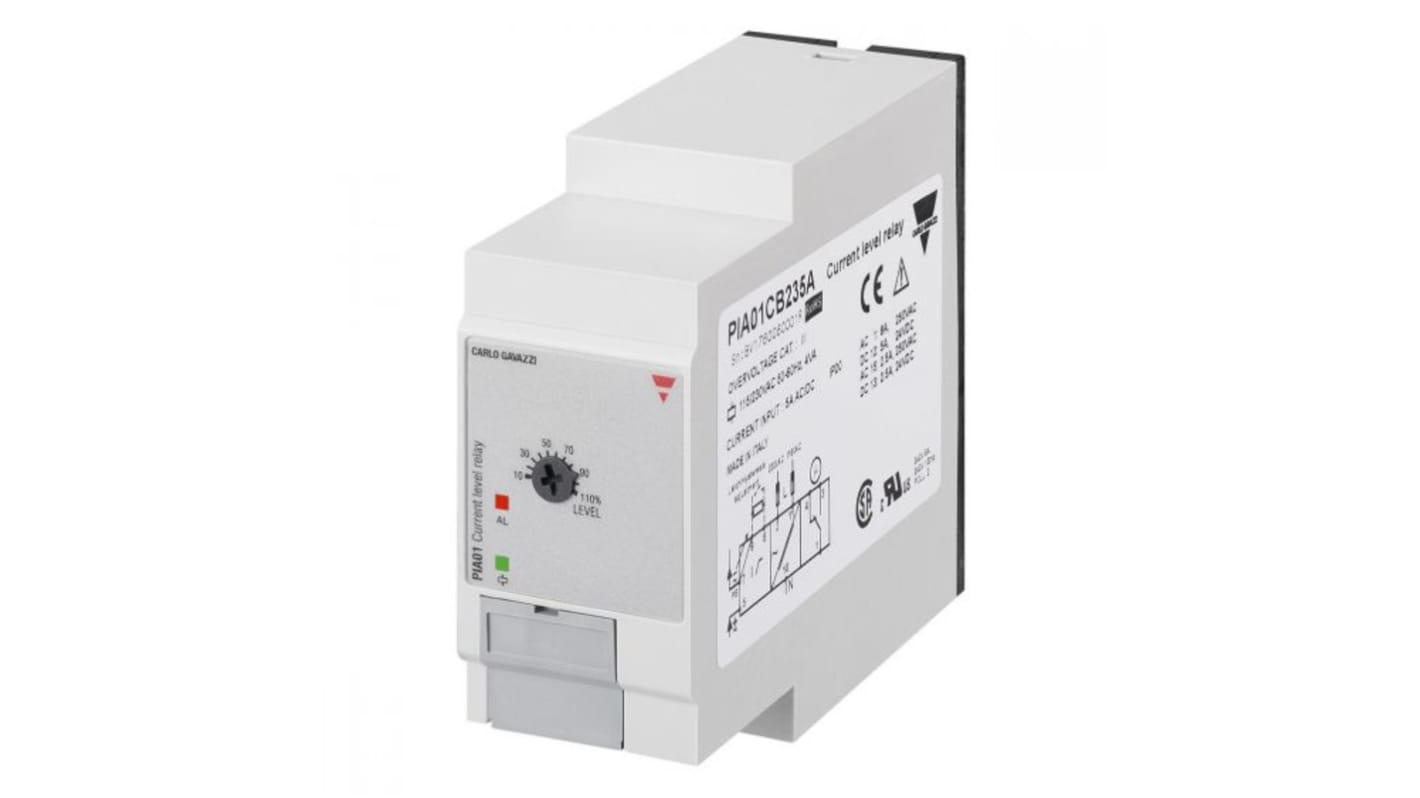

Carlo Gavazzi Monitoring Relay, 1 Phase, SPDT, 230V ac

RS 제품 번호:: 256-5068
제조사 부품 번호:: PIA01CB235A
제조업체:: Carlo Gavazzi

Carlo Gavazzi Monitoring Relay, 1 Phase, SPDT, 230V ac

Subtotal (1 unit)*

₩203,346.00

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 +	₩203,346.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 256-5068
제조사 부품 번호:: PIA01CB235A
제조업체:: Carlo Gavazzi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Carlo Gavazzi
	Product Type	Monitoring Relay
	Electrical Phase	1
	Contact Configuration	SPDT
	Current Sensitivity	0.5 to 5 A
	Terminal Type	Screw
	IP Rating	IP20
	Supply AC Voltage	230V ac
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	UL, CSA, CE

	모두 선택
	브랜드 Carlo Gavazzi
	Product Type Monitoring Relay
	Electrical Phase 1
	Contact Configuration SPDT
	Current Sensitivity 0.5 to 5 A
	Terminal Type Screw
	IP Rating IP20
	Supply AC Voltage 230V ac
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Standards/Approvals UL, CSA, CE

Datasheet - PIA01CB235A

COO (Country of Origin):: IT

The Carlo Gavazzi PIA01 is a precise AC/DC over current monitoring relays. Direct measuring or through current transformer. Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the relay status. Through the built-in shunt it is possible to monitor loads up to 5 A

AC/DC.

Adjustable current limit on relative scale

Adjustable hysteresis

Programmable latching at set level

Output of 8 A SPDT relay normally de-energized

For mounting on DIN-rail in accordance with plug-in module (PIA01)

Carlo Gavazzi Monitoring Relay, 1 Phase, SPDT, 230V ac
