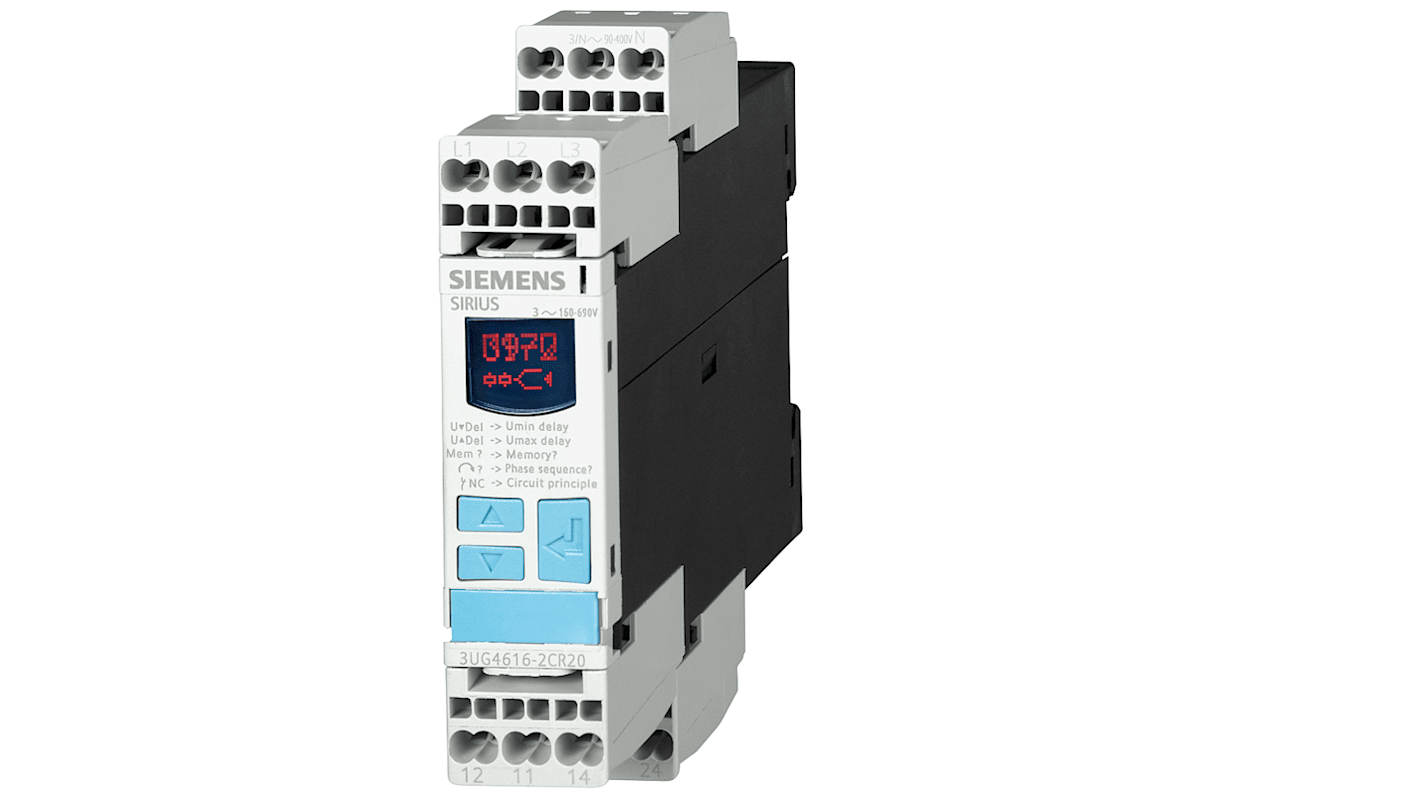

Siemens Monitoring Relay, 3 Phase, DPDT, Snap-On, 320V ac, 500 V ac

RS 제품 번호:: 213-1305
제조사 부품 번호:: 3UG4616-2CR20
제조업체:: Siemens

Siemens Monitoring Relay, 3 Phase, DPDT, Snap-On, 320V ac, 500 V ac

현재 액세스할 수 없는 재고 정보

RS 제품 번호:: 213-1305
제조사 부품 번호:: 3UG4616-2CR20
제조업체:: Siemens

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siemens
	Product Type	Monitoring Relay
	Electrical Phase	3
	Contact Configuration	DPDT
	Mount Type	Snap-On
	Terminal Type	Spring Terminal
	IP Rating	IP20
	Supply AC Voltage	320, 500V ac
	Contact Current	5A
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Width	22.5mm
	Height	103mm
	Length	91mm
	Standards/Approvals	CE, UL, RoHS, CCC, RCM, EAC
	Series	3UG4

	모두 선택
	브랜드 Siemens
	Product Type Monitoring Relay
	Electrical Phase 3
	Contact Configuration DPDT
	Mount Type Snap-On
	Terminal Type Spring Terminal
	IP Rating IP20
	Supply AC Voltage 320, 500V ac
	Contact Current 5A
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Width 22.5mm
	Height 103mm
	Length 91mm
	Standards/Approvals CE, UL, RoHS, CCC, RCM, EAC
	Series 3UG4

COO (Country of Origin):: DE

The Siemens 3UG series is a didital monitoring relay. The monitoring function is of phase monitoring. With 1 change-over contacts for Umax and 1 change-over contacts for Umin with screw terminal connection system.

It has a protection class rating of IP20.

Product function Auto-reset is possible

galvanic isolation between entrance and outlet

Siemens Monitoring Relay, 3 Phase, DPDT, Snap-On, 320V ac, 500 V ac
