Broyce Control Monitoring Relay, 3 NO, DIN Rail 85 to 265 V dc
- RS 제품 번호:
- 188-3541
- 제조사 부품 번호:
- LR44/5N 100-230V AC/DC
- 제조업체:
- Broyce Control
Subtotal (1 unit)*
₩156,546.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩156,546.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 188-3541
- 제조사 부품 번호:
- LR44/5N 100-230V AC/DC
- 제조업체:
- Broyce Control
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Broyce Control | |
| Product Type | Monitoring Relay | |
| Function | Sparkproof, Undervoltage Monitoring, Stillson Pipe, Window | |
| Contact Configuration | 3 NO | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Contact Current | 8A | |
| Supply DC Voltage | 85 to 265 V dc | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL Listed, ISO 9001:2015, DIN 44081, DIN 43880 | |
| Height | 85mm | |
| Length | 63.5mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Broyce Control | ||
Product Type Monitoring Relay | ||
Function Sparkproof, Undervoltage Monitoring, Stillson Pipe, Window | ||
Contact Configuration 3 NO | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Contact Current 8A | ||
Supply DC Voltage 85 to 265 V dc | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL Listed, ISO 9001:2015, DIN 44081, DIN 43880 | ||
Height 85mm | ||
Length 63.5mm | ||
- COO (Country of Origin):
- GB

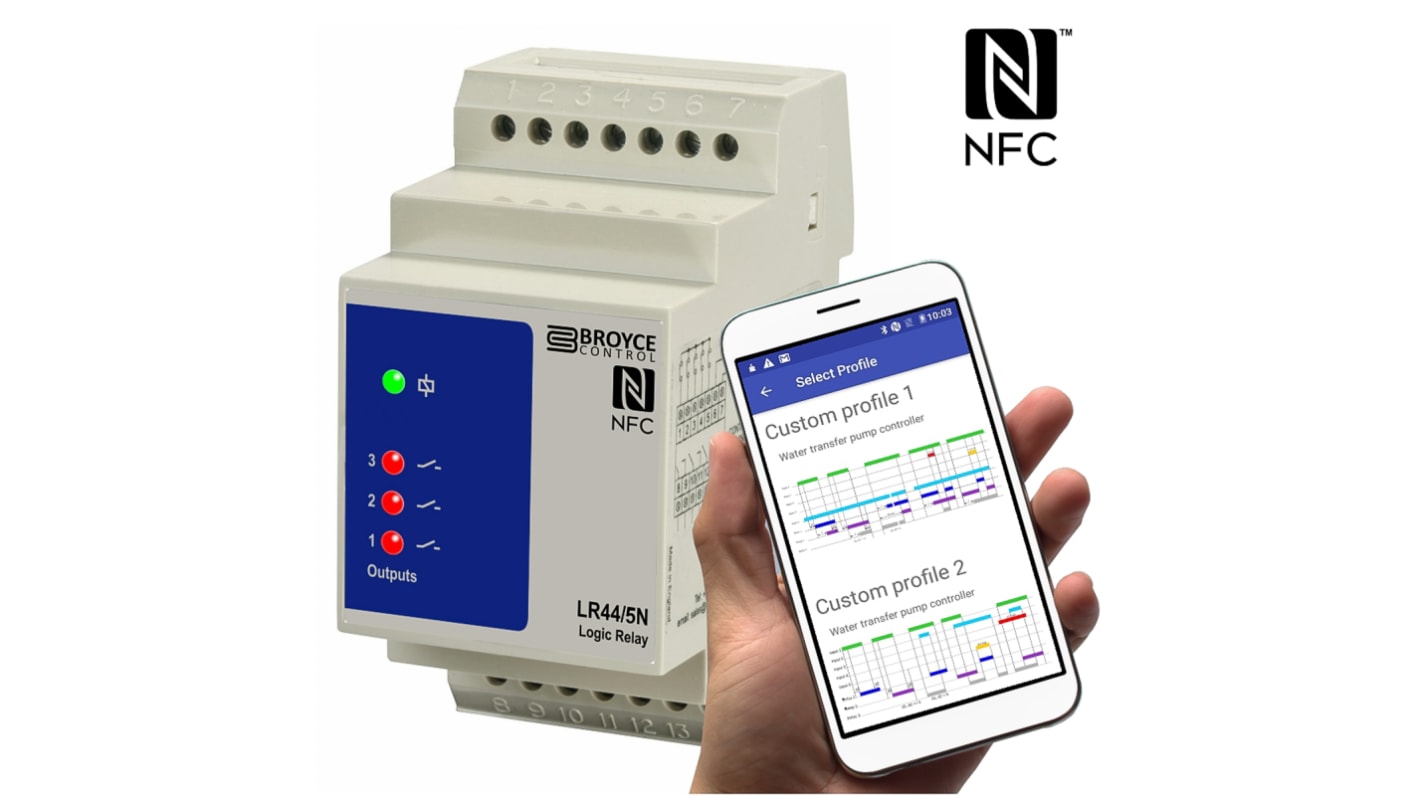

Logic Relay - 3 Outputs
Built-in NFC
Accepts up to 5, Voltage-free, N.O. contacts
Adjustable time setting
Wide auxiliary operating supply voltage (85 - 265V AC/DC)
3 x SPNO relays outputs - 5A
Green LED indication for supply and NFC status
Individual Red LED indication for relay status
Benefits:
Pre-defined profiles
Quick to set up using app
Fully programmable
Mini PLC operation using gate logic (AND, NAND, NOR, OR)
Clone settings on further units
Program power applied without
Customisable
Suits applications requiring multiple pump control
