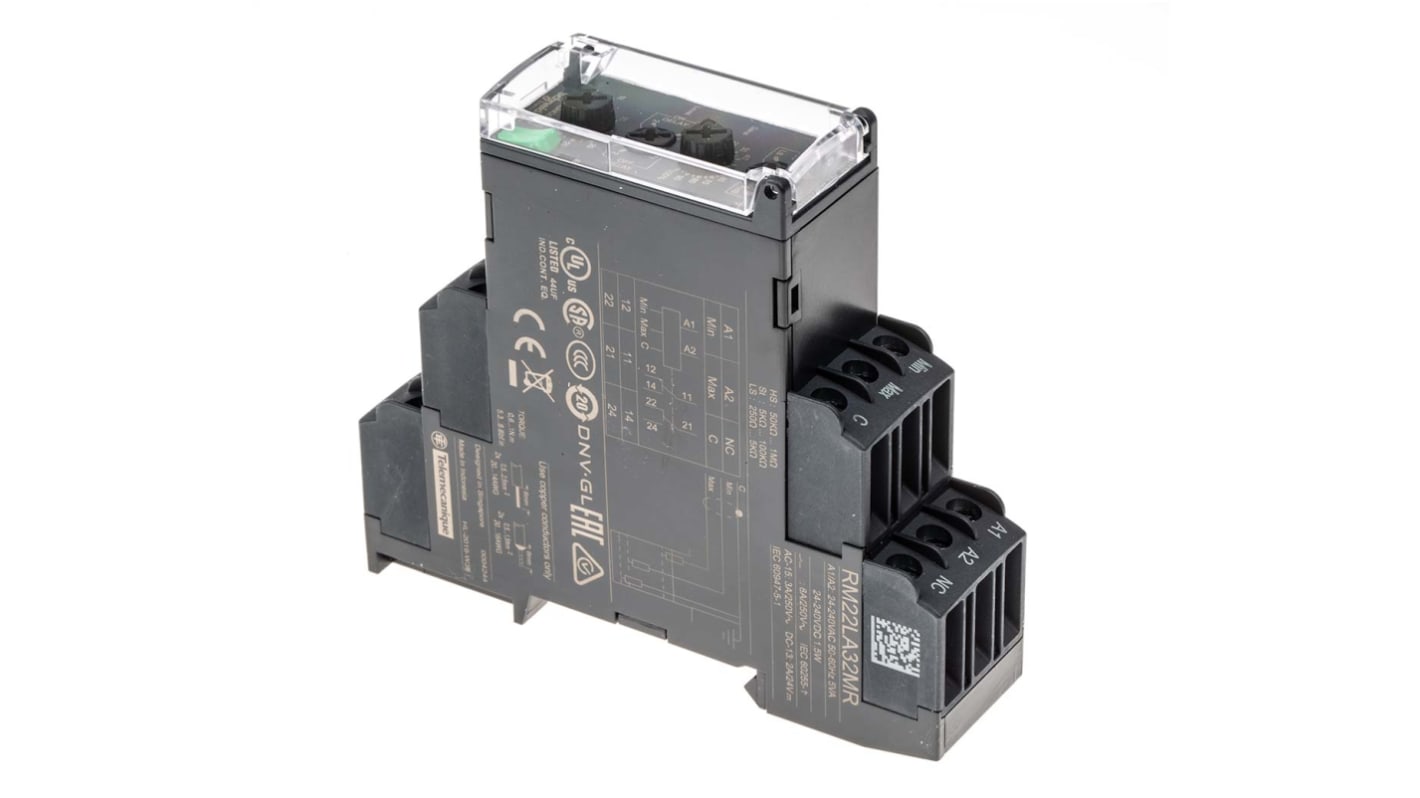

Schneider Electric Monitoring Relay, 1 Phase, DPDT, DIN Rail, 24V ac, 240 V ac 24 to 240 V ac
- RS 제품 번호:
- 124-0180
- Distrelec 제품 번호:
- 301-12-079
- 제조사 부품 번호:
- RM22LA32MR
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩208,357.50
재고있음
- 추가로 2026년 5월 18일 부터 30 개 단위 배송
- 추가로 2026년 6월 26일 부터 8 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩208,357.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 124-0180
- Distrelec 제품 번호:
- 301-12-079
- 제조사 부품 번호:
- RM22LA32MR
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Switching Voltage | 250V ac | |
| Power Consumption | 5VA | |
| Terminal Type | Screw | |
| Time Delay | 0.1 to 30 s | |
| IP Rating | IP20, IP40, IP50 | |
| Contact Current | 8A | |
| Minimum Operating Temperature | -20°C | |
| Supply AC Voltage | 24, 240V ac | |
| Supply DC Voltage | 24 to 240 V ac | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-30, IEC 60255-27, REACH, RoHS | |
| Series | Harmony Control | |
| Length | 79.5mm | |
| Height | 90mm | |
| Width | 22.9mm | |
| Measurement Range | 250 Ω to 1 MΩ | |
| Better World Product | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Switching Voltage 250V ac | ||
Power Consumption 5VA | ||
Terminal Type Screw | ||
Time Delay 0.1 to 30 s | ||
IP Rating IP20, IP40, IP50 | ||
Contact Current 8A | ||
Minimum Operating Temperature -20°C | ||
Supply AC Voltage 24, 240V ac | ||
Supply DC Voltage 24 to 240 V ac | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-30, IEC 60255-27, REACH, RoHS | ||
Series Harmony Control | ||
Length 79.5mm | ||
Height 90mm | ||
Width 22.9mm | ||
Measurement Range 250 Ω to 1 MΩ | ||
Better World Product Yes | ||
Schneider Electric Single-Phase Level Monitoring Relay, 5 to 100% Sensitivity, 1.5W DC - Zelio Series - RM22LA32MR
Use this monitoring relay from Schneider Electric to control a pump and maintain a set liquid level in a tank. It has front-facing screw trimmers that let you adjust its settings with ease. For versatility, you can set its sensitivity range between 5 and 100%, giving you precise control. Its durable plastic housing is self-extinguishing for safety in the event of a fire. Thanks to a substantial lifespan of 10 million mechanical cycles, it's a long-lasting choice.
• Low power consumption of 1.5W DC for energy efficiency
• Can be mounted in any position for flexible setup
• LED indicators for simple status monitoring
• Contacts are cadmium-free to minimise the risk of environmental contamination
• Wide operating temperature range between -20°C and +60°C for use in harsh environments
Applications
• Industrial pumps and fans
• Water treatment facilities
• Food and beverage production
How does this relay work?
When the sensor probe in the tank detects a drop or rise in the liquid level, it sends a signal to this monitoring relay, which causes the pump to turn on or off.
