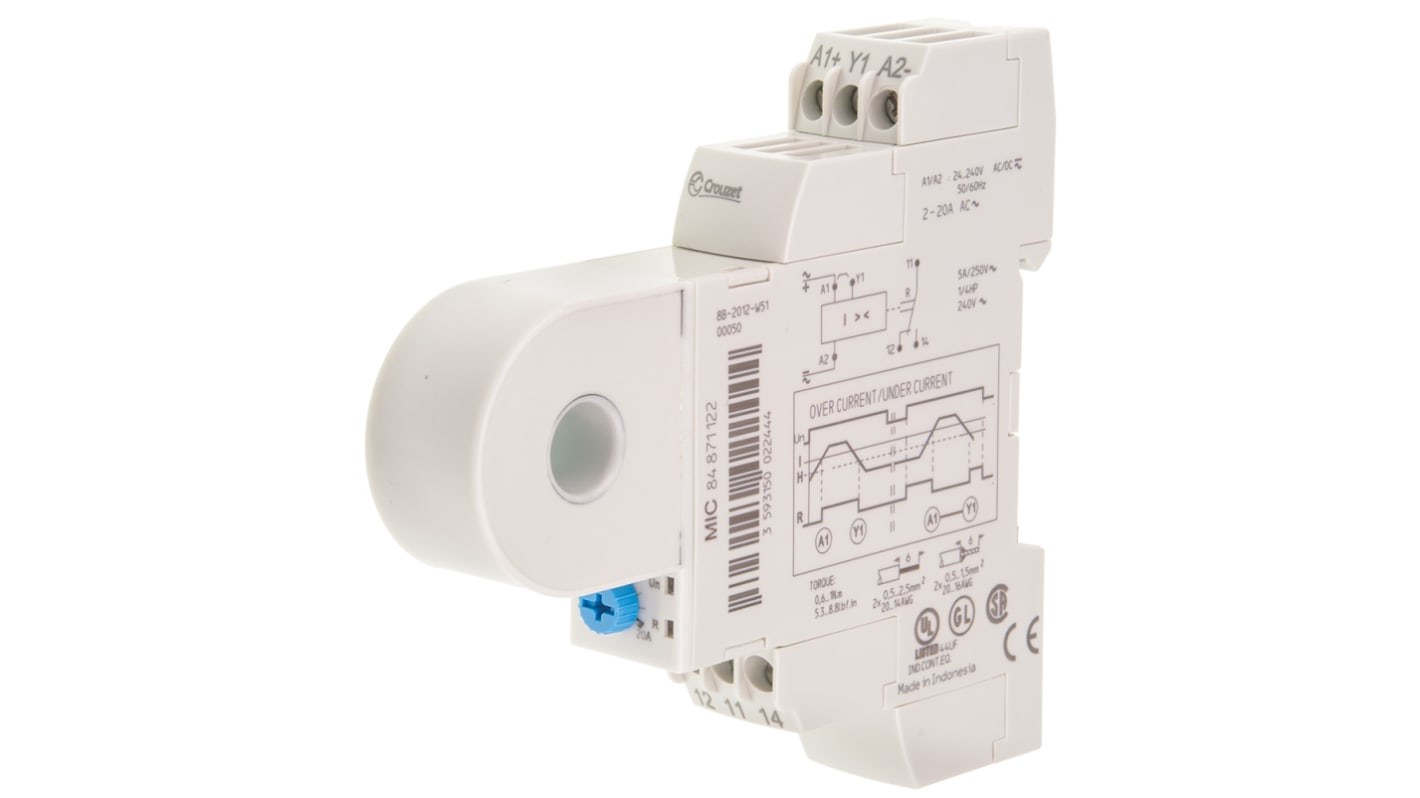

Crouzet Monitoring Relay, 1 NO/1 NC, DIN Rail, 2A to 20A, 24 to 240 V dc, 24V ac, 240 V ac
- RS 제품 번호:
- 261-959
- Distrelec 제품 번호:
- 137-54-864
- 제조사 부품 번호:
- 84871122
- 제조업체:
- Crouzet
Subtotal (1 unit)*
₩226,434.00
재고있음
- 19 개 단위 배송 준비 완료
- 추가로 2026년 7월 20일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩226,434.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 261-959
- Distrelec 제품 번호:
- 137-54-864
- 제조사 부품 번호:
- 84871122
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Product Type | Monitoring Relay | |
| Contact Configuration | 1 NO/1 NC | |
| Mount Type | DIN Rail | |
| Minimum Current Sensed | 2A | |
| Maximum Current Sensed | 20A | |
| Power Consumption | 3VA | |
| Current Sensitivity | Undercurrent, Overcurrent | |
| Terminal Type | Screw | |
| IP Rating | IP20, IP30 | |
| Time Delay | 500 ms | |
| Supply AC Voltage | 24, 240V ac | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 24 to 240 V dc | |
| Maximum Operating Temperature | 50°C | |
| Width | 17.5mm | |
| Series | MIC | |
| Standards/Approvals | RoHS, CSA, GL, CE, UL | |
| Length | 97mm | |
| Height | 90mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Product Type Monitoring Relay | ||
Contact Configuration 1 NO/1 NC | ||
Mount Type DIN Rail | ||
Minimum Current Sensed 2A | ||
Maximum Current Sensed 20A | ||
Power Consumption 3VA | ||
Current Sensitivity Undercurrent, Overcurrent | ||
Terminal Type Screw | ||
IP Rating IP20, IP30 | ||
Time Delay 500 ms | ||
Supply AC Voltage 24, 240V ac | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 24 to 240 V dc | ||
Maximum Operating Temperature 50°C | ||
Width 17.5mm | ||
Series MIC | ||
Standards/Approvals RoHS, CSA, GL, CE, UL | ||
Length 97mm | ||
Height 90mm | ||
- COO (Country of Origin):
- ID
Single Function Toroidal Current Control Relay - C-Lynx
The MIC control relay is designed to control overcurrents (or undercurrents).
This MIC current monitoring relay from Crouzet has a host of excellent features, including a built-in current transformer, LED display, true RMS measurement and protection type IP30 (casing)/IP20 (terminals).
Control of AC currents
Built-in current transformer
Measurement ranges from 2A to 20A
Supply voltage: 24 V to 240 V
Choice of output relay action
True RMS measurement
