Siretta RS232, RJ12 2G, 4G Modem

RS 제품 번호:: 185-3055
제조사 부품 번호:: ZETA-NLP-LTEM (GL)
제조업체:: Siretta

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩396,379.20

재고있음

35 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 4	₩396,379.20
5 - 24	₩388,445.60
25 +	₩380,681.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 185-3055
제조사 부품 번호:: ZETA-NLP-LTEM (GL)
제조업체:: Siretta

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siretta
	Modem Type	2G, 4G
	Connection Type	RS232, RJ12
	Nominal Supply Voltage	5 V → 42V dc
	Supported Frequency Bands	LTE: B1(2100MHz), B2(1900MHz), B3(1800MHz), B4(AWS1700MHz), B5(850MHz), B8(900MHz), B12(700MHz), B13(700MHz), B18(800MHz), B19(800MHz), B20(800MHz), B26(850MHz), B28(700MHz) <BR/>GSM: B2(1900MHz), B3(1800MHz), B5(850MHz), B8(900MHz)
	Weight	90g
	Depth	28mm
	Height	93mm
	Width	67mm

	모두 선택
	브랜드 Siretta
	Modem Type 2G, 4G
	Connection Type RS232, RJ12
	Nominal Supply Voltage 5 V → 42V dc
	Supported Frequency Bands LTE: B1(2100MHz), B2(1900MHz), B3(1800MHz), B4(AWS1700MHz), B5(850MHz), B8(900MHz), B12(700MHz), B13(700MHz), B18(800MHz), B19(800MHz), B20(800MHz), B26(850MHz), B28(700MHz) <BR/>GSM: B2(1900MHz), B3(1800MHz), B5(850MHz), B8(900MHz)
	Weight 90g
	Depth 28mm
	Height 93mm
	Width 67mm

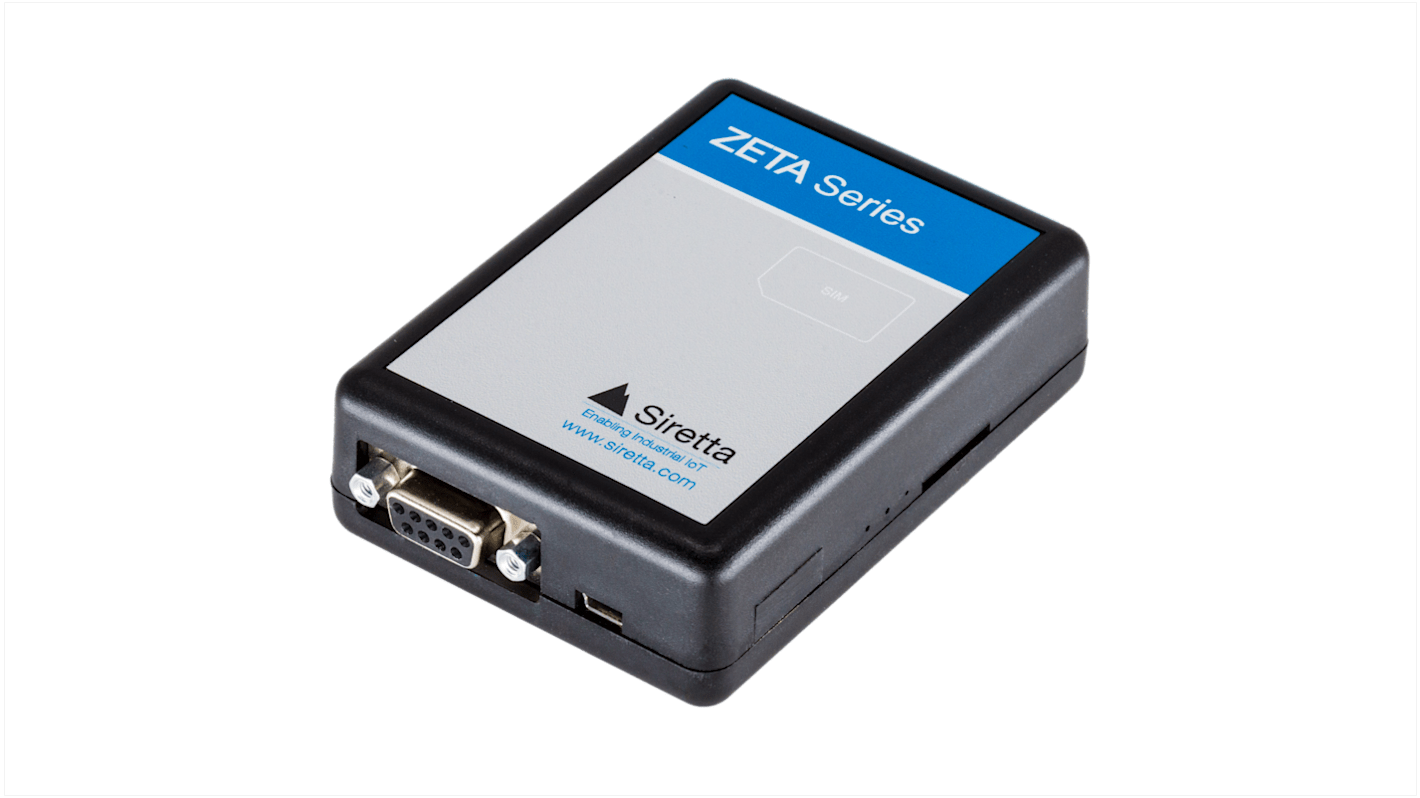

Siretta ZETA-NLP-LTEM(GL)

The ZETA-NLP-LTEM (GL) is a cutting edge, extremely low power industrial modem. It will connect equipment to the new global LTE Cat M1 and NB1 networks as they become available also providing connectivity to the existing global 2G / GSM cellular network. The modem is able to operate in an extremely low power state which makes it ideal for use in industrial IoT applications today and for long term future developments.

The unique feature of the ZETA-NLP-LTEM (GL) allows it to run in an ultra low power state due to its intelligent power saving design. Additionally the range offers interface options including legacy RS232 for connection to existing equipment and a high speed USB interface.

Features & Benefits

LTE UE Category M1/NB1
13 Bands LTE-M: B1 (2100MHz),B2 (1900MHz), B3 (1800MHz), B4 (AWS 1700MHz), B5 (850MHz), B8 (900MHz), B12 (700MHz), B13 (700MHz), B18 (800MHz), B19 (800MHz), B20 (800MHz), B26 (850MHz), B28 (700MHz)
4 Bands GSM: B2 (1900MHz), B3 (1800MHz), B5 (850MHz),B8 (900MHz)
3GPP release 13 compliant
Half Duplex FDD
3GPP Rel. 12 Power Saving Mode (PSM)
3GPP Rel. 13 Discontinuous Reception (eDRX)
3GPP Rel. 13 Extended coverage
SIM Application Tool Kit 3GPP TS 51.01
Control via AT commands according to 3GPP
TS27.005, 27.007 and customized AT commands
IPv4/IPv6 stack with TCP and UDP protocol

Physical Interfaces

1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS
1 x RJ12 power connection (5 – 42V)
1 x SMA female cellular antenna connector
1 x standard mini SIM (2FF push-push)
3 x external LED status indicators (Red, Green, Blue)

Applications

Access Control Systems
Car Parking Payment
Environmental Monitoring
Vending Machines
Agriculture
Tank Monitoring
Alarm Panels
Industrial Sensors
Automatic Meter Reading
Utilities

Certifications

CE
UKCA
RoHS
