Siretta RS232, USB 2.0, RJ12 Modem Starter Kit

RS 제품 번호:: 176-7059
제조사 부품 번호:: ZETA-N2-GPRS STARTER KIT
제조업체:: Siretta

Siretta RS232, USB 2.0, RJ12 Modem Starter Kit

사용할 수 없음

RS는 더 이상 이 제품을 입고하지 않습니다.

RS 제품 번호:: 176-7059
제조사 부품 번호:: ZETA-N2-GPRS STARTER KIT
제조업체:: Siretta

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siretta
	Product Type	Modem Starter Kit
	Interface Type	RS232, USB 2.0, RJ12
	Weight	104g
	RF Protocols	CSD, GPRS, GSM
	Supply Voltage	42 V dc
	Antenna Connector	SMA Female
	SIM Socket	Yes
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	CE
	Depth	28mm
	Width	67 mm
	Height	93mm

	모두 선택
	브랜드 Siretta
	Product Type Modem Starter Kit
	Interface Type RS232, USB 2.0, RJ12
	Weight 104g
	RF Protocols CSD, GPRS, GSM
	Supply Voltage 42 V dc
	Antenna Connector SMA Female
	SIM Socket Yes
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals CE
	Depth 28mm
	Width 67 mm
	Height 93mm

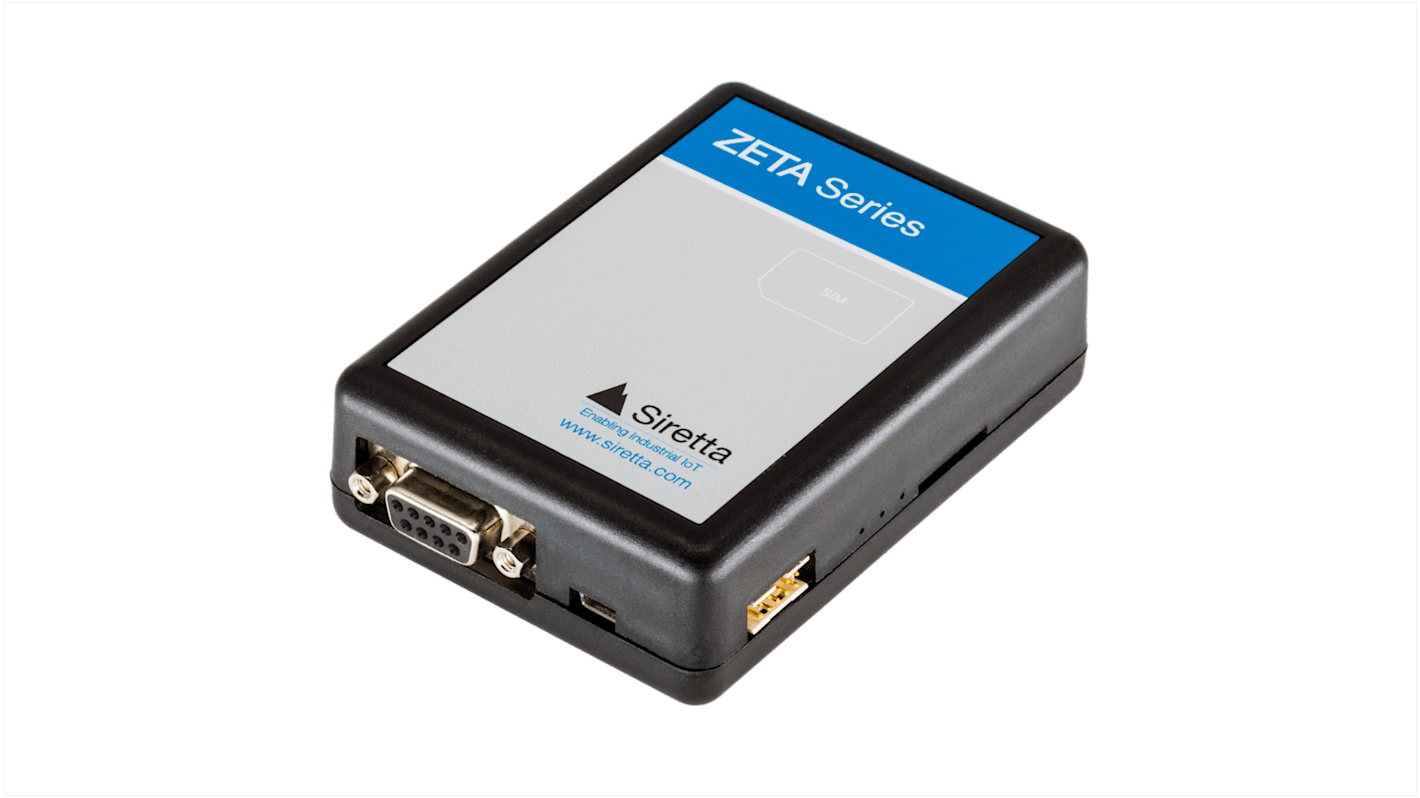

Siretta ZETA-N2-GPRS STARTER KIT

The ZETA-N2-GPRS is an industrial modem designed for connecting equipment to the 2G / GSM cellular network. It has a global coverage quadband GPRS class 10 cellular engine offering CSD fall back. The device offers a high level of functionality in a compact “plug and play ”housing and provides RS232 & USB serial data interfaces in addition to a 10-way GPIO connector which offers a secondary TTL serial port, general purpose IO and an ADC. It is ideal for integrating in to a wide range of IoT applications that require reliable and stable data connectivity

Features & Benefits

4 Bands GSM/GPRS: 850/900/1800/1900MHz

SMS text and PDU message mode

SIM Access Profile

SIM Application Tool Kit 3GPP TS 51.014

Control via standard AT commands 3GPP TS7.005.27.007

Extended AT command set

Serial port multiplexer 3GPP TS27.010

Embedded UDP/TCP/FTP/SMTP stack

Physical Interfaces

1 x RS232 serial port interface (5-wire)

1 x USB 2.0 FS

1 x RJ12 power connection (5 - 42V)

Nominal supply 12V

Power on & power off control

1 x SMA female cellular antenna connector

1 x SIM card reader (push-push) 3V, 1.8V

5 x GPIO (Input 0-42V, Output 0-3.3V)

1 x ADC (0-42V)

1 x RS232 secondary serial port (3-wire TTL)

External LED status indicators

Applications

Access Control Systems

Car Parking Payment

Vending Machines

Agriculture

Tank Monitoring

Alarm Panels

Dialup Cellular Connectivity

Automatic Meter Reading

Accessories Included

1 x Cellular Antenna

1 x 1.5M RS232 - USB Cable

1 x 1M USB Mini B Cable

1 x RJ12 Power Pigtail

1 x Multi Head Power Adaptor

Certifications

UKCA

RoHS
