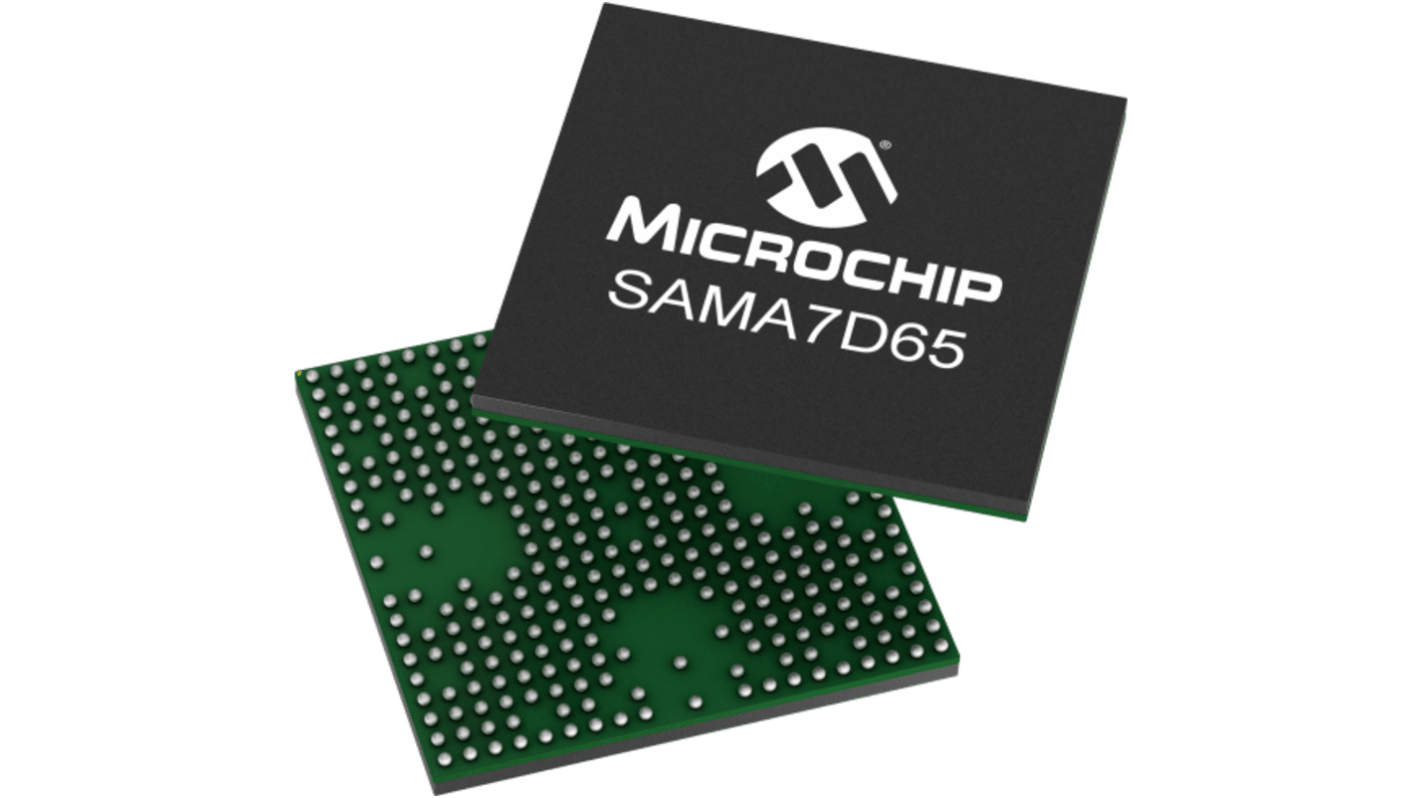

Microchip SAMA7D65D1GT-V/4UB-SL3 ARM Cortex A7 Microprocessor SAMA7D6 32 bit ARM V7-A 1 GHz 427-Pin TFBGA
- RS 제품 번호:
- 425-088
- 제조사 부품 번호:
- SAMA7D65D1GT-V/4UB-SL3
- 제조업체:
- Microchip
Subtotal (1 reel of 1000 units)*
₩34,921,000.00
일시적 품절
- 2026년 4월 14일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 1000 + | ₩34,921.00 | ₩34,920,248.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 425-088
- 제조사 부품 번호:
- SAMA7D65D1GT-V/4UB-SL3
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Microprocessor | |
| Series | SAMA7D6 | |
| Device Core | ARM Cortex A7 | |
| Data Bus Width | 32bit | |
| Instruction Set Architecture | ARM V7-A | |
| Maximum Clock Frequency | 1GHz | |
| Interface Type | LVDS, MIPI-DSI, CAN FD, Ethernet, MMC, DDR3, DDR2, USB, LPDDR2, DDR3L, I3C, SPI, LPDDR3, RGB, NAND | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 5.5V | |
| Package Type | TFBGA | |
| Pin Count | 427 | |
| Maximum Supply Voltage | 2.7V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Length | 14mm | |
| Standards/Approvals | IEEE 802.1Qav, IEEE 802.3az, FIPS PUB 140-2, NIST 800-22, FIPS PUB 197, FIPS PUB 46-3, IEEE1588, IEEE 802.1AS, FIPS PUB 140-3 | |
| Width | 14 mm | |
| Height | 1.2mm | |
| Number of Cores | 1 | |
| Automotive Standard | AEC-Q100 Grade 2 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Microprocessor | ||
Series SAMA7D6 | ||
Device Core ARM Cortex A7 | ||
Data Bus Width 32bit | ||
Instruction Set Architecture ARM V7-A | ||
Maximum Clock Frequency 1GHz | ||
Interface Type LVDS, MIPI-DSI, CAN FD, Ethernet, MMC, DDR3, DDR2, USB, LPDDR2, DDR3L, I3C, SPI, LPDDR3, RGB, NAND | ||
Mount Type Surface | ||
Minimum Supply Voltage 5.5V | ||
Package Type TFBGA | ||
Pin Count 427 | ||
Maximum Supply Voltage 2.7V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Length 14mm | ||
Standards/Approvals IEEE 802.1Qav, IEEE 802.3az, FIPS PUB 140-2, NIST 800-22, FIPS PUB 197, FIPS PUB 46-3, IEEE1588, IEEE 802.1AS, FIPS PUB 140-3 | ||
Width 14 mm | ||
Height 1.2mm | ||
Number of Cores 1 | ||
Automotive Standard AEC-Q100 Grade 2 | ||
The Microchip Microprocessor is a high-performance embedded MPU based on the Arm Cortex-A7 CPU, designed for HMI and connectivity applications in markets such as home/building, industrial, appliance, and medical industries. Operating at up to 1 GHz, it supports a variety of memory types including DDR2, DDR3, LPDDR2, LPDDR3, NAND Flash, e.MMC, and SD cards. Accompanied by a comprehensive development suite featuring mainline Linux and Microchip's MPLAB X/Harmony v3 software framework, it provides developers with powerful tools to create advanced, connected systems with high computational performance and flexibility.
256 Kbytes of L2 cache
Up to 1 GHz operational frequency
Voltage and frequency scaling support
64-bit generic timers
One Watchdog Timer running on RC oscillator
Register write protection
