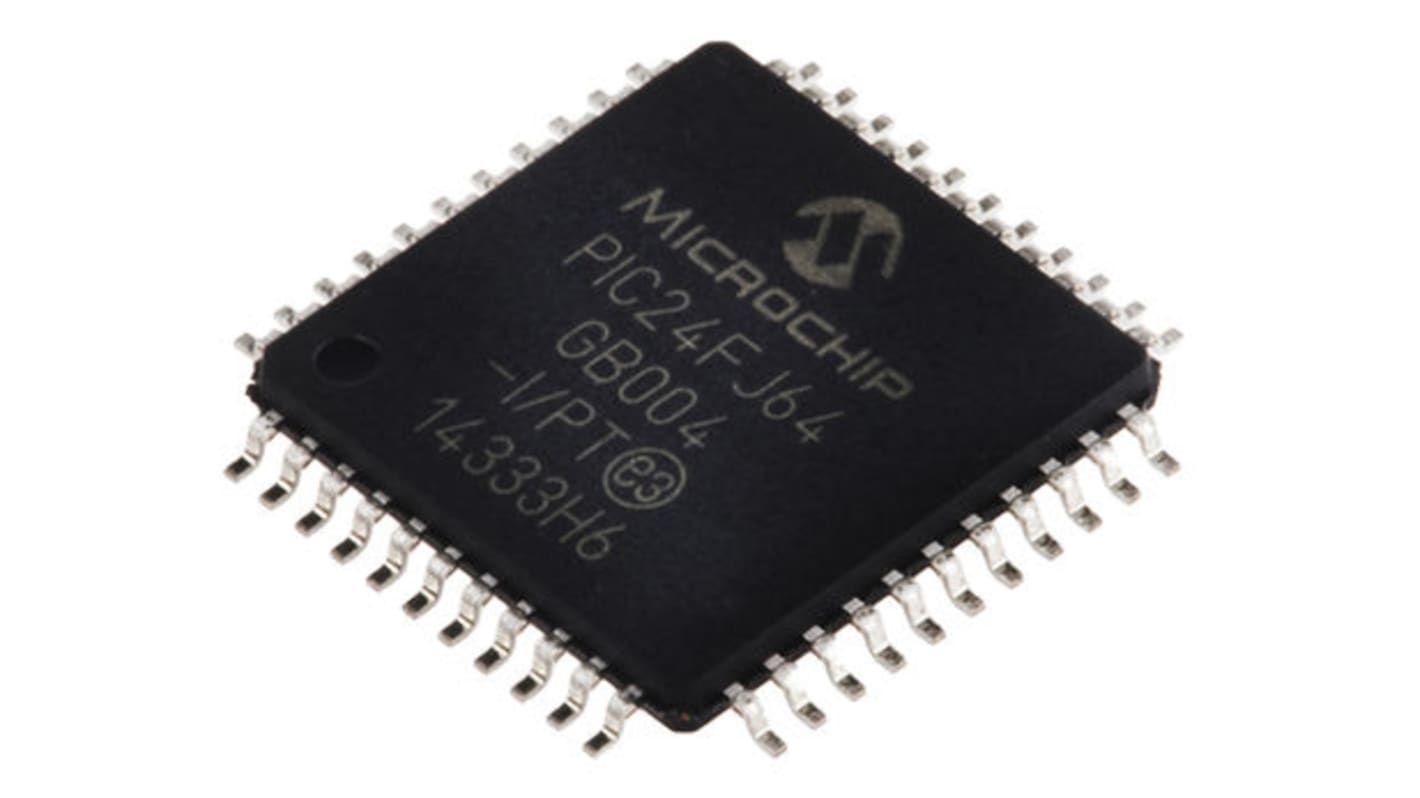

Microchip, 16bit PIC, PIC24FJ Microcontroller, 32MHz, 64 kB Flash, 44-Pin TQFP
- RS 제품 번호:
- 889-5806
- 제조사 부품 번호:
- PIC24FJ64GB004-I/PT
- 제조업체:
- Microchip
가격 개당가격(160개가 1트레이안에)**
₩8,570.92
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 | Per Tray** |
|---|---|---|
| 160 - 640 | ₩8,570.92 | ₩1,371,256.96 |
| 800 + | ₩8,399.84 | ₩1,343,824.00 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 889-5806
- 제조사 부품 번호:
- PIC24FJ64GB004-I/PT
- 제조업체:
- Microchip
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Family Name | PIC24FJ | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 44 | |
| Device Core | PIC | |
| Data Bus Width | 16bit | |
| Program Memory Size | 64 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 8 kB | |
| USB Channels | 1 x OTG | |
| Number of PWM Units | 5 | |
| Number of SPI Channels | 2 | |
| Typical Operating Supply Voltage | 2 → 3.6 V | |
| Number of UART Channels | 2 | |
| Number of USART Channels | 0 | |
| Number of I2C Channels | 2 | |
| Number of CAN Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Length | 10mm | |
| ADCs | 13 x 10 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | RISC | |
| Number of ADC Units | 1 | |
| Dimensions | 10 x 10 x 1.05mm | |
| Pulse Width Modulation | 5 (Compare/PWM) | |
| Program Memory Type | Flash | |
| Height | 1.05mm | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Number of LIN Channels | 0 | |
| Width | 10mm | |
