Microchip, 8 bit PIC, PIC16F1509 Microcontroller, 20 MHz, 14kB FLASH, 20-Pin SOIC

RS 제품 번호:: 761-7510
제조사 부품 번호:: PIC16F1509-I/SO
제조업체:: Microchip

Microchip, 8 bit PIC, PIC16F1509 Microcontroller, 20 MHz, 14kB FLASH, 20-Pin SOIC

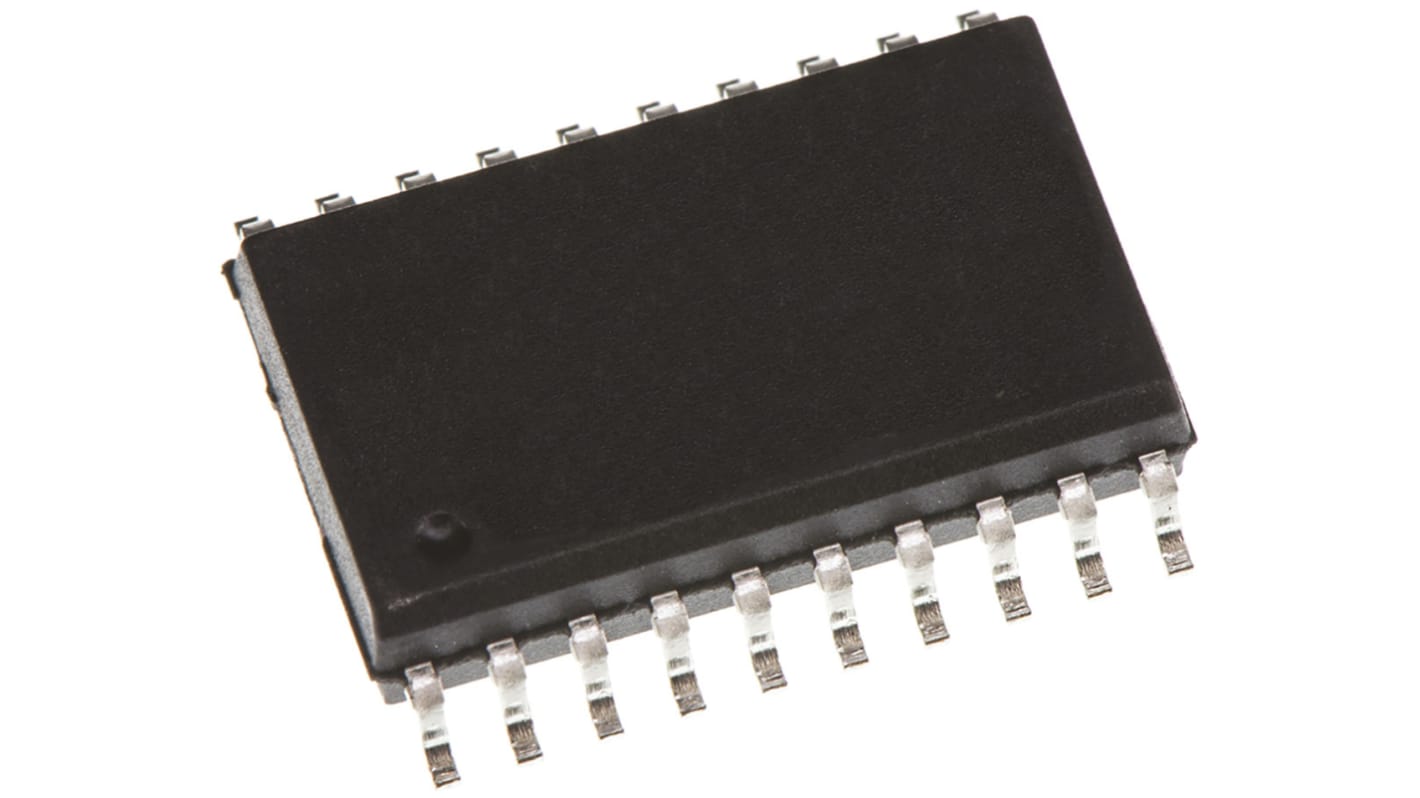

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 3 units)*

₩7,219.20

마지막 RS 재고

21 개 단위 배송 준비 완료
2025년 12월 31일 부터 최종 27 개 단위 배송

수량	한팩당	한팩당*
3 - 6	₩2,406.40	₩7,219.20
9 - 15	₩2,355.64	₩7,068.80
18 +	₩2,306.76	₩6,918.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 761-7510
제조사 부품 번호:: PIC16F1509-I/SO
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Microcontroller
	Series	PIC16F1509
	Package Type	SOIC
	Mount Type	Surface
	Pin Count	20
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	14kB
	Maximum Clock Frequency	20MHz
	RAM Size	512bit
	Maximum Supply Voltage	5.5V
	DACs	1 x 5 Bit
	Minimum Operating Temperature	-40°C
	Analogue Comparators	2
	Maximum Power Dissipation Pd	800mW
	Number of Programmable I/Os	18
	Maximum Operating Temperature	85°C
	Length	12.8mm
	Standards/Approvals	RoHS
	Height	2.05mm
	Width	7.5 mm
	Minimum Supply Voltage	2.3V
	Automotive Standard	ISO/TS 16949
	Instruction Set Architecture	RISC
	Number of Timers	3
	Program Memory Type	FLASH
	ADCs	12 x 10 Bit

	모두 선택
	브랜드 Microchip
	Product Type Microcontroller
	Series PIC16F1509
	Package Type SOIC
	Mount Type Surface
	Pin Count 20
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 14kB
	Maximum Clock Frequency 20MHz
	RAM Size 512bit
	Maximum Supply Voltage 5.5V
	DACs 1 x 5 Bit
	Minimum Operating Temperature -40°C
	Analogue Comparators 2
	Maximum Power Dissipation Pd 800mW
	Number of Programmable I/Os 18
	Maximum Operating Temperature 85°C
	Length 12.8mm
	Standards/Approvals RoHS
	Height 2.05mm
	Width 7.5 mm
	Minimum Supply Voltage 2.3V
	Automotive Standard ISO/TS 16949
	Instruction Set Architecture RISC
	Number of Timers 3
	Program Memory Type FLASH
	ADCs 12 x 10 Bit

PIC16F1508/1509 8-Bit Flash Microcontrollers

The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F1508/1509 family of microcontrollers is based upon Microchip’s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory with data memory of up to 512 bytes RAM. On board is a configurable oscillator with ±1% accuracy.

Microcontroller Features

20 MHz Max. CPU Speed

49 Instructions

16 Level Hardware Stack

16 MHz Internal Oscillator – Selectable Frequency Range 16 MHz to 32 kHz

18 I/O Pins

XLP Technology

Power-On Reset (POR)

Power-Up Timer (PWRT)

Programmable Low Power Brown-Out Reset (LPBOR)

Extended Watchdog Timer (WDT)

In-Circuit Serial Programming (ICSP)

In-Circuit Debug (ICD)

Peripherals

12 Channel 10-bit Analogue to Digital Converter (ADC)

5-bit Digital to Analogue Converter (DAC)

Two Comparators

Voltage Reference

Two 8-bit Timers

One 16-bit Timer

Four 10-bit PWM Modules

Master Synchronous Serial Port (MSSP) with SPI and I2C

Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

Four Configurable Logic Cell (CLC) Modules

Numerically Controlled Oscillator (NCO)

Complimentary Waveform Generator (CWG)
