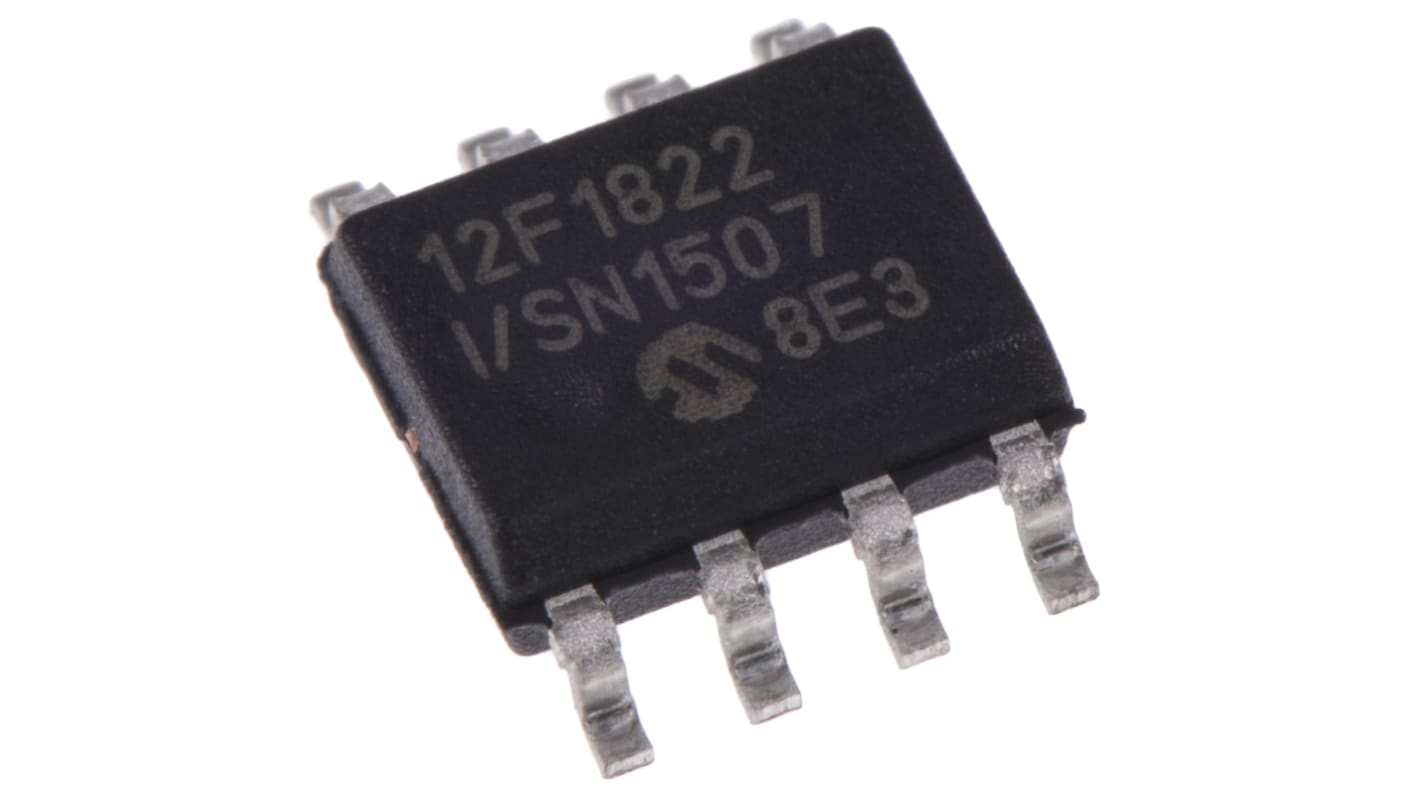

Microchip, 8bit PIC, PIC12 Microcontroller, 32MHz, 256 B, 2K x 14 words Flash, 8-Pin SOIC

모든 Microcontrollers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩1,898.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 09일 부터 60 개 단위 배송
  • 추가로 2025년 12월 16일 부터 282 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 24₩1,898.80
25 - 49₩1,861.20
50 +₩1,823.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
703-7885
Distrelec 제품 번호:
301-21-016
제조사 부품 번호:
PIC12F1822-I/SN
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Family Name

PIC12

Package Type

SOIC

Mounting Type

Surface Mount

Pin Count

8

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

256 B, 2K x 14 words

Maximum Frequency

32MHz

RAM Size

128 B

USB Channels

0

Number of PWM Units

1

Number of SPI Channels

1

Number of I2C Channels

1

Number of UART Channels

0

Typical Operating Supply Voltage

1.8 → 5.5 V

Number of USART Channels

1

Number of CAN Channels

0

Length

4.9mm

ADCs

4 x 10 bit

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

Program Memory Type

Flash

Number of PCI Channels

0

Number of Ethernet Channels

0

Number of LIN Channels

0

Height

1.5mm

Dimensions

4.9 x 3.9 x 1.5mm

Instruction Set Architecture

RISC

Width

3.9mm

Pulse Width Modulation

1(ECCP Half Bridge)

Minimum Operating Temperature

-40 °C

PIC12F1822/1840 8-Bit Flash Microcontrollers


Microchip’s PIC12 Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added.

The PIC12F1822/1840 family of microcontrollers is based upon Microchip’s enhanced mid-range core that features a deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 3.5 Kbytes program memory and data memory of 128 bytes. On board is a configurable RC oscillator with ±1% accuracy.

Features


49 Instructions

16 Level Hardware Stack

16 MHz Internal Oscillator – Selectable Output Range from 16 MHz to 31 kHz

6 I/O Pins

1 Comparator

4 Channel 10-bit Analogue to Digital Converter (ADC)

4 Channel Capacitive Sensing (mTouch™) Module

Two 8-bit Timers

One 16-bit Timer

1 Enhanced Capture, Compare PWM (ECCP) Modules

Master Synchronous Serial Port (MSSP) with SPI and I2C

EUSART

In Circuit Serial Programming (ICSP)

Extreme Low Power (XLP) Technology

Microchip PIC12F 8-bit PIC® Microcontrollers


Microchip’s PIC12F Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as Microchip adds extra features, further improves specifications and continues to offer ever greater value. Key to the success of the PIC12F was the internal RC oscillator that allowed six I/O channels in an 8-pin package. Later versions of this RC oscillator are configurable between 31kHz and 32MHz.
