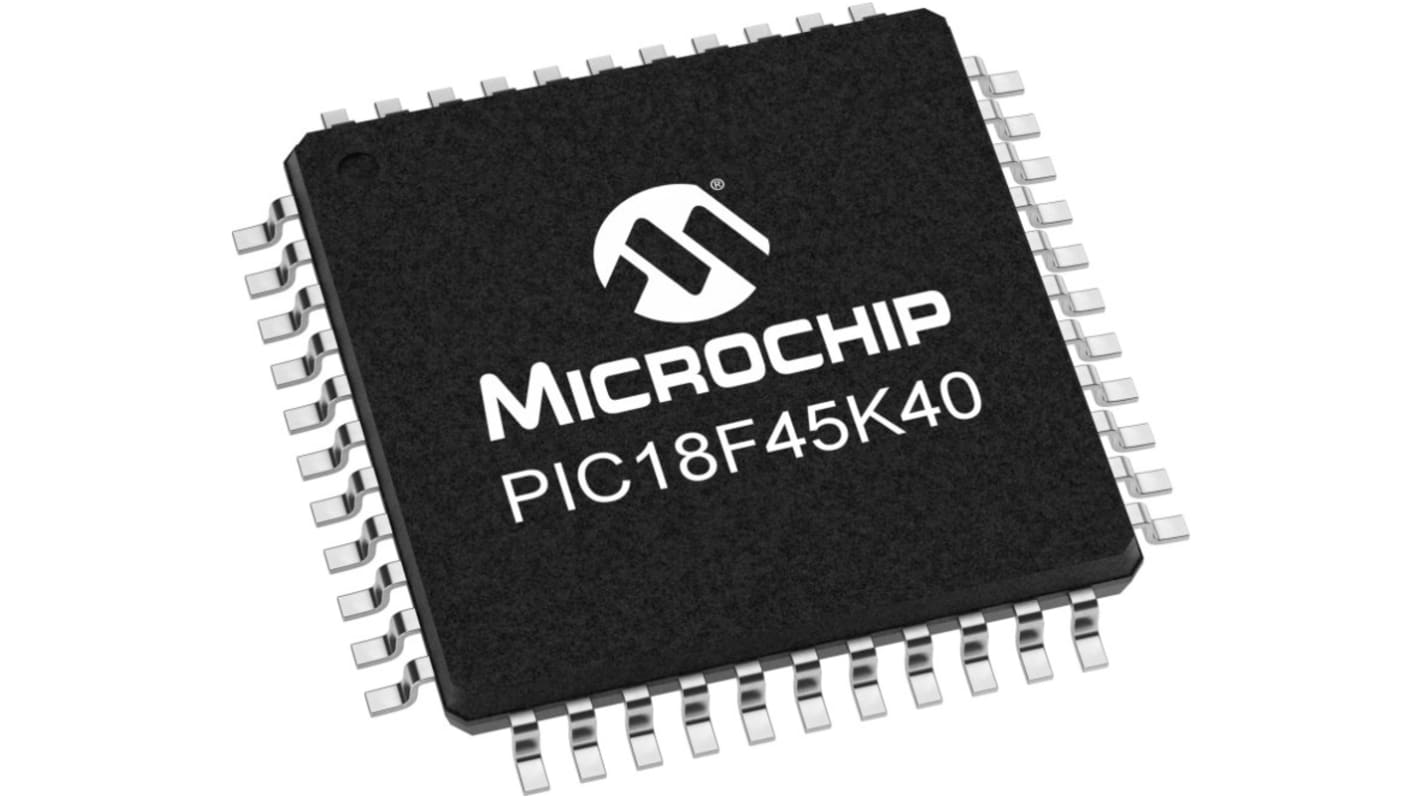

Microchip PIC18LF45K40-I/PT PIC, PIC18 Microcontroller, 32kB FLASH, 44-Pin TQFP

모든 Microcontrollers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩15,265.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 320 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
5 - 5₩3,053.12₩15,265.60
10 - 20₩2,992.96₩14,964.80
25 - 45₩2,932.80₩14,664.00
50 - 70₩2,876.40₩14,382.00
75 +₩2,816.24₩14,081.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
264-8148
제조사 부품 번호:
PIC18LF45K40-I/PT
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Series

PIC18

Product Type

Microcontroller

Package Type

TQFP

Mount Type

Surface

Pin Count

44

Device Core

PIC

Program Memory Size

32kB

RAM Size

2kB

Maximum Supply Voltage

5.5V

Analogue Comparators

2

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Minimum Supply Voltage

2V

Program Memory Type

FLASH

ADCs

8 bit

Instruction Set Architecture

MCU

Automotive Standard

No

The Microchip PIC series 8bit low power, high performance MCU features analog, core independent peripherals and communication peripherals, combined with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. It is equipped with a 10-bit ADC with computation (ADCC) automating capacitive voltage divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and performing automatic threshold comparisons. It has 32 KB flash memory, 2KB RAM, 256B EEPROM and 44 pins. It's operating temperature ranges between -40°C to +85°C (Industrial).

PIC18 Core with 83 instructions, 31 stack levels

Internal 64MHz oscillator

1.8V – 5.5V operating voltage range

24 x 10-bit ADC channels

Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders

CRC with memory scan

Windowed Watchdog Timer (WWDT)

Three 8-bit Timers/Counters

Four 16-bit Timers/Counters

Three power saving operating modes
