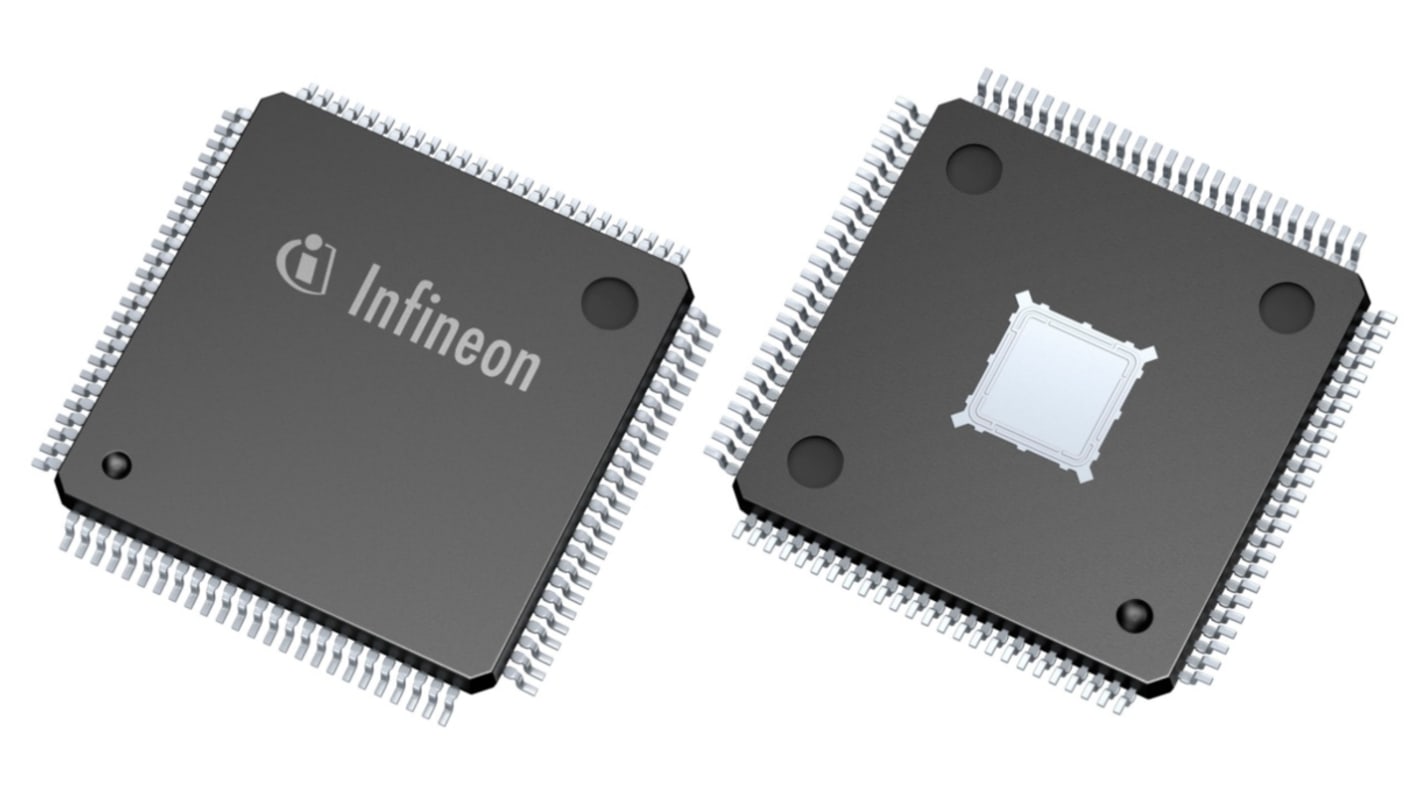

Infineon XMC4400F100K512BAXUMA1, 32 bit ARM Cortex M4, XMC4000 Microcontroller, 120 MHz, 512kB FLASH, 100-Pin LFBGA

RS 제품 번호:: 258-1754
제조사 부품 번호:: XMC4400F100K512BAXUMA1
제조업체:: Infineon

Infineon XMC4400F100K512BAXUMA1, 32 bit ARM Cortex M4, XMC4000 Microcontroller, 120 MHz, 512kB FLASH, 100-Pin LFBGA

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩18,386.40

재고있음

959 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩18,386.40
10 - 99	₩16,901.20
100 - 249	₩16,186.80
250 - 499	₩14,288.00
500 +	₩13,592.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 258-1754
제조사 부품 번호:: XMC4400F100K512BAXUMA1
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	Microcontroller
	Series	XMC4000
	Package Type	LFBGA
	Mount Type	Surface
	Pin Count	100
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Interface Type	LIN, IIS, IIC, CAN, SPI, USIC, USB, USART, UART
	Program Memory Size	512kB
	Maximum Clock Frequency	120MHz
	RAM Size	80kB
	Maximum Supply Voltage	3.63V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Width	14 mm
	Number of Programmable I/Os	75
	Length	14mm
	Standards/Approvals	RoHS
	Height	1.4mm
	Minimum Supply Voltage	3.13V
	Program Memory Type	FLASH
	ADCs	24 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	Thumb-2

	모두 선택
	브랜드 Infineon
	Product Type Microcontroller
	Series XMC4000
	Package Type LFBGA
	Mount Type Surface
	Pin Count 100
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Interface Type LIN, IIS, IIC, CAN, SPI, USIC, USB, USART, UART
	Program Memory Size 512kB
	Maximum Clock Frequency 120MHz
	RAM Size 80kB
	Maximum Supply Voltage 3.63V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Width 14 mm
	Number of Programmable I/Os 75
	Length 14mm
	Standards/Approvals RoHS
	Height 1.4mm
	Minimum Supply Voltage 3.13V
	Program Memory Type FLASH
	ADCs 24 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture Thumb-2

Infineon Microcontroller, 512kByte Program Memory size, 100 Pin Count - XMC4400F100K512BAXUMA1

This microcontroller features an ARM Cortex M4 core. With a compact LFBGA package, it integrates a surface mount design suitable for various applications. This powerful device operates at a maximum frequency of 120MHz and is equipped with 512kByte flash memory and 80KB RAM.

Features & Benefits

• High performance with a 120MHz ARM microcontroller for efficient processing

• 80KB RAM microcontroller enables smooth multitasking

• Dual CAN channels for versatile communication options

• Designed to operate in high temperature ranges up to +125°C

• Surface mount microcontroller suitable for space-constrained usage

Applications

• Ideal for industrial automation systems requiring robust processing power

• Suitable for motor control in the mechatronics field

• Well-suited for automotive control systems with dual CAN functionality

• Applied in power management and conversion in electronics

• Utilised in data acquisition systems needing high-speed processing

What makes this microcontroller suitable for industrial applications?

Its high-performance ARM Cortex M4 core allows it to handle complex tasks efficiently, while the robust and reliable design ensures durability in harsh industrial environments.

How does the memory capacity enhance performance in embedded systems?

The 512kByte flash memory supports large-scale applications, enabling the storage of extensive firmware and user programmes. The 80KB RAM improves operational speed, allowing for effective multitasking and data processing.

Are there specific requirements for the power supply?

It typically operates within a voltage 13V to 3.63V, ensuring compatibility with a wide variety of power systems and enhancing versatility in deployment scenarios.

How can dual CAN channels benefit a design?

The dual CAN channels facilitate multiple communication paths within a single system, enabling high-speed data transmission for complex interconnected devices in automotive and automation applications.
