제조사부품번호

Silicon Labs EFM32PG23B200F512IM40-C, 32 bit ARM 32 Bit Cortex M4 Microcontroller, 80 MHz, 512kB FLASH, 40-Pin QFN

RS 제품 번호:: 257-6312
제조사 부품 번호:: EFM32PG23B200F512IM40-C
제조업체:: Silicon Labs

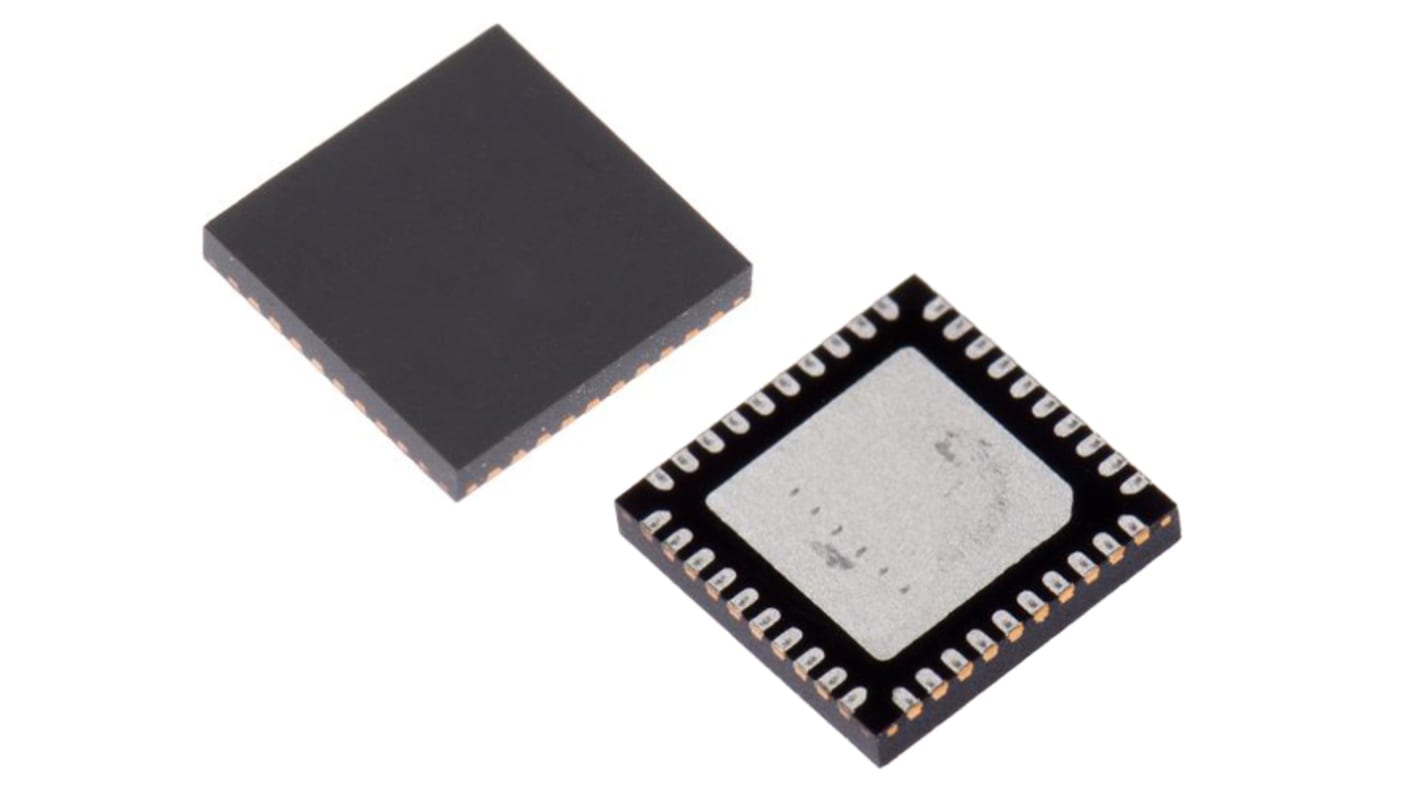

Silicon Labs EFM32PG23B200F512IM40-C, 32 bit ARM 32 Bit Cortex M4 Microcontroller, 80 MHz, 512kB FLASH, 40-Pin QFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 tray of 200 units)*

₩906,912.00

일시적 품절

2026년 4월 06일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
200 +	₩4,534.56	₩907,024.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 257-6312
제조사 부품 번호:: EFM32PG23B200F512IM40-C
제조업체:: Silicon Labs

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Silicon Labs
	Product Type	Microcontroller
	Package Type	QFN
	Mount Type	Surface
	Pin Count	40
	Device Core	ARM 32 Bit Cortex M4
	Data Bus Width	32bit
	Program Memory Size	512kB
	Maximum Clock Frequency	80MHz
	RAM Size	64kB
	Maximum Supply Voltage	3.8V
	Minimum Operating Temperature	-40°C
	DACs	2 Channel
	Number of Programmable I/Os	34
	Analogue Comparators	2
	Maximum Operating Temperature	125°C
	Width	5 mm
	Length	5mm
	Height	0.85mm
	Standards/Approvals	IrDA, SMBus, ISO 7816
	Minimum Supply Voltage	1.71V
	Program Memory Type	FLASH
	ADCs	12, 1x 16 Channel IADC, 16, 20 Bit
	Instruction Set Architecture	Arm Cortex
	Number of Timers	10
	Automotive Standard	No

	모두 선택
	브랜드 Silicon Labs
	Product Type Microcontroller
	Package Type QFN
	Mount Type Surface
	Pin Count 40
	Device Core ARM 32 Bit Cortex M4
	Data Bus Width 32bit
	Program Memory Size 512kB
	Maximum Clock Frequency 80MHz
	RAM Size 64kB
	Maximum Supply Voltage 3.8V
	Minimum Operating Temperature -40°C
	DACs 2 Channel
	Number of Programmable I/Os 34
	Analogue Comparators 2
	Maximum Operating Temperature 125°C
	Width 5 mm
	Length 5mm
	Height 0.85mm
	Standards/Approvals IrDA, SMBus, ISO 7816
	Minimum Supply Voltage 1.71V
	Program Memory Type FLASH
	ADCs 12, 1x 16 Channel IADC, 16, 20 Bit
	Instruction Set Architecture Arm Cortex
	Number of Timers 10
	Automotive Standard No

Datasheet - EFM32PG23B200F512IM40-C

The Silicon Labs EFM32PG23 Gecko family of microcontrollers is part of the series 2 Gecko portfolio. EFM32PG23 Gecko MCUs are ideal for enabling energy-friendly embedded applications.

32-bit ARM Cortex-M33 core with 80 MHz maximum operating frequency

Up to 512 kB of flash and 64 kB of RAM

Robust peripheral set and up to 34 GPIO

Low energy operation

21 uA/MHz (EM0)

1.03 uA sleep (EM2)

16-channel ADC with options for 12, 16, or 20-bit resolution

Best-in-class security with Secure Vault

Silicon Labs EFM32PG23B200F512IM40-C, 32 bit ARM 32 Bit Cortex M4 Microcontroller, 80 MHz, 512kB FLASH, 40-Pin QFN
