제조사부품번호

Microchip PIC16F15344-I/SO, 8 bit PIC, PIC XLP 16F Microcontroller, 32 MHz, 7kB FLASH, 20-Pin SOIC

RS 제품 번호:: 236-8893
제조사 부품 번호:: PIC16F15344-I/SO
제조업체:: Microchip

Microchip PIC16F15344-I/SO, 8 bit PIC, PIC XLP 16F Microcontroller, 32 MHz, 7kB FLASH, 20-Pin SOIC

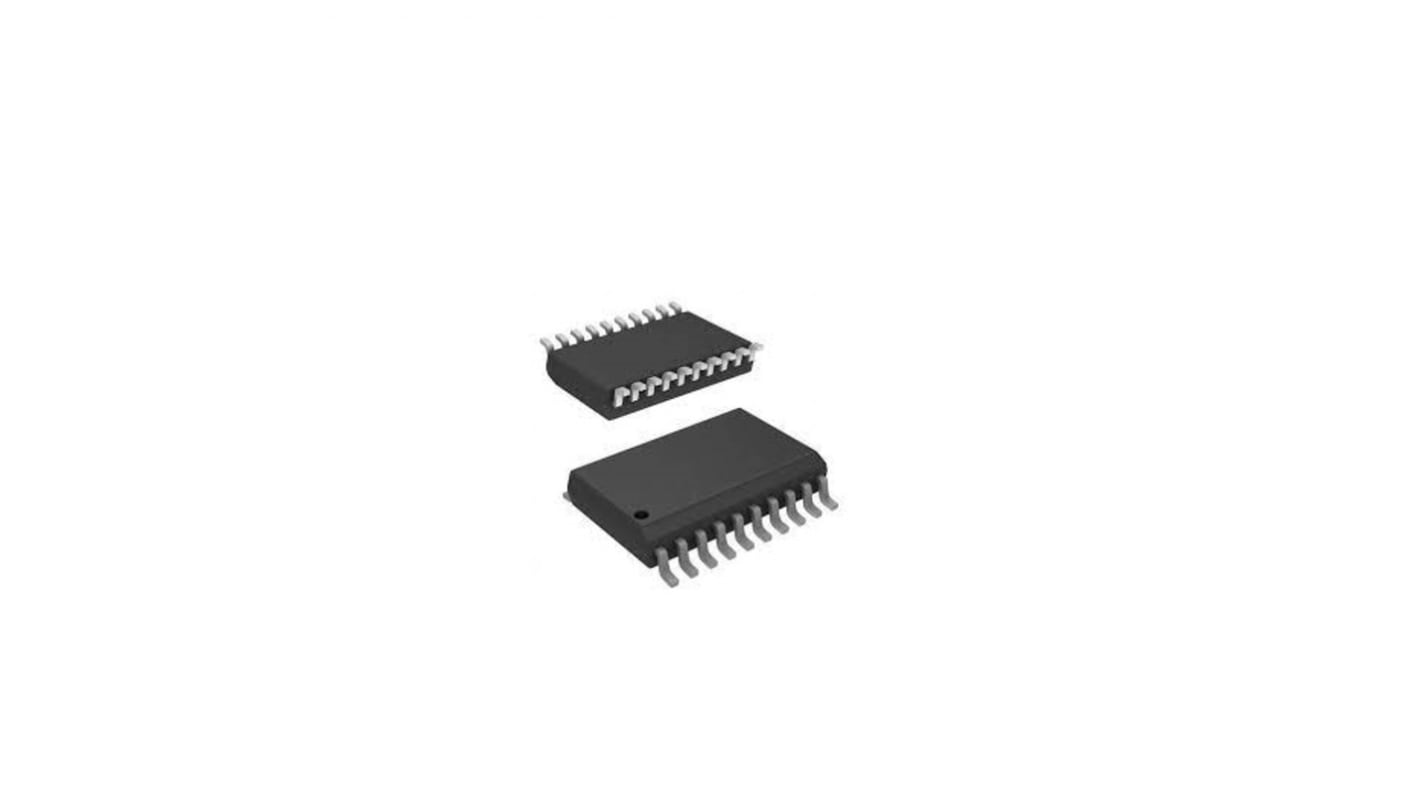

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 10 units)*

₩18,574.40

재고있음

490 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
10 - 20	₩1,857.44	₩18,574.40
30 - 100	₩1,819.84	₩18,198.40
110 +	₩1,782.24	₩17,822.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 236-8893
제조사 부품 번호:: PIC16F15344-I/SO
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Microcontroller
	Series	PIC XLP 16F
	Package Type	SOIC
	Mount Type	Surface
	Pin Count	20
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	7kB
	Maximum Clock Frequency	32MHz
	Maximum Supply Voltage	5.5V
	Analogue Comparators	2
	DACs	1 x 5 Bit
	Minimum Operating Temperature	-40°C
	Number of Programmable I/Os	18
	Maximum Operating Temperature	85°C
	Width	7.5 mm
	Standards/Approvals	REACH, RoHS3
	Minimum Supply Voltage	2.3V
	Automotive Standard	No
	Instruction Set Architecture	RISC
	Number of Timers	2
	ADCs	17 x 10 Bit
	Program Memory Type	FLASH

	모두 선택
	브랜드 Microchip
	Product Type Microcontroller
	Series PIC XLP 16F
	Package Type SOIC
	Mount Type Surface
	Pin Count 20
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 7kB
	Maximum Clock Frequency 32MHz
	Maximum Supply Voltage 5.5V
	Analogue Comparators 2
	DACs 1 x 5 Bit
	Minimum Operating Temperature -40°C
	Number of Programmable I/Os 18
	Maximum Operating Temperature 85°C
	Width 7.5 mm
	Standards/Approvals REACH, RoHS3
	Minimum Supply Voltage 2.3V
	Automotive Standard No
	Instruction Set Architecture RISC
	Number of Timers 2
	ADCs 17 x 10 Bit
	Program Memory Type FLASH

Datasheet - PIC16F15344-I/SO

The Microchip microcontroller features analog, core independent peripherals and communication peripherals, combined with eXtreme low power (XLP) technology for a wide range of general purpose and low power applications. The devices feature multiple PWMs, multiple communication, temperature sensor, and memory features like Memory Access Partition (MAP) to support customers in data protection and bootloader applications, and Device Information Area (DIA) which stores factory calibration values to help improve temperature sensor accuracy.

C Compiler optimized RISC architecture

DC 32 MHz clock input

125 ns minimum instruction cycle

Interrupt capability

16-Level deep hardware stack

8 bit Timer2 with hardware limit timer (HLT)

16-bit Timer0/1

Low current power on reset (POR)

Configurable Power up timer (PWRTE)

Brown out reset (BOR)

low power BOR (LPBOR) Option

Microchip PIC16F15344-I/SO, 8 bit PIC, PIC XLP 16F Microcontroller, 32 MHz, 7kB FLASH, 20-Pin SOIC
