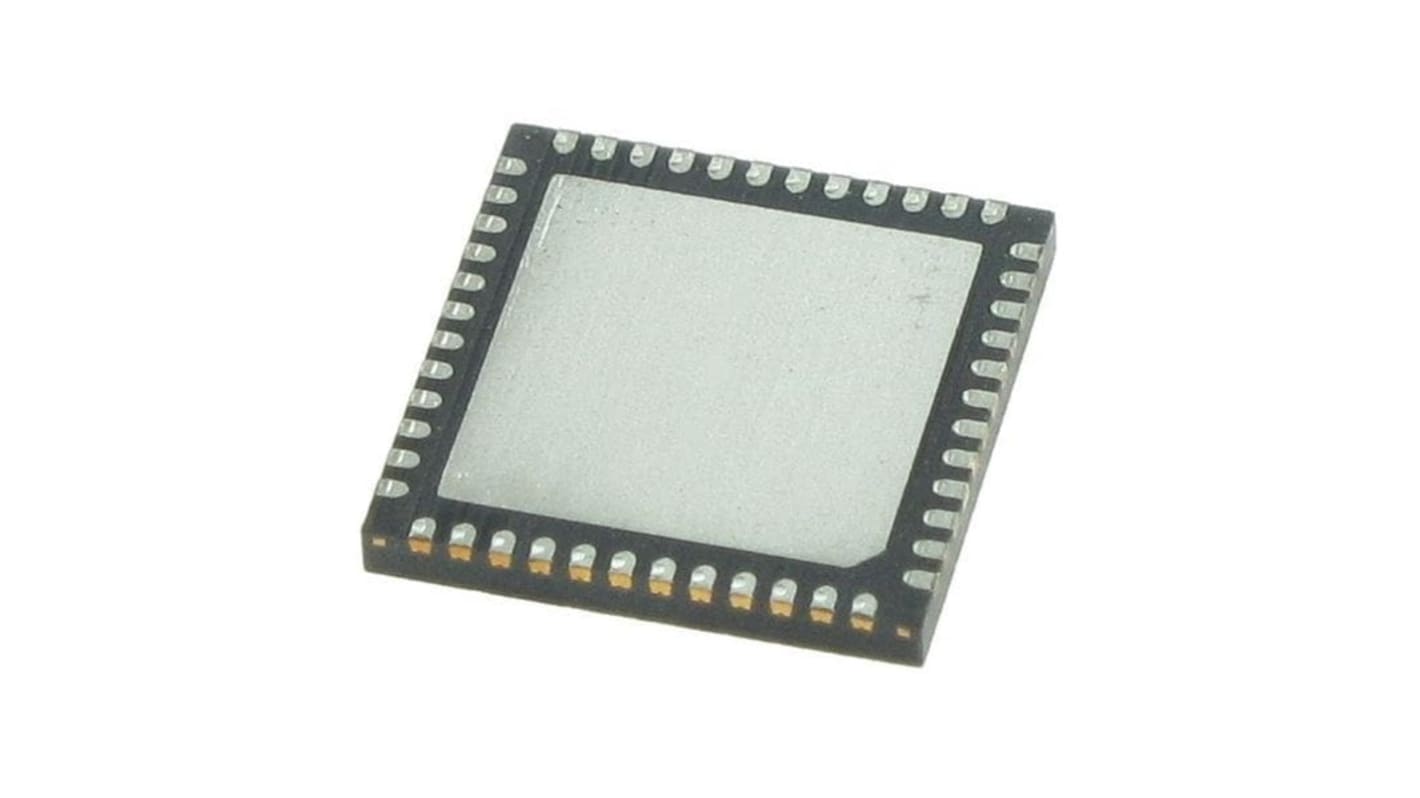

STMicroelectronics STM32WB55CGU6, 32 bit ARM Cortex M0+, ARM Cortex M4, STM32WB Microcontroller, 64 MHz, 1.024MB FLASH,

RS 제품 번호:: 233-3088
제조사 부품 번호:: STM32WB55CGU6
제조업체:: STMicroelectronics

STMicroelectronics STM32WB55CGU6, 32 bit ARM Cortex M0+, ARM Cortex M4, STM32WB Microcontroller, 64 MHz, 1.024MB FLASH,

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩15,460.00

일시적 품절

2027년 10월 25일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩15,460.00
10 - 49	₩15,160.00
50 - 99	₩14,860.00
100 - 199	₩14,520.00
200 +	₩14,240.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 233-3088
제조사 부품 번호:: STM32WB55CGU6
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Series	STM32WB
	Product Type	Microcontroller
	Package Type	UFQFPN
	Mount Type	Surface
	Pin Count	48
	Device Core	ARM Cortex M0+, ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1.024MB
	Maximum Clock Frequency	64MHz
	RAM Size	256kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Height	550μm
	Length	7mm
	Analogue Comparators	2
	Number of Programmable I/Os	72
	Width	7mm
	Maximum Power Dissipation Pd	803mW
	Standards/Approvals	No
	Minimum Supply Voltage	1.71V
	Program Memory Type	FLASH
	ADCs	1 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	RISC
	Number of Timers	7

	모두 선택
	브랜드 STMicroelectronics
	Series STM32WB
	Product Type Microcontroller
	Package Type UFQFPN
	Mount Type Surface
	Pin Count 48
	Device Core ARM Cortex M0+, ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1.024MB
	Maximum Clock Frequency 64MHz
	RAM Size 256kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Height 550μm
	Length 7mm
	Analogue Comparators 2
	Number of Programmable I/Os 72
	Width 7mm
	Maximum Power Dissipation Pd 803mW
	Standards/Approvals No
	Minimum Supply Voltage 1.71V
	Program Memory Type FLASH
	ADCs 1 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture RISC
	Number of Timers 7

Datasheet - STM32WB55CGU6

The STMicroelectronics STM32WB55xx multiprotocol wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy SIG specification 5.2 and with IEEE 802.15.4-2011. They contain a dedicated Arm® Cortex®-M0+ for performing all the real-time low layer operation. The devices are designed to be extremely low-power and are based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 64 MHz This core features a Floating point unit (FPU) single precision that supports all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) that enhances application security.

1x LPUART (low power)

2x SPI 32 Mbit/s

2x I2C (SMBus/PMBus)

1x SAI (dual channel high quality audio)

1x USB 2.0 FS device, crystal-less, BCD and LPM

Touch sensing controller, up to 18 sensors

LCD 8x40 with step-up converter

1x 16-bit, four channels Advanced timer

2x 16-bit, two channels timer

1x 32-bit, four channels timer
