STMicroelectronics STM32WB10CCU5, 32 bit ARM Cortex M0+, ARM Cortex M4, STM32WB Microcontroller, 64 MHz, 320kB FLASH,

RS 제품 번호:: 228-3046
제조사 부품 번호:: STM32WB10CCU5
제조업체:: STMicroelectronics

STMicroelectronics STM32WB10CCU5, 32 bit ARM Cortex M0+, ARM Cortex M4, STM32WB Microcontroller, 64 MHz, 320kB FLASH,

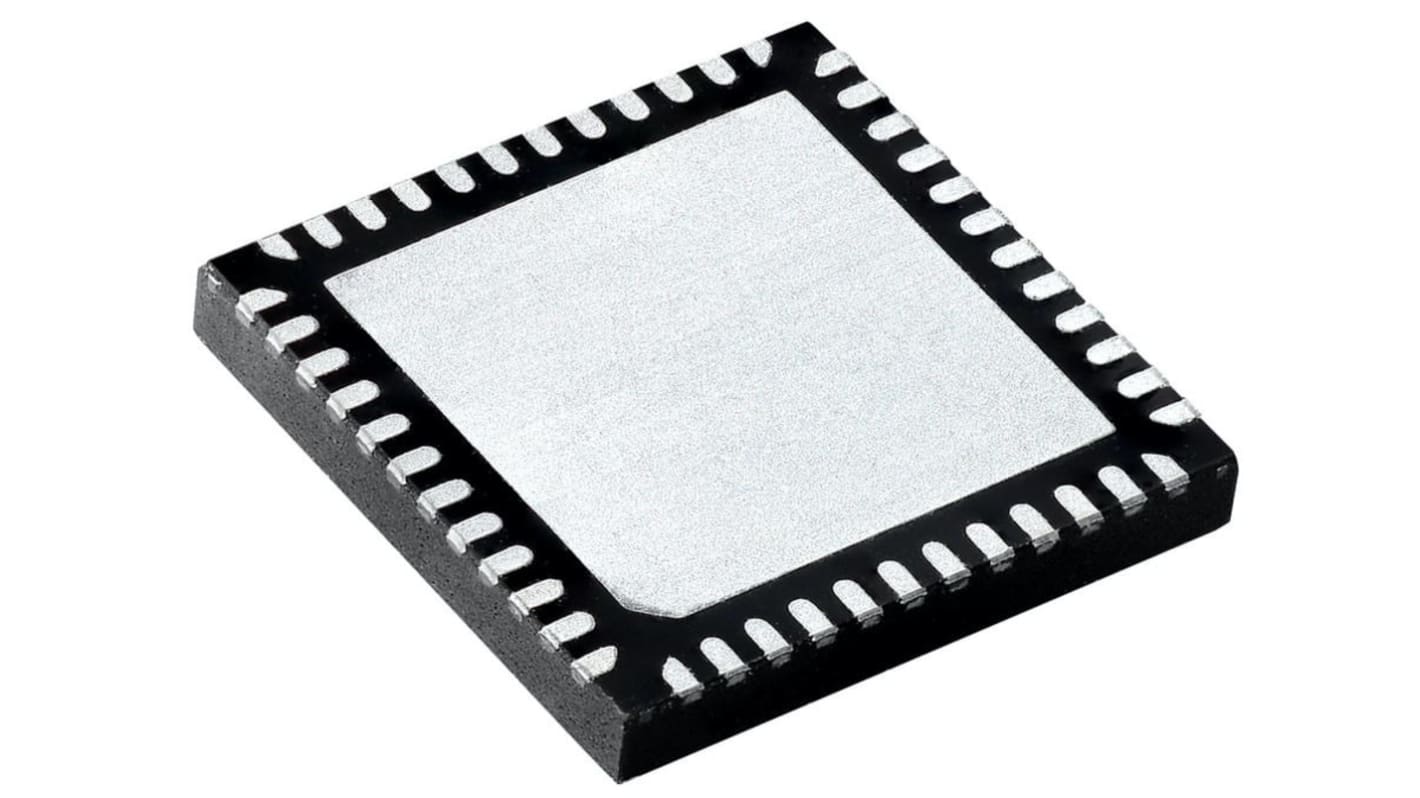

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (2 units, in packs of 2)*

₩12,660.00

160 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
2 - 8	₩6,330.00	₩12,660.00
10 - 98	₩6,170.00	₩12,340.00
100 - 248	₩6,000.00	₩12,000.00
250 +	₩5,850.00	₩11,700.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 228-3046
제조사 부품 번호:: STM32WB10CCU5
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Series	STM32WB
	Product Type	Microcontroller
	Package Type	UFQFPN
	Mount Type	Surface
	Pin Count	48
	Device Core	ARM Cortex M0+, ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	320kB
	Maximum Clock Frequency	64MHz
	RAM Size	48kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	85°C
	Height	0.6mm
	Maximum Power Dissipation Pd	722mW
	Length	7mm
	Standards/Approvals	FBI
	Width	7mm
	Number of Programmable I/Os	30
	Minimum Supply Voltage	2V
	Number of Timers	5
	Program Memory Type	FLASH
	ADCs	1 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	RISC

	모두 선택
	브랜드 STMicroelectronics
	Series STM32WB
	Product Type Microcontroller
	Package Type UFQFPN
	Mount Type Surface
	Pin Count 48
	Device Core ARM Cortex M0+, ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 320kB
	Maximum Clock Frequency 64MHz
	RAM Size 48kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 85°C
	Height 0.6mm
	Maximum Power Dissipation Pd 722mW
	Length 7mm
	Standards/Approvals FBI
	Width 7mm
	Number of Programmable I/Os 30
	Minimum Supply Voltage 2V
	Number of Timers 5
	Program Memory Type FLASH
	ADCs 1 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture RISC

Datasheet - STM32WB10CCU5

The STMicroelectronics STM32WB10CC multiprotocol wireless and ultra-low-power device embeds a powerful and ultra-low-power radio compliant with the Bluetooth Low Energy SIG specification 5.2. It contains a dedicated Arm Cortex-M0+ for performing all the real-time low layer operation. The device is designed to be extremely low-power and is based on the high-performance Arm Cortex-M4 32-bit RISC core operating at a frequency of up to 64 MHz. This core features a Floating point unit (FPU) single precision that supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) that enhances application security.

Includes ST state-of-the-art patented

technology

Radio 2.4 GHz

RF transceiver supporting Bluetooth® 5.2

specification

RX sensitivity: -95.5 dBm (Bluetooth® Low

Energy at 1 Mbps)

Programmable output power up to +4 dBm

with 1 dB steps

Integrated balun to reduce BOM
