제조사부품번호

Parallax Inc, 32 bit Multi-Core, Propeller Multicore Microcontroller Microcontroller, 25 MHz, 16kB ROM, 100-Pin TQFP

RS 제품 번호:: 221-3604
제조사 부품 번호:: P2X8C4M64P
제조업체:: Parallax Inc

Parallax Inc, 32 bit Multi-Core, Propeller Multicore Microcontroller Microcontroller, 25 MHz, 16kB ROM, 100-Pin TQFP

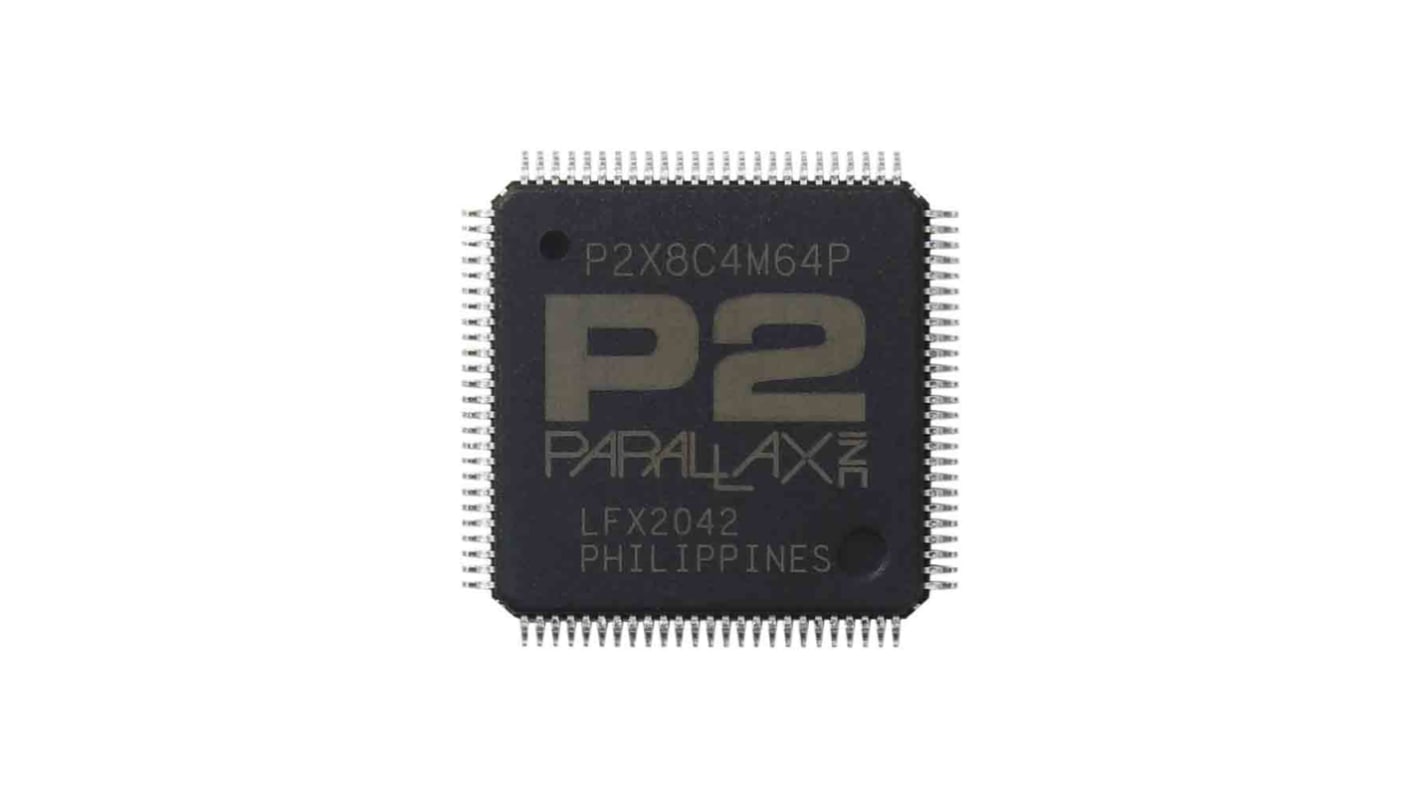

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 tray of 90 units)*

₩2,963,538.00

일시적 품절

2026년 4월 21일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
90 - 360	₩32,928.20	₩2,963,554.92
450 +	₩32,270.20	₩2,904,301.08

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 221-3604
제조사 부품 번호:: P2X8C4M64P
제조업체:: Parallax Inc

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Parallax Inc
	Product Type	Microcontroller
	Series	Propeller Multicore Microcontroller
	Package Type	TQFP
	Mount Type	Surface
	Pin Count	100
	Device Core	Multi-Core
	Data Bus Width	32bit
	Interface Type	FIFO
	Program Memory Size	16kB
	Maximum Clock Frequency	25MHz
	RAM Size	512kB
	Maximum Supply Voltage	3.45V
	Minimum Operating Temperature	-40°C
	DACs	4 x 8 Bit
	Number of Programmable I/Os	64
	Maximum Power Dissipation Pd	2.5W
	Maximum Operating Temperature	125°C
	Height	1.2mm
	Length	16.2mm
	Width	16.2 mm
	Standards/Approvals	RoHS Compliant
	Minimum Supply Voltage	3.15V
	Program Memory Type	ROM
	Number of Timers	65
	ADCs	1 x 4 Bit
	Automotive Standard	AEC-Q100

	모두 선택
	브랜드 Parallax Inc
	Product Type Microcontroller
	Series Propeller Multicore Microcontroller
	Package Type TQFP
	Mount Type Surface
	Pin Count 100
	Device Core Multi-Core
	Data Bus Width 32bit
	Interface Type FIFO
	Program Memory Size 16kB
	Maximum Clock Frequency 25MHz
	RAM Size 512kB
	Maximum Supply Voltage 3.45V
	Minimum Operating Temperature -40°C
	DACs 4 x 8 Bit
	Number of Programmable I/Os 64
	Maximum Power Dissipation Pd 2.5W
	Maximum Operating Temperature 125°C
	Height 1.2mm
	Length 16.2mm
	Width 16.2 mm
	Standards/Approvals RoHS Compliant
	Minimum Supply Voltage 3.15V
	Program Memory Type ROM
	Number of Timers 65
	ADCs 1 x 4 Bit
	Automotive Standard AEC-Q100

Datasheet - P2X8C4M64P

The Parallax Inc “P2” Propeller is a multicore microcontroller containing 8 identical 32-bit processors connected to a common hub. The hub provides a shared RAM, a CORDIC math solver, and housekeeping facilities. Each of the 64 identical smart I/O pins are capable of many autonomous analog and digital functions. The smart I/O pins are accessible by each processor to maximize application flexibility, and are externally powered at 3.3 V in blocks of four to maximize analog performance.

512 KB of contiguous RAM in a 20-bit address space

Six different clock modes, all under software control with glitch-free switching between sources

Operating temperature ranges from -40 to +185 °F

64-bit free-running counter which increments every clock, cleared on reset

Mechanisms for starting, polling, and stopping cogs

Parallax Inc, 32 bit Multi-Core, Propeller Multicore Microcontroller Microcontroller, 25 MHz, 16kB ROM, 100-Pin TQFP
