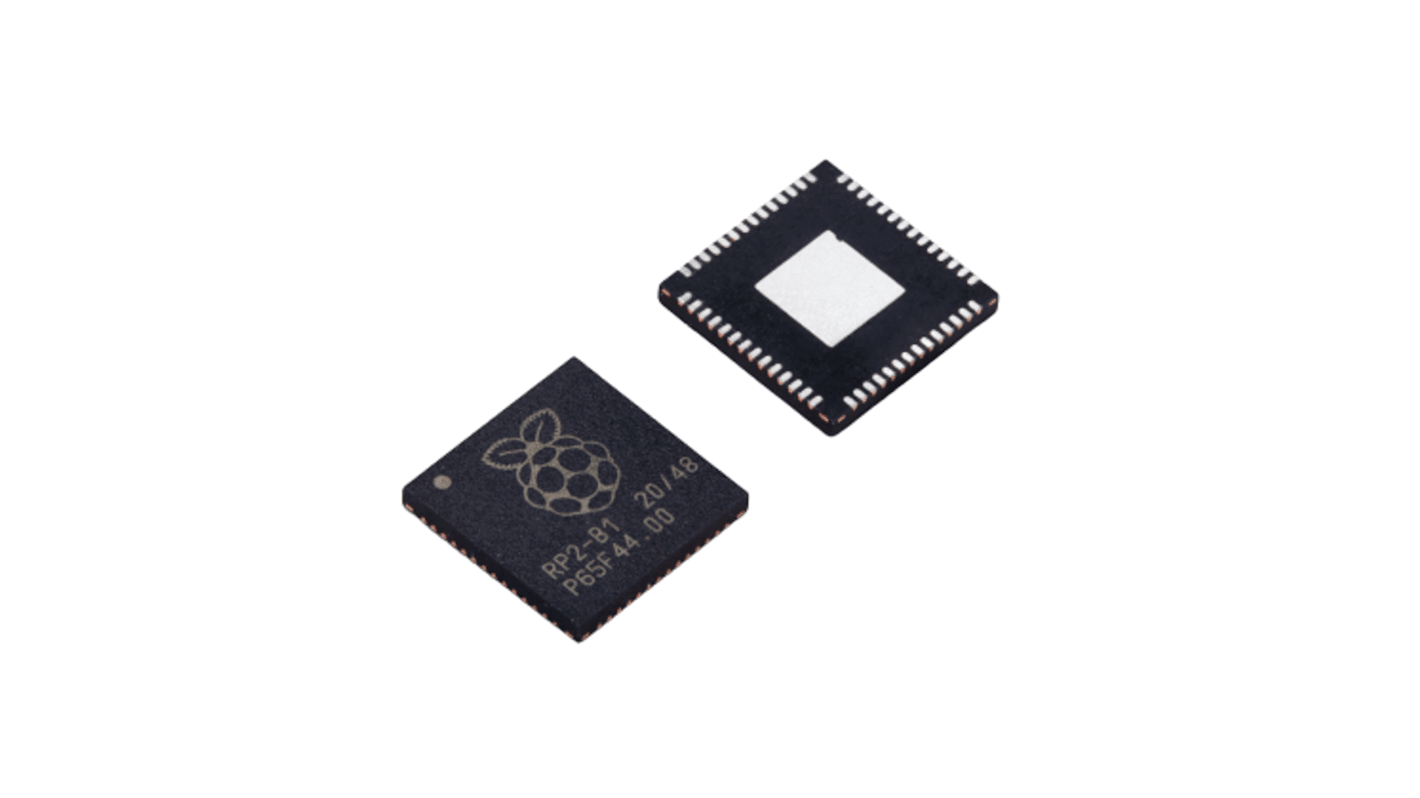

Name: Raspberry Pi RP2040, 32 bit ARM Cortex M0+ Microcontroller, 133 MHz, 16MB FLASH, 56-Pin QFN
Brand: Raspberry Pi
SKU: 221-1609
Price: 1041.52 KRW
Availability: LimitedAvailability

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Raspberry Pi
	Product Type	Microcontroller
	Package Type	QFN
	Mount Type	Surface
	Pin Count	56
	Device Core	ARM Cortex M0+
	Data Bus Width	32bit
	Program Memory Size	16MB
	Maximum Clock Frequency	133MHz
	RAM Size	256kB
	Maximum Supply Voltage	3.3V
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Width	7.75 mm
	Length	7.75mm
	Height	0.9mm
	Number of Programmable I/Os	30
	Minimum Supply Voltage	1.8V
	Automotive Standard	No
	ADCs	4 x 12 Bit
	Program Memory Type	FLASH
	Number of Timers	4
	Instruction Set Architecture	RISC

	모두 선택
	브랜드 Raspberry Pi
	Product Type Microcontroller
	Package Type QFN
	Mount Type Surface
	Pin Count 56
	Device Core ARM Cortex M0+
	Data Bus Width 32bit
	Program Memory Size 16MB
	Maximum Clock Frequency 133MHz
	RAM Size 256kB
	Maximum Supply Voltage 3.3V
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Width 7.75 mm
	Length 7.75mm
	Height 0.9mm
	Number of Programmable I/Os 30
	Minimum Supply Voltage 1.8V
	Automotive Standard No
	ADCs 4 x 12 Bit
	Program Memory Type FLASH
	Number of Timers 4
	Instruction Set Architecture RISC

Datasheet - SC908(13)

COO (Country of Origin):: TW

The Raspberry Pi RP2040 is the debut microcontroller from Raspberry Pi. It brings signature values of high performance, low cost, and ease of use to the microcontroller space. The RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with a variety of low-power modes to support extended-duration operation on battery power.

264kB on chip SRAM in six independent banks

DMA controller

Fully connected AHB crossbar

Interpolator and integer divider peripherals

On chip programmable LDO to generate core voltage

2 on-chip PLLs to generate USB and core clocks

30 GPIO pins, 4 of which can be used as analogue inputs

수량	한팩당	한팩당*
10 - 40	₩1,041.52	₩10,415.20
50 - 90	₩996.40	₩9,964.00
100 +	₩970.08	₩9,700.80

Raspberry Pi RP2040, 32 bit ARM Cortex M0+ Microcontroller, 133 MHz, 16MB FLASH, 56-Pin QFN
