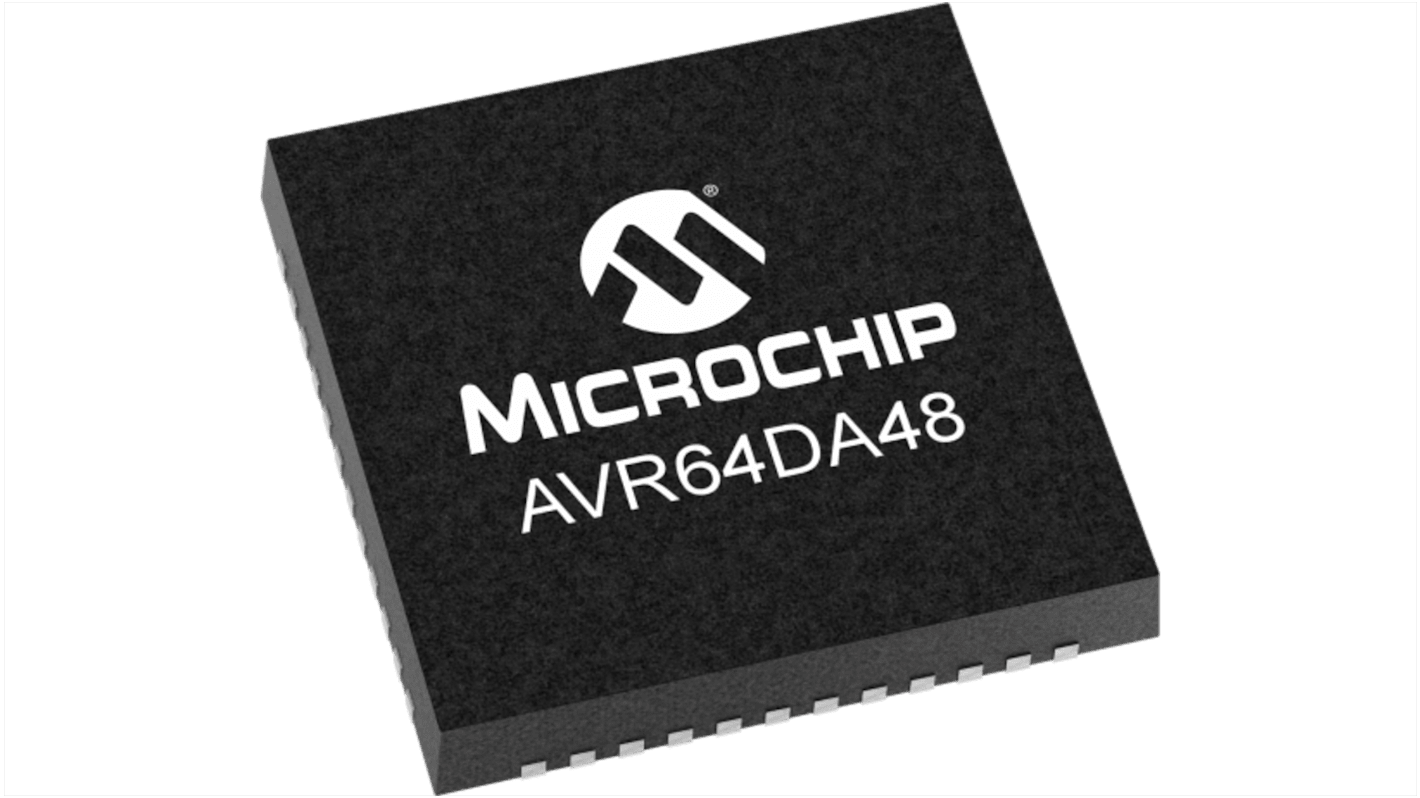

Microchip AVR64DA48-I/PT, 8 bit AVR, AVR64DA48 Microcontroller, 24 MHz, 64kB FLASH, 48-Pin TQFP

RS 제품 번호:: 215-5892
제조사 부품 번호:: AVR64DA48-I/PT
제조업체:: Microchip

Microchip AVR64DA48-I/PT, 8 bit AVR, AVR64DA48 Microcontroller, 24 MHz, 64kB FLASH, 48-Pin TQFP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩13,874.40

재고있음

105 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 - 60	₩2,774.88	₩13,874.40
65 - 120	₩2,718.48	₩13,592.40
125 +	₩2,665.84	₩13,329.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 215-5892
제조사 부품 번호:: AVR64DA48-I/PT
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Series	AVR64DA48
	Product Type	Microcontroller
	Package Type	TQFP
	Mount Type	Surface
	Pin Count	48
	Device Core	AVR
	Data Bus Width	8bit
	Program Memory Size	64kB
	Interface Type	SPI, TWI, UPDI
	Maximum Clock Frequency	24MHz
	RAM Size	8kB
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Analogue Comparators	3
	DACs	1 x 10 Bit
	Number of Programmable I/Os	41
	Maximum Power Dissipation Pd	800mW
	Maximum Operating Temperature	85°C
	Length	7mm
	Width	7 mm
	Height	1mm
	Standards/Approvals	No
	Minimum Supply Voltage	1.8V
	Program Memory Type	FLASH
	Automotive Standard	No
	Instruction Set Architecture	RISC
	ADCs	18 x 12 Bit
	Number of Timers	6

	모두 선택
	브랜드 Microchip
	Series AVR64DA48
	Product Type Microcontroller
	Package Type TQFP
	Mount Type Surface
	Pin Count 48
	Device Core AVR
	Data Bus Width 8bit
	Program Memory Size 64kB
	Interface Type SPI, TWI, UPDI
	Maximum Clock Frequency 24MHz
	RAM Size 8kB
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Analogue Comparators 3
	DACs 1 x 10 Bit
	Number of Programmable I/Os 41
	Maximum Power Dissipation Pd 800mW
	Maximum Operating Temperature 85°C
	Length 7mm
	Width 7 mm
	Height 1mm
	Standards/Approvals No
	Minimum Supply Voltage 1.8V
	Program Memory Type FLASH
	Automotive Standard No
	Instruction Set Architecture RISC
	ADCs 18 x 12 Bit
	Number of Timers 6

Datasheet - AVR64DA48-I/PT

The Microchip AVR64DA48 microcontroller is part of the AVR DA family featuring the AVR processor with hardware multiplier - running at up to 24 MHz and with 64 KB Flash, 8 KB SRAM and 512 bytes of EEPROM in 48-pin packages. The AVR64DA48 will be available in TQFP and VQFN package options. The AVR64DA48 product supports as many as 32 self-capacitance and 256 mutual capacitance touch channels, which makes the AVR DA the perfect choice for human interface applications where multiple capacitive touch keys, sliders, wheels or 2D surface are required.

Peripheral Touch Controller (PTC)

12-bit Differential Analog-to-Digital Converter (ADC)

10-bit Digital-to-Analog Converter (DAC) with Output Buffer

Zero-Cross Detector (ZCD)

Microchip AVR64DA48-I/PT, 8 bit AVR, AVR64DA48 Microcontroller, 24 MHz, 64kB FLASH, 48-Pin TQFP
