Renesas Electronics R5F566TEADFM#30, 32 bit RXv3, RX66T Microcontroller, 160 MHz, 512kB FLASH, 64-Pin LFQFP
- RS 제품 번호:
- 215-0984
- 제조사 부품 번호:
- R5F566TEADFM#30
- 제조업체:
- Renesas Electronics

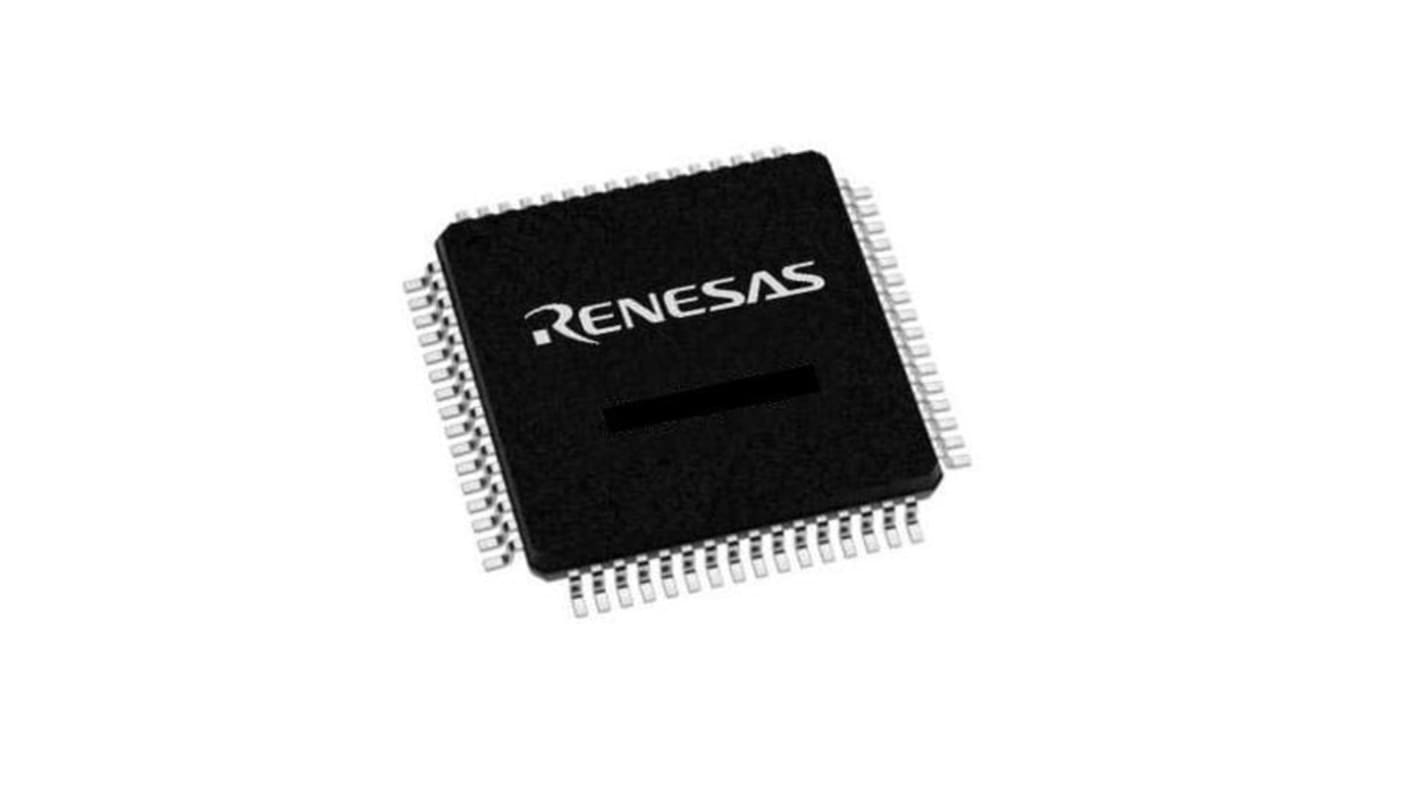

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 215-0984
- 제조사 부품 번호:
- R5F566TEADFM#30
- 제조업체:
- Renesas Electronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Renesas Electronics | |
| Data Bus Width | 32 bit | |
| Device Core | RXv3 | |
| Series | RX66T | |
| Product Type | Microcontroller | |
| Maximum Clock Frequency | 160 MHz | |
| Program Memory Size | 512 kB | |
| Program Memory Type | FLASH | |
| Pin Count | 64 | |
| Package Type | LFQFP | |
| ADCs | 15 x 12 bit | |
| Analogue Comparators | 6 | |
| Automotive Standard | No | |
| DACs | 2 x 12 Bit | |
| Height | 1.7 mm | |
| Length | 10 mm | |
| Maximum Operating Temperature | 85 °C | |
| Maximum Supply Voltage | 5.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Supply Voltage | 2.7 V | |
| Mount Type | Surface | |
| Number of Programmable I/Os | 42 | |
| Number of Timers | 3 | |
| RAM Size | 64 kB | |
| Standards/Approvals | No | |
| Width | 10 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Renesas Electronics | ||
Data Bus Width 32 bit | ||
Device Core RXv3 | ||
Series RX66T | ||
Product Type Microcontroller | ||
Maximum Clock Frequency 160 MHz | ||
Program Memory Size 512 kB | ||
Program Memory Type FLASH | ||
Pin Count 64 | ||
Package Type LFQFP | ||
ADCs 15 x 12 bit | ||
Analogue Comparators 6 | ||
Automotive Standard No | ||
DACs 2 x 12 Bit | ||
Height 1.7 mm | ||
Length 10 mm | ||
Maximum Operating Temperature 85 °C | ||
Maximum Supply Voltage 5.5 V | ||
Minimum Operating Temperature -40 °C | ||
Minimum Supply Voltage 2.7 V | ||
Mount Type Surface | ||
Number of Programmable I/Os 42 | ||
Number of Timers 3 | ||
RAM Size 64 kB | ||
Standards/Approvals No | ||
Width 10 mm | ||
The Renesas Electronics RX66T Group MCUs.
32-bit RXv3 CPU core
Low-power design and architecture
On-chip code flash memory
On-chip data flash memory
On-chip SRAM, no wait states
Up to 31 extended-function timers
