STMicroelectronics, 16 bit ARM Cortex A7, ARM Cortex M4, STM32MP157F Microcontroller, 800 MHz, 128kB ROM, 361-Pin TFBGA

RS 제품 번호:: 201-4478
제조사 부품 번호:: STM32MP157FAC1
제조업체:: STMicroelectronics

STMicroelectronics, 16 bit ARM Cortex A7, ARM Cortex M4, STM32MP157F Microcontroller, 800 MHz, 128kB ROM, 361-Pin TFBGA

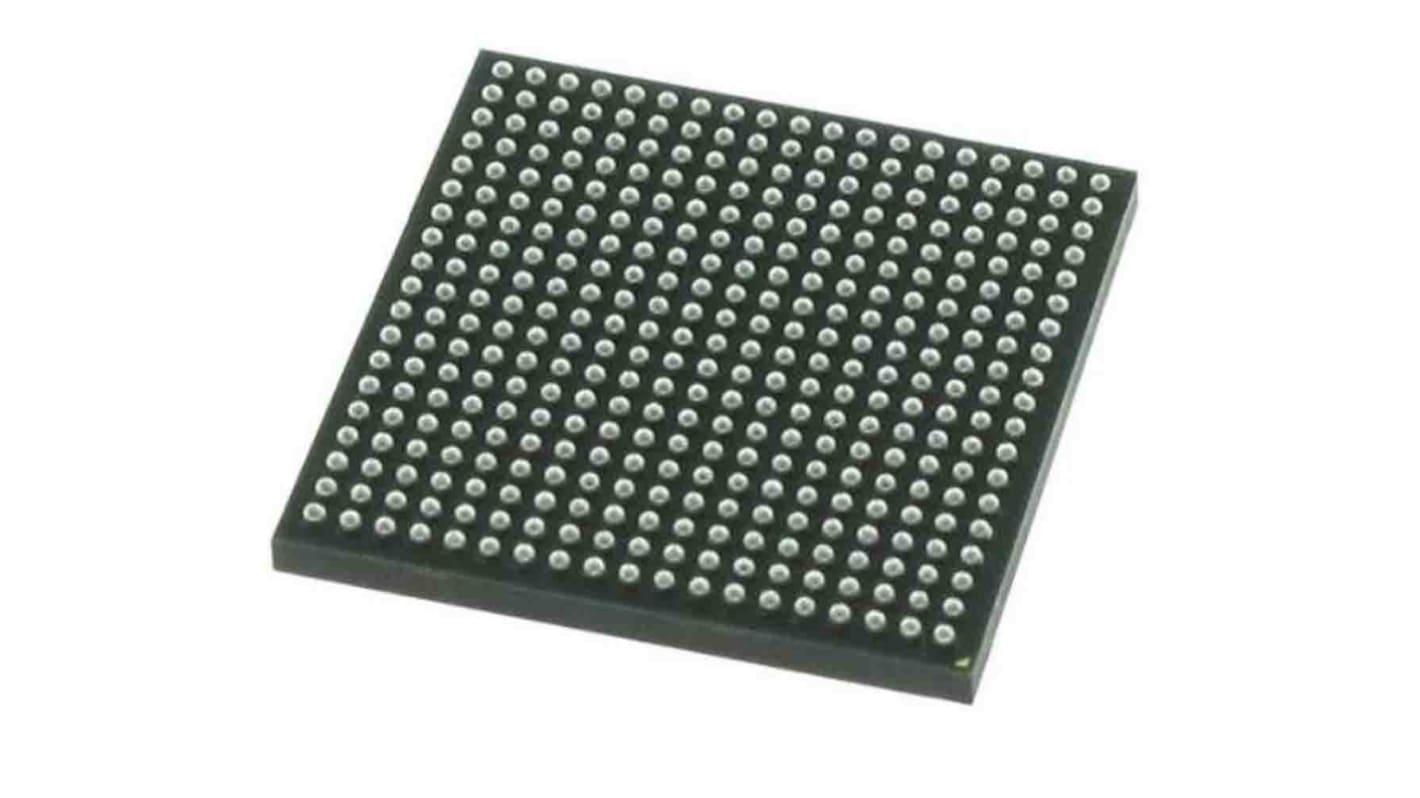

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

죄송합니다. 언제 재입고될지 모릅니다.

RS 제품 번호:: 201-4478
제조사 부품 번호:: STM32MP157FAC1
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Series	STM32MP157F
	Product Type	Microcontroller
	Package Type	TFBGA
	Mount Type	Surface
	Pin Count	361
	Device Core	ARM Cortex A7, ARM Cortex M4
	Data Bus Width	16bit
	Program Memory Size	128kB
	Maximum Clock Frequency	800MHz
	RAM Size	708kB
	Maximum Supply Voltage	3.6V
	Standards/Approvals	FBI
	Maximum Expanded Memory Size	1GB
	Width	12mm
	Length	12mm
	Height	1.2mm
	Number of Programmable I/Os	176
	DACs	2 x 12 Bit
	Minimum Supply Voltage	1.71V
	Number of Timers	29
	Instruction Set Architecture	RISC
	Automotive Standard	No
	ADCs	2 x 16 Bit
	Program Memory Type	ROM

	모두 선택
	브랜드 STMicroelectronics
	Series STM32MP157F
	Product Type Microcontroller
	Package Type TFBGA
	Mount Type Surface
	Pin Count 361
	Device Core ARM Cortex A7, ARM Cortex M4
	Data Bus Width 16bit
	Program Memory Size 128kB
	Maximum Clock Frequency 800MHz
	RAM Size 708kB
	Maximum Supply Voltage 3.6V
	Standards/Approvals FBI
	Maximum Expanded Memory Size 1GB
	Width 12mm
	Length 12mm
	Height 1.2mm
	Number of Programmable I/Os 176
	DACs 2 x 12 Bit
	Minimum Supply Voltage 1.71V
	Number of Timers 29
	Instruction Set Architecture RISC
	Automotive Standard No
	ADCs 2 x 16 Bit
	Program Memory Type ROM

Datasheet - STM32MP157FAC1

The STMicroelectronics STM32MP157C/F devices are based on the high-performance dual-core Arm Cortex-A7 32-bit RISC core operating at up to 800 MHz. It provides an external SDRAM Interface supporting external memories up to 8-Gbit density (1 Gbyte), 16 or 32-bit LPDDR2/LPDDR3 or DDR3/DDR3L up to 533 MHz.

3 DMA controllers to unload the CPU

Low-power consumption

DDR memory retention in Standby mode

STMicroelectronics, 16 bit ARM Cortex A7, ARM Cortex M4, STM32MP157F Microcontroller, 800 MHz, 128kB ROM, 361-Pin TFBGA
