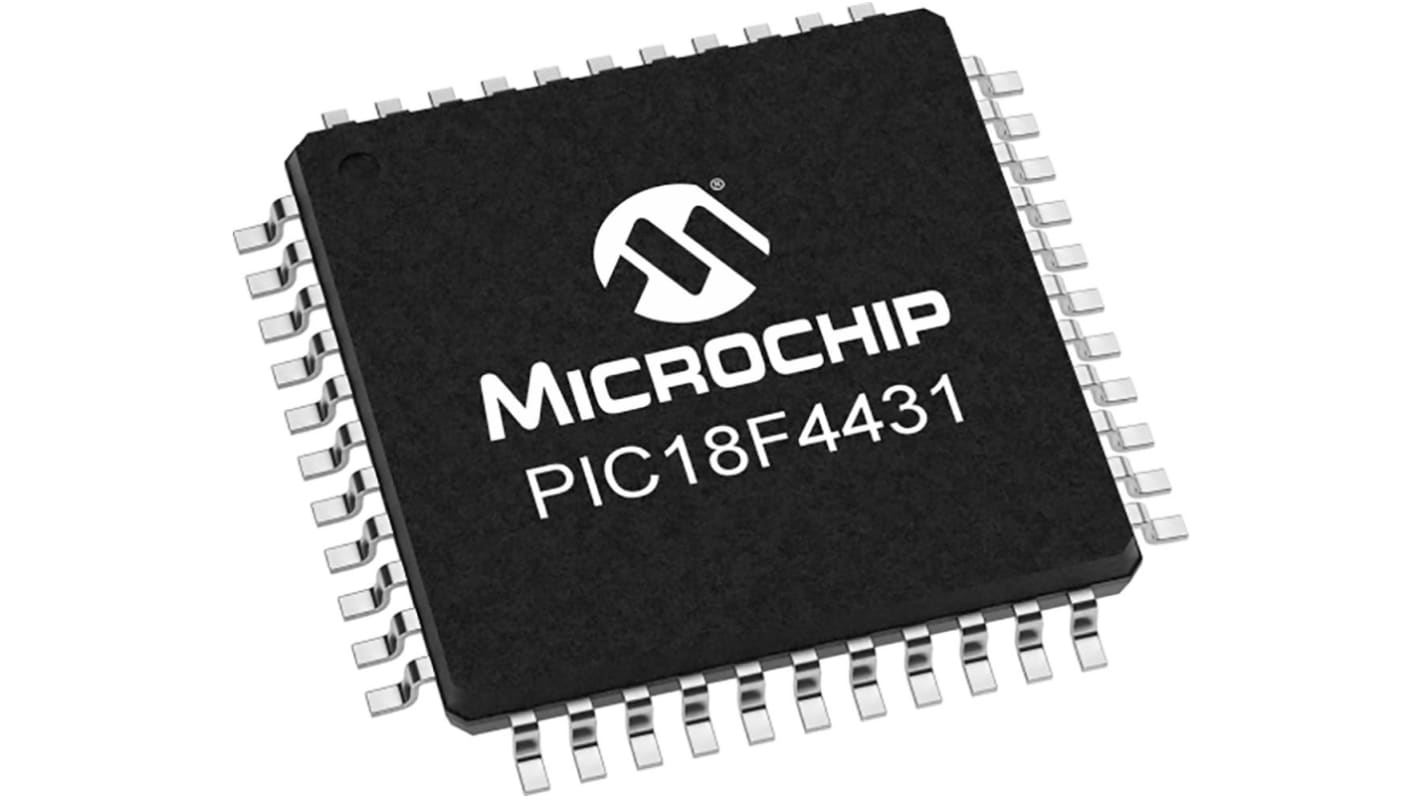

Microchip PIC18F4431-I/PT, 8 bit PIC, PIC18F4431 Microcontroller, 20 MHz, 8kB FLASH, 44-Pin TQFP
- RS 제품 번호:
- 199-5374
- 제조사 부품 번호:
- PIC18F4431-I/PT
- 제조업체:
- Microchip
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩11,881.60
일시적 품절
- 109 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 39 | ₩11,881.60 |
| 40 - 79 | ₩11,656.00 |
| 80 + | ₩11,411.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 199-5374
- 제조사 부품 번호:
- PIC18F4431-I/PT
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Series | PIC18F4431 | |
| Product Type | Microcontroller | |
| Package Type | TQFP | |
| Mount Type | Surface | |
| Pin Count | 44 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 8kB | |
| Maximum Clock Frequency | 20MHz | |
| RAM Size | 768bit | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Number of Programmable I/Os | 36 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Width | 10 mm | |
| Height | 1.05mm | |
| Length | 10mm | |
| Minimum Supply Voltage | 2V | |
| Instruction Set Architecture | RISC | |
| Number of Timers | 1 | |
| ADCs | 9 x 10 Bit | |
| Program Memory Type | FLASH | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Series PIC18F4431 | ||
Product Type Microcontroller | ||
Package Type TQFP | ||
Mount Type Surface | ||
Pin Count 44 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 8kB | ||
Maximum Clock Frequency 20MHz | ||
RAM Size 768bit | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Number of Programmable I/Os 36 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Width 10 mm | ||
Height 1.05mm | ||
Length 10mm | ||
Minimum Supply Voltage 2V | ||
Instruction Set Architecture RISC | ||
Number of Timers 1 | ||
ADCs 9 x 10 Bit | ||
Program Memory Type FLASH | ||
Automotive Standard No | ||
The Microchip PIC18F4431 enhanced flash microcontroller has nanoWatt technology with high-performance PWM and A/D converter. It operates on 4.2V to 5.5V voltage range. This microcontroller has 16KBytes flash program memory, 768Bytes SRAM and 256 EEPROM.
100,000 Erase/Write Cycle Enhanced Flash Program Memory, Typical
1,000,000 Erase/Write Cycle Data EEPROM Memory, Typical
Flash/Data EEPROM Retention of 100 Years
Self-Programmable under Software Control
Priority Levels for Interrupts
8 x 8 Single-Cycle Hardware Multiplier
Extended Watchdog Timer (WDT) Programmable period from 41 ms to 131s
Single-Supply In-Circuit Serial Programming™ (ICSP™) via Two Pins
Auto-Conversion Capability
4-Word FIFO with Selectable Interrupt Frequency
Selectable External Conversion Triggers
Programmable Acquisition Time
Temperature range between -40°C and +85°C
TQFP (Thin Quad Flatpack) package
