STM32F103VFT6 | STMicroelectronics, 32bit ARM Cortex M3, STM32F1 Microcontroller, 72MHz, 768 kB Flash, 100-Pin LQFP | RS

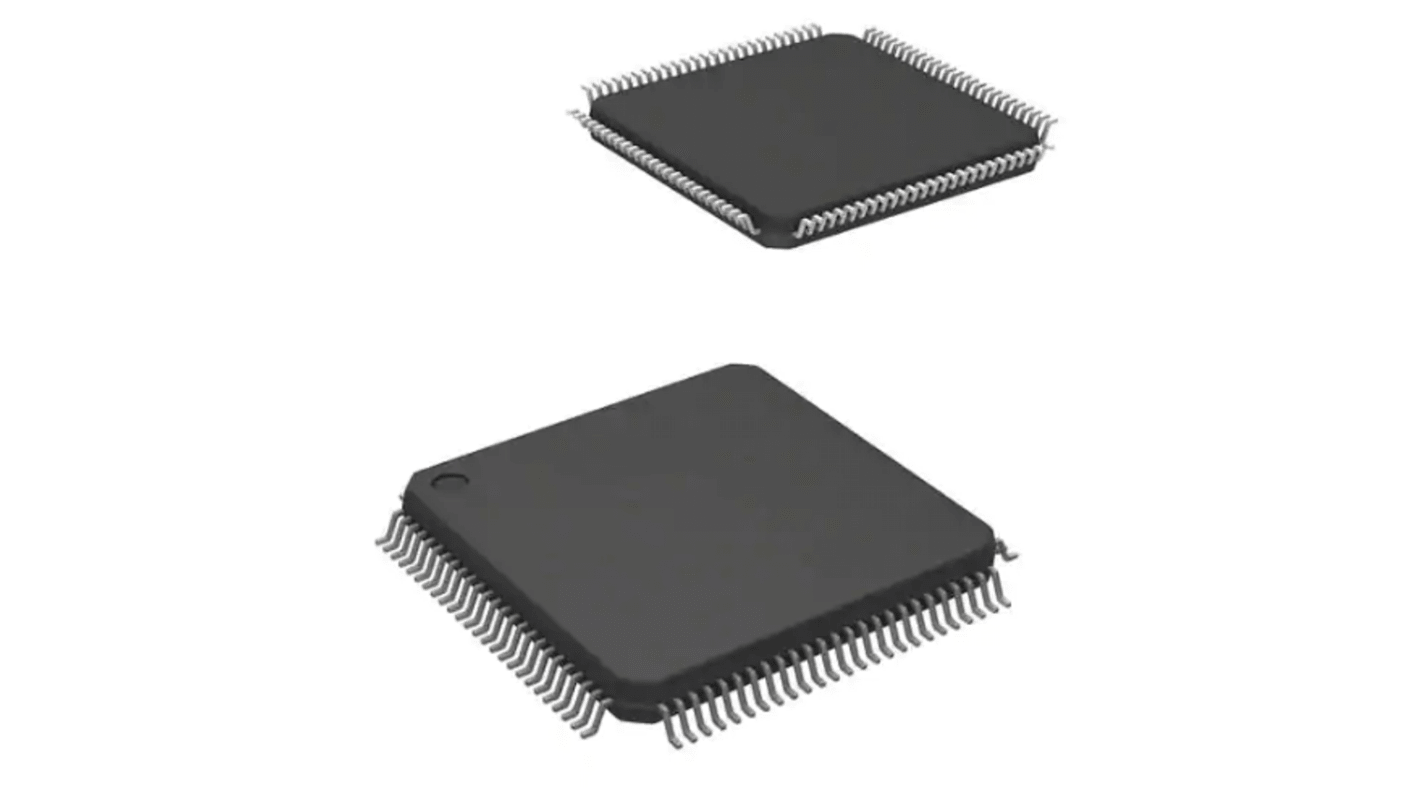

STMicroelectronics, 32bit ARM Cortex M3, STM32F1 Microcontroller, 72MHz, 768 kB Flash, 100-Pin LQFP

RS 제품 번호:: 177-7196
제조사 부품 번호:: STM32F103VFT6
제조업체:: STMicroelectronics

STMicroelectronics, 32bit ARM Cortex M3, STM32F1 Microcontroller, 72MHz, 768 kB Flash, 100-Pin LQFP

대량 구매 할인 기용 가능

가격 개당가격(90개가 1트레이안에)**

₩15,109.56

360 재고있음 5-9영업일내 홍콩 발송*

* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.

재고 확인하기

수량	한팩당	Per Tray**
90 - 360	₩15,109.56	₩1,359,911.16
450 +	₩14,808.76	₩1,332,720.72

** 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 177-7196
제조사 부품 번호:: STM32F103VFT6
제조업체:: STMicroelectronics

STM32F103 Series Microcontrollers, STMicroelectronics

STMicroelectronics devices STM32F103 Cortex-M3 core with 72 MHz CPU speed and up to 1 MB of Flash. Comprising of motor control peripherals plus CAN and USB full speed interfaces. The STM32 series ARM Cortex-M3 32 bit Flash microcontroller operates low power, low voltage and combines great performance with real time capabilities. In a range of package types available for your embedded application. The MCU architecture has an easy to use STM32 platform and will work in applications including motor drives; PC and gaming; HVAC and Industrial applications.

32-bit RISC
Pin to pin software compatible
SRAM up to 96 Kb
Flash up to 1MB
Power Supply: 2 V to 3.6 V
Temperature ranges: -40 to +85 °C or -40 to +105 °C

The STMicroelectronics STM32F103xx medium-density performance line family incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces up to two I2Cs and SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN. It operate from a 2.0 to 3.6 V power supply. They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.

2 watchdog timers
CRC calculation unit, 96-bit unique ID
12-channel DMA controller
Single-cycle multiplication and hardware division

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

STM32F1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics

The STM32 family of 32-bit Flash Microcontrollers is based on the breakthrough ARM Cortex™-M3 core - a core specifically developed for embedded applications. The STM32 family benefits from the Cortex™-M3 architectural enhancements including the Thumb-2 instruction set to deliver improved performance with better code density, significantly faster response to interrupts, all combined with industry leading power consumption.

Benefits
• Excellent real-time behaviour
• Oustanding power efficiency
• Superior and innovative peripherals
• Maximum integration
• Cross family pin-to-pin, peripheral and software compatibility

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Family Name	STM32F1
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	ARM Cortex M3
	Data Bus Width	32bit
	Program Memory Size	768 kB
	Maximum Frequency	72MHz
	RAM Size	96 kB
	USB Channels	1
	Number of PWM Units	12 x 16 bit
	Number of SPI Channels	3
	Number of I2C Channels	2
	Number of CAN Channels	1
	Typical Operating Supply Voltage	2 → 3.6 V
	Number of USART Channels	3
	Number of UART Channels	2
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	RISC
	Minimum Operating Temperature	-40 °C
	Program Memory Type	Flash
	Number of PCI Channels	0
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	3
	Length	14.2mm
	Number of Ethernet Channels	0
	Number of LIN Channels	0
	Height	1.45mm
	Width	14.2mm
	Dimensions	14.2 x 14.2 x 1.45mm
	ADCs	16 x 12 bit
	Pulse Width Modulation	2 (2 x 16 bit), 2 (4 x 16 bit), 4 (1 x 16 bit), 4 (4 x 16 bit)

	모두 선택
	브랜드 STMicroelectronics
	Family Name STM32F1
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 100
	Device Core ARM Cortex M3
	Data Bus Width 32bit
	Program Memory Size 768 kB
	Maximum Frequency 72MHz
	RAM Size 96 kB
	USB Channels 1
	Number of PWM Units 12 x 16 bit
	Number of SPI Channels 3
	Number of I2C Channels 2
	Number of CAN Channels 1
	Typical Operating Supply Voltage 2 → 3.6 V
	Number of USART Channels 3
	Number of UART Channels 2
	Maximum Number of Ethernet Channels 0
	Instruction Set Architecture RISC
	Minimum Operating Temperature -40 °C
	Program Memory Type Flash
	Number of PCI Channels 0
	Maximum Operating Temperature +85 °C
	Number of ADC Units 3
	Length 14.2mm
	Number of Ethernet Channels 0
	Number of LIN Channels 0
	Height 1.45mm
	Width 14.2mm
	Dimensions 14.2 x 14.2 x 1.45mm
	ADCs 16 x 12 bit
	Pulse Width Modulation 2 (2 x 16 bit), 2 (4 x 16 bit), 4 (1 x 16 bit), 4 (4 x 16 bit)
