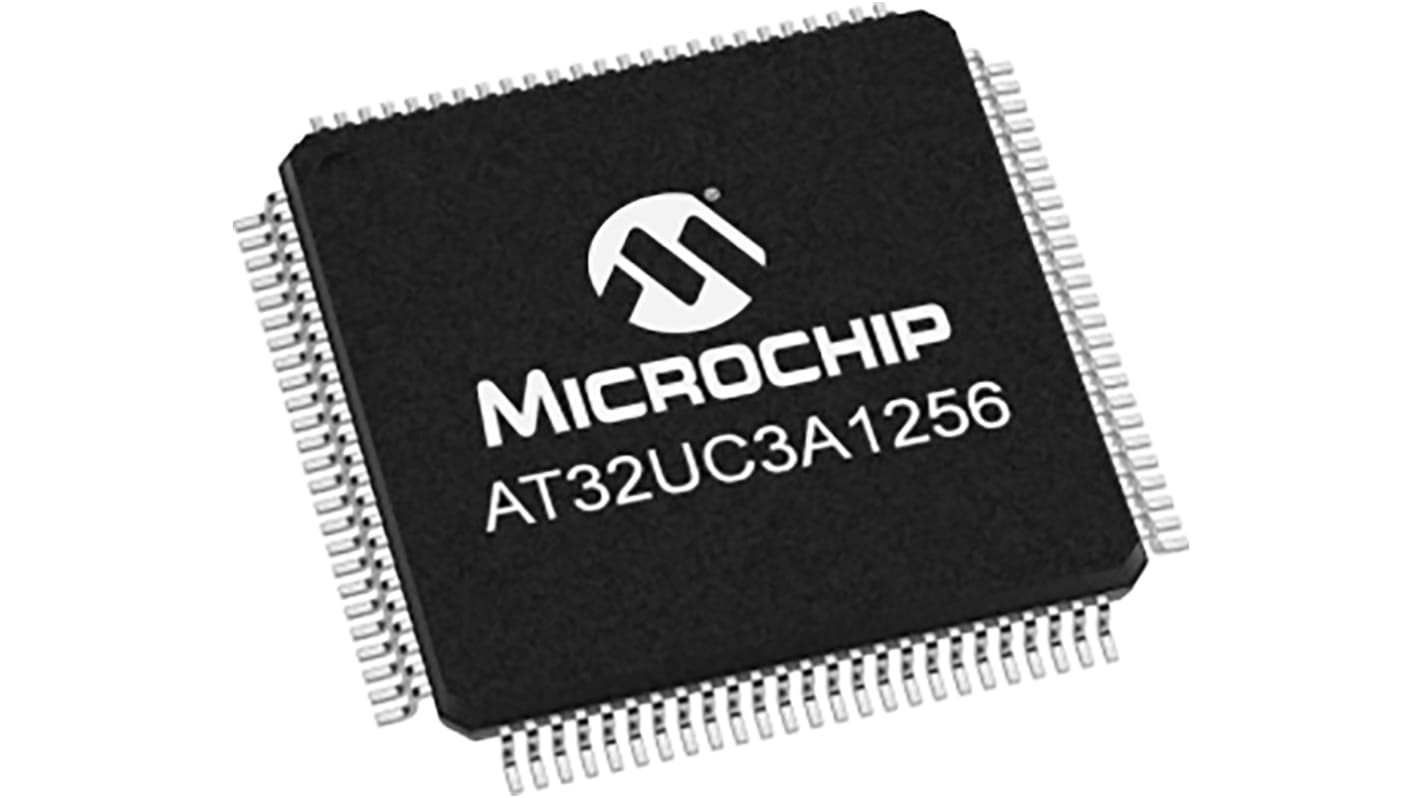

Microchip, 32bit AVR, AT32 Microcontroller, 66MHz, 256 kB Flash, 100-Pin TQFP

모든 Microcontrollers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tray of 90 units)*

₩1,523,984.40

Add to Basket
수량 선택 또는 입력
단종되는 중
  • 최종적인 90 개 unit(s)이 배송 준비 됨
수량
한팩당
Per Tray*
90 - 360₩16,933.16₩1,523,984.40
450 +₩16,594.76₩1,493,511.48

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
177-3391
제조사 부품 번호:
AT32UC3A1256-AUT
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Family Name

AT32

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

100

Device Core

AVR

Data Bus Width

32bit

Program Memory Size

256 kB

Maximum Frequency

66MHz

RAM Size

64 kB

USB Channels

1

Number of PWM Units

1 x 16 bit

Number of SPI Channels

6

Typical Operating Supply Voltage

3.3 V

Number of USART Channels

4

Number of I2C Channels

1

Maximum Operating Temperature

+85 °C

Program Memory Type

Flash

Number of Ethernet Channels

1

Height

1.05mm

Data Rate

100Mbit/s

Width

14mm

Dimensions

14 x 14 x 1.05mm

Pulse Width Modulation

1 (7 x 16 bit)

Automotive Standard

AEC-Q100

Number of ADC Units

1

Length

14mm

ADCs

8 x 10 bit

Instruction Set Architecture

RISC

Minimum Operating Temperature

-40 °C

Maximum Number of Ethernet Channels

1

The high-performance, low-power 32-bit AVR RISC-based microcontroller combines 256KB flash memory, 32KB SRAM, full-speed (12MBps) USB Mini-host + device, and I2S. The MCU achieves 83 Dhrystone MIPS (DMIPS) at 60MHz and consumes only 23mA at 3.3 volts.

High Performance, Low Power 32-Bit Atmel ® AVR®Microcontroller
Compact Single-cycle RISC Instruction Set Including DSP Instruction Set
Read-Modify-Write Instructions and Atomic Bit Manipulation
Performing up to 1.39 DMIPS /MHz
Up to 83 DMIPS Running at 60MHz from Flash
Up to 46 DMIPS Running at 30MHz from Flash
MPU
