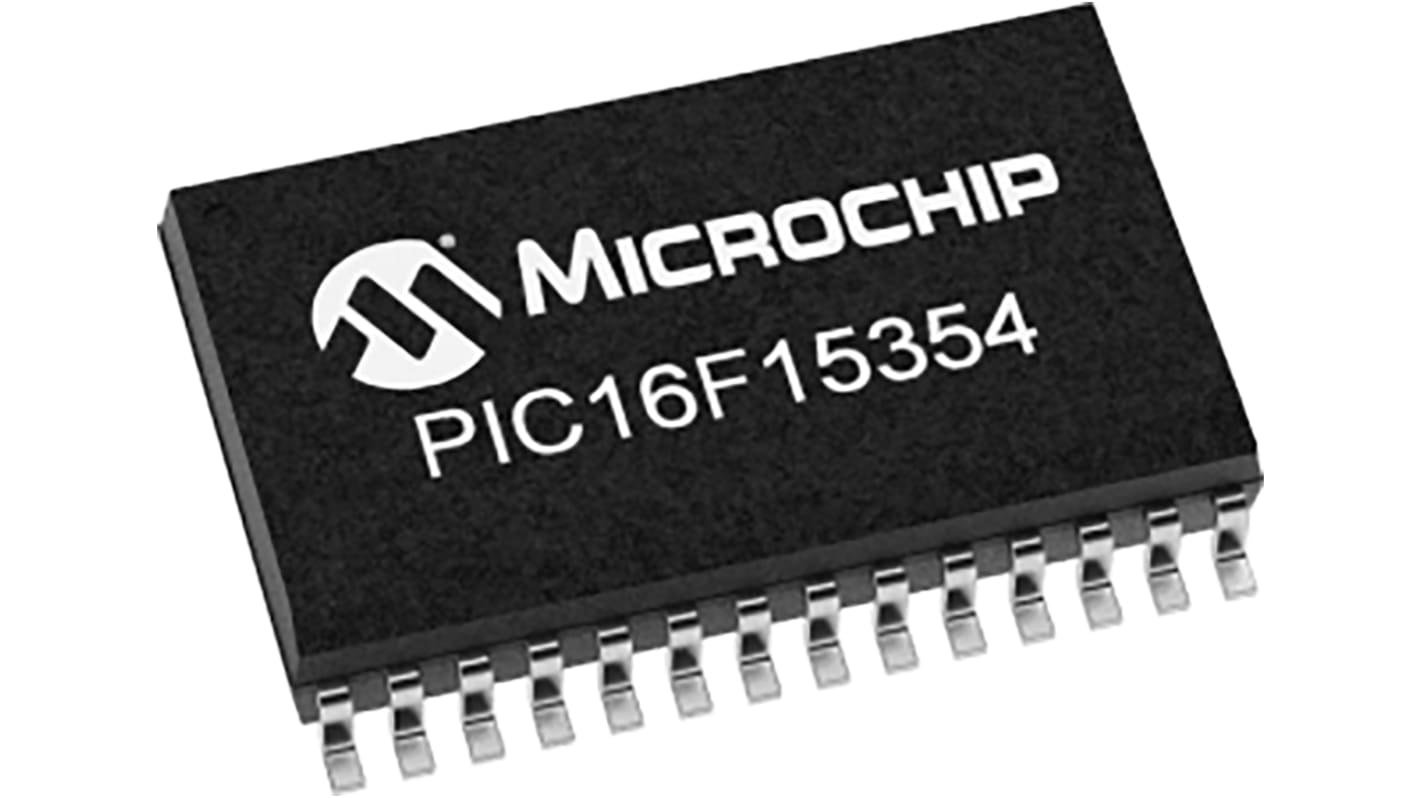

Microchip, 8 bit PIC, PIC16F15354 Microcontroller, 32 MHz, 7kB FLASH, 28-Pin SOIC

RS 제품 번호:: 177-2687
제조사 부품 번호:: PIC16F15354-I/SO
제조업체:: Microchip

Microchip, 8 bit PIC, PIC16F15354 Microcontroller, 32 MHz, 7kB FLASH, 28-Pin SOIC

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 pack of 10 units)*

₩19,232.40

재고있음

280 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
10 +	₩1,923.24	₩19,232.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 177-2687
제조사 부품 번호:: PIC16F15354-I/SO
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Microcontroller
	Series	PIC16F15354
	Package Type	SOIC
	Mount Type	Surface
	Pin Count	28
	Device Core	PIC
	Data Bus Width	8bit
	Interface Type	SPI, I2C, EUSART
	Program Memory Size	7kB
	Maximum Clock Frequency	32MHz
	RAM Size	512bit
	Maximum Supply Voltage	5.5V
	Maximum Power Dissipation Pd	800mW
	Analogue Comparators	2
	Minimum Operating Temperature	-40°C
	Number of Programmable I/Os	25
	DACs	1 x 5 Bit
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Width	7.5 mm
	Length	17.9mm
	Height	2.35mm
	Minimum Supply Voltage	2.3V
	ADCs	24 x 10 Bit
	Automotive Standard	AEC-Q100
	Number of Timers	2
	Instruction Set Architecture	RISC
	Program Memory Type	FLASH

	모두 선택
	브랜드 Microchip
	Product Type Microcontroller
	Series PIC16F15354
	Package Type SOIC
	Mount Type Surface
	Pin Count 28
	Device Core PIC
	Data Bus Width 8bit
	Interface Type SPI, I2C, EUSART
	Program Memory Size 7kB
	Maximum Clock Frequency 32MHz
	RAM Size 512bit
	Maximum Supply Voltage 5.5V
	Maximum Power Dissipation Pd 800mW
	Analogue Comparators 2
	Minimum Operating Temperature -40°C
	Number of Programmable I/Os 25
	DACs 1 x 5 Bit
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Width 7.5 mm
	Length 17.9mm
	Height 2.35mm
	Minimum Supply Voltage 2.3V
	ADCs 24 x 10 Bit
	Automotive Standard AEC-Q100
	Number of Timers 2
	Instruction Set Architecture RISC
	Program Memory Type FLASH

Datasheet

COO (Country of Origin):: TH

PIC16(L)F153XX 8-bit product family feature essential peripherals like Intelligent Analog, Core Independent Peripherals (CIPs) and communication combined with eXtreme Low-Power (XLP) for a wide range of low-power applications.

Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

Flash Program Memory with self read/write capability

eXtreme Low Power (XLP)

IDLE and DOZE low power modes

Peripheral Module Disable (PMD)

Peripheral Pin Select (PPS)

4x 10-bit PWMs

2x Capture, Compare, PWM (CCP)

Complementary Waveform Generator (CWG)

Numerically Controlled Oscillator (NCO)

4x Configurable Logic Controller (CLC)

24 Channel 10-bit ADC with Voltage Reference

5-bit Digital to Analog Converter (DAC)

2x Comparators

1x 8-bit Timers (TMR0/TMR2)

2x 16-bit Timer (TMR1)

Window Watchdog Timer (WWDT)

Enhanced Power-On/Off-Reset

Low-Power Brown-Out Reset (LPBOR)

Programmable Brown-Out Reset (BOR)

In Circuit Serial Programming (ICSP)

PIC16LF15355 (1.8V – 3.6V)

PIC16F15355 (2.3V – 5.5V)
