Microchip PIC16F15345-I/SS, 8 bit PIC, PIC16F15345 Microcontroller, 32 MHz, 14kB FLASH, 20-Pin SSOP

RS 제품 번호:: 177-2657
제조사 부품 번호:: PIC16F15345-I/SS
제조업체:: Microchip

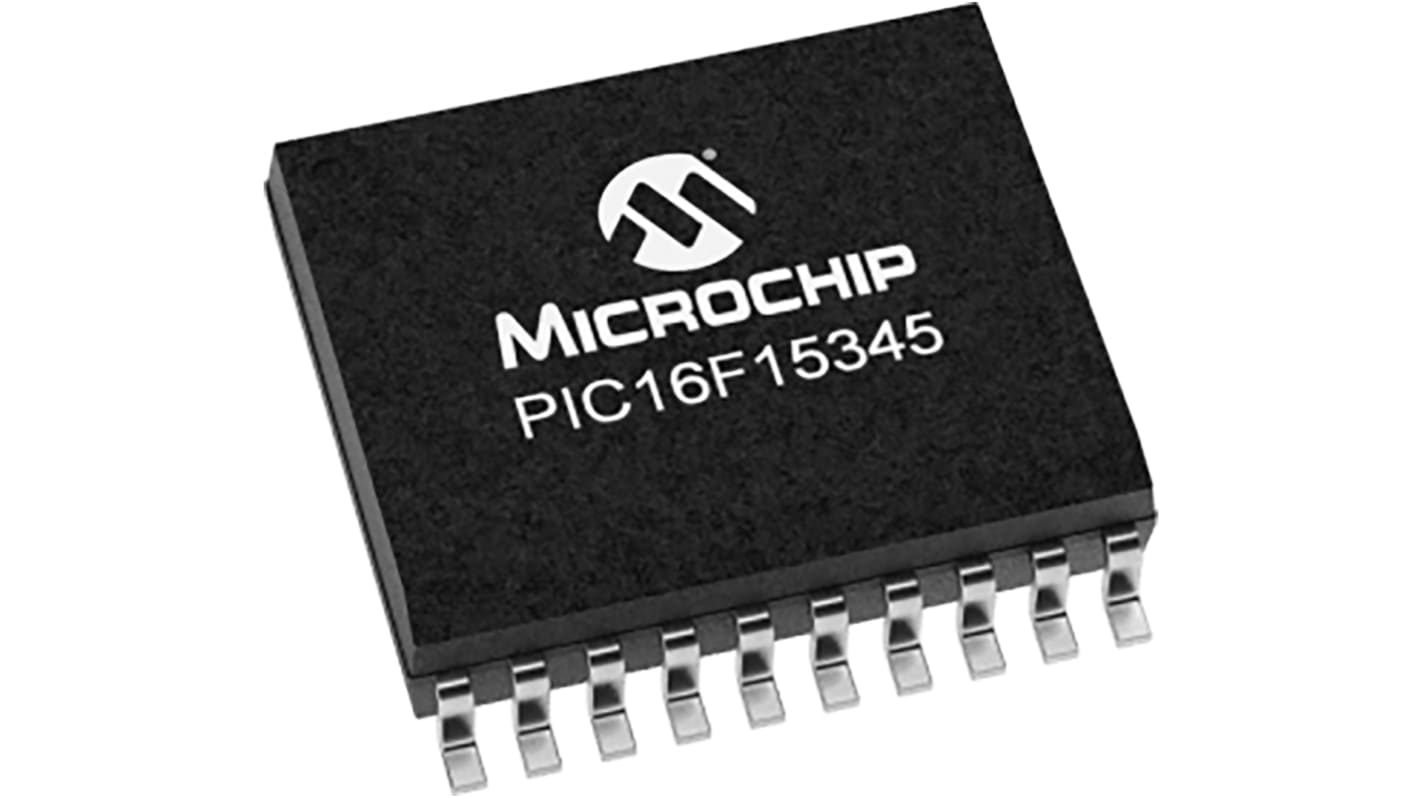

Microchip PIC16F15345-I/SS, 8 bit PIC, PIC16F15345 Microcontroller, 32 MHz, 14kB FLASH, 20-Pin SSOP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 10 units)*

₩17,183.20

마지막 RS 재고

최종적인 170 개 unit(s)이 배송 준비 됨

수량	한팩당	한팩당*
10 - 10	₩1,718.32	₩17,183.20
20 +	₩1,692.00	₩16,920.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 177-2657
제조사 부품 번호:: PIC16F15345-I/SS
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Series	PIC16F15345
	Product Type	Microcontroller
	Package Type	SSOP
	Mount Type	Surface
	Pin Count	20
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	14kB
	Maximum Clock Frequency	32MHz
	RAM Size	1kB
	Maximum Supply Voltage	5.5V
	Maximum Power Dissipation Pd	800mW
	Minimum Operating Temperature	-40°C
	DACs	1 x 5 Bit
	Number of Programmable I/Os	18
	Analogue Comparators	2
	Maximum Operating Temperature	85°C
	Width	5.6 mm
	Standards/Approvals	No
	Height	1.85mm
	Length	7.5mm
	Minimum Supply Voltage	2.3V
	Number of Timers	2
	Automotive Standard	AEC-Q100
	ADCs	17 x 10 Bit
	Program Memory Type	FLASH
	Instruction Set Architecture	RISC

	모두 선택
	브랜드 Microchip
	Series PIC16F15345
	Product Type Microcontroller
	Package Type SSOP
	Mount Type Surface
	Pin Count 20
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 14kB
	Maximum Clock Frequency 32MHz
	RAM Size 1kB
	Maximum Supply Voltage 5.5V
	Maximum Power Dissipation Pd 800mW
	Minimum Operating Temperature -40°C
	DACs 1 x 5 Bit
	Number of Programmable I/Os 18
	Analogue Comparators 2
	Maximum Operating Temperature 85°C
	Width 5.6 mm
	Standards/Approvals No
	Height 1.85mm
	Length 7.5mm
	Minimum Supply Voltage 2.3V
	Number of Timers 2
	Automotive Standard AEC-Q100
	ADCs 17 x 10 Bit
	Program Memory Type FLASH
	Instruction Set Architecture RISC

Datasheet

PIC16(L)F153XX 8-bit product family feature essential peripherals like Intelligent Analog, Core Independent Peripherals (CIPs) and communication combined with eXtreme Low-Power (XLP) for a wide range of low-power applications.

Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

Flash Program Memory with self read/write capability

eXtreme Low Power (XLP)

IDLE and DOZE low power modes

Peripheral Module Disable (PMD)

Peripheral Pin Select (PPS)

4x 10-bit PWMs

2x Capture, Compare, PWM (CCP)

Complementary Waveform Generator (CWG)

Numerically Controlled Oscillator (NCO)

4x Configurable Logic Controller (CLC)

24 Channel 10-bit ADC with Voltage Reference

5-bit Digital to Analog Converter (DAC)

2x Comparators

1x 8-bit Timers (TMR0/TMR2)

2x 16-bit Timer (TMR1)

Window Watchdog Timer (WWDT)

Enhanced Power-On/Off-Reset

Low-Power Brown-Out Reset (LPBOR)

Programmable Brown-Out Reset (BOR)

In Circuit Serial Programming (ICSP)

PIC16LF15355 (1.8V – 3.6V)

PIC16F15355 (2.3V – 5.5V)

Microchip PIC16F15345-I/SS, 8 bit PIC, PIC16F15345 Microcontroller, 32 MHz, 14kB FLASH, 20-Pin SSOP
